Distech Controls ECL/ECB-103 Series User Manual

Controller Installation and Maintenance Tasks with an Allure EC-Smart-Vue Sensor
Network Guide 105

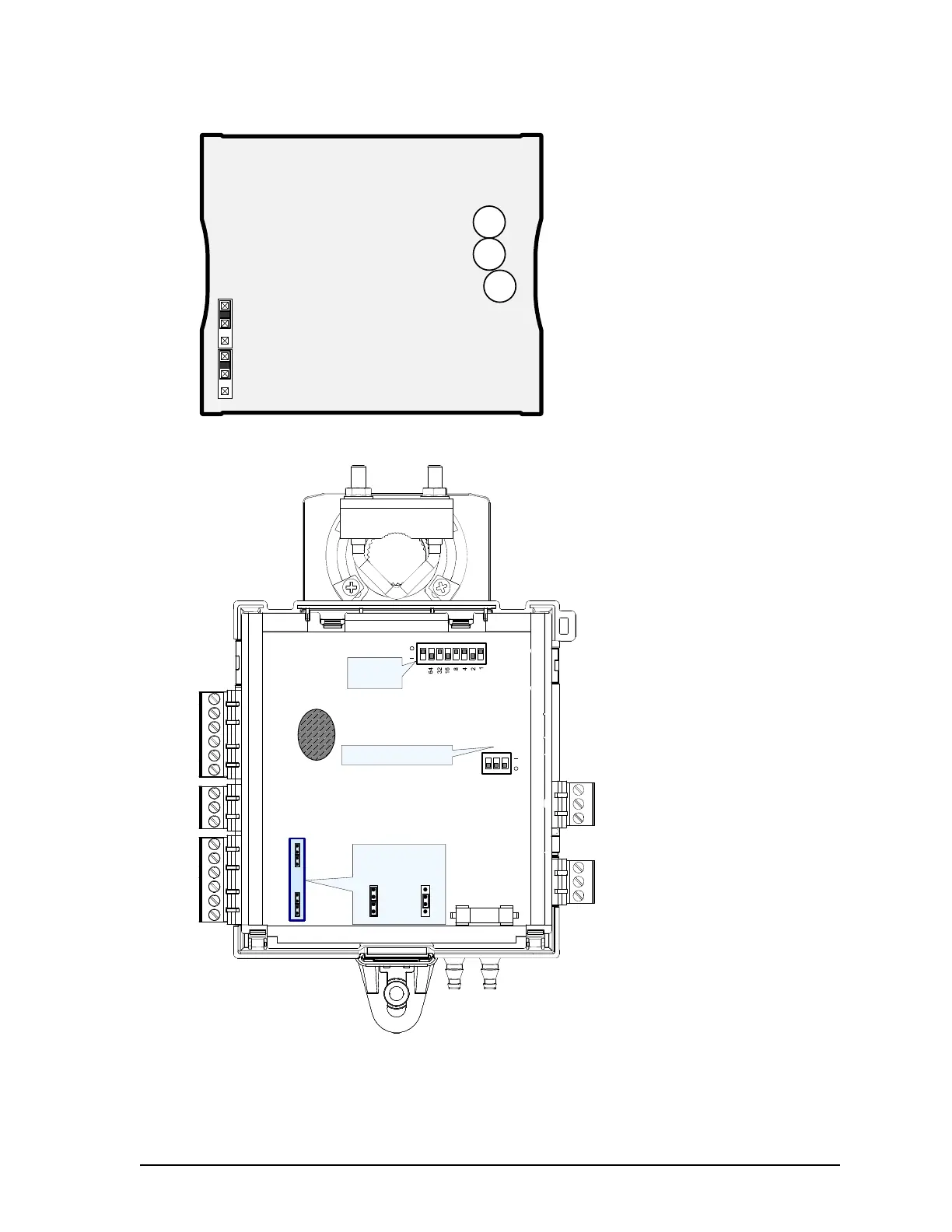

Figure 66: Jumpers Set to Enabled on an ECL Series Controller
Figure 67: Figure 5 4: Dip Switch and Jumper Identification and Configuration
Enable
Disable
Enable
Disable
Net to Subnet
Port Settings
* Factory-default positions
FUSE
Cover Removed
Jumpers for
DO1 & DO2
Jumpers for
DO3 & DO4
Digital Outputs (DO)
Power Source
Triac Inter nal
Power *
Triac Ex ternal
Power ed
12345678
NETWORKADDRESS
ON
123
ON
BIAS BIAS
EOL
BIASandEOLDIPSwitch
Network
Addressing
