Controls - 20 1330 Operator’s Manual
Control Console
CMW

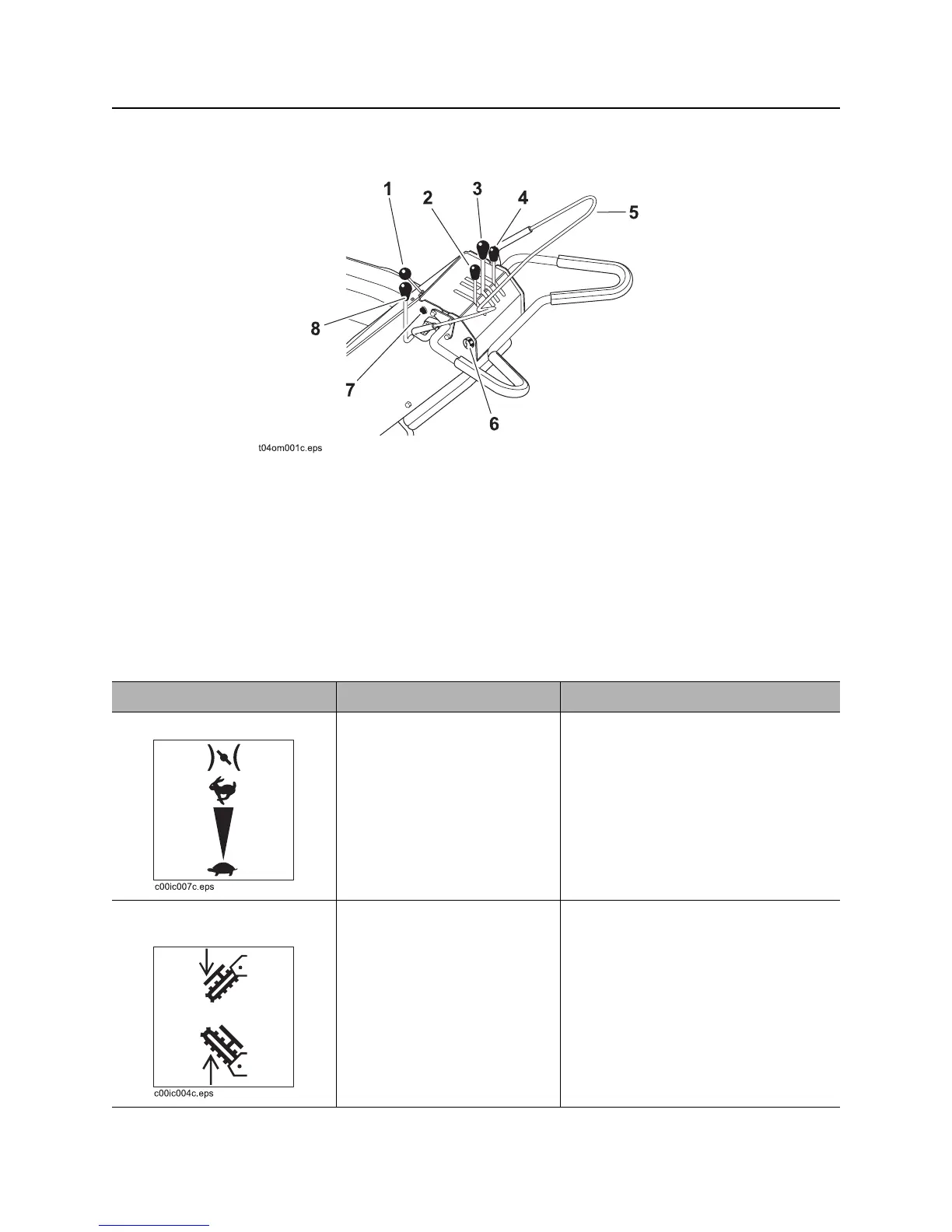

Control Console
1. Throttle (orange)
2. Boom lift control (green)
3. Speed/direction control (orange)
4. Digging chain control (yellow)
5. Bail (red, operator presence device)
6. Ignition switch
7. Manual start bypass button
8. Axle lock (blue)
Item Description Notes
1. Throttle (orange) To increase engine speed,
push down.
To decrease engine speed,
pull up.
Increasing engine speed also
increases digging chain speed.
2. Boom lift control
(green)
To lower boom, push.
To raise boom, pull.
Bail must be down for this control to
function.
