Specifications - 104 Cx Series Operator’s Manual
C12x
C12x

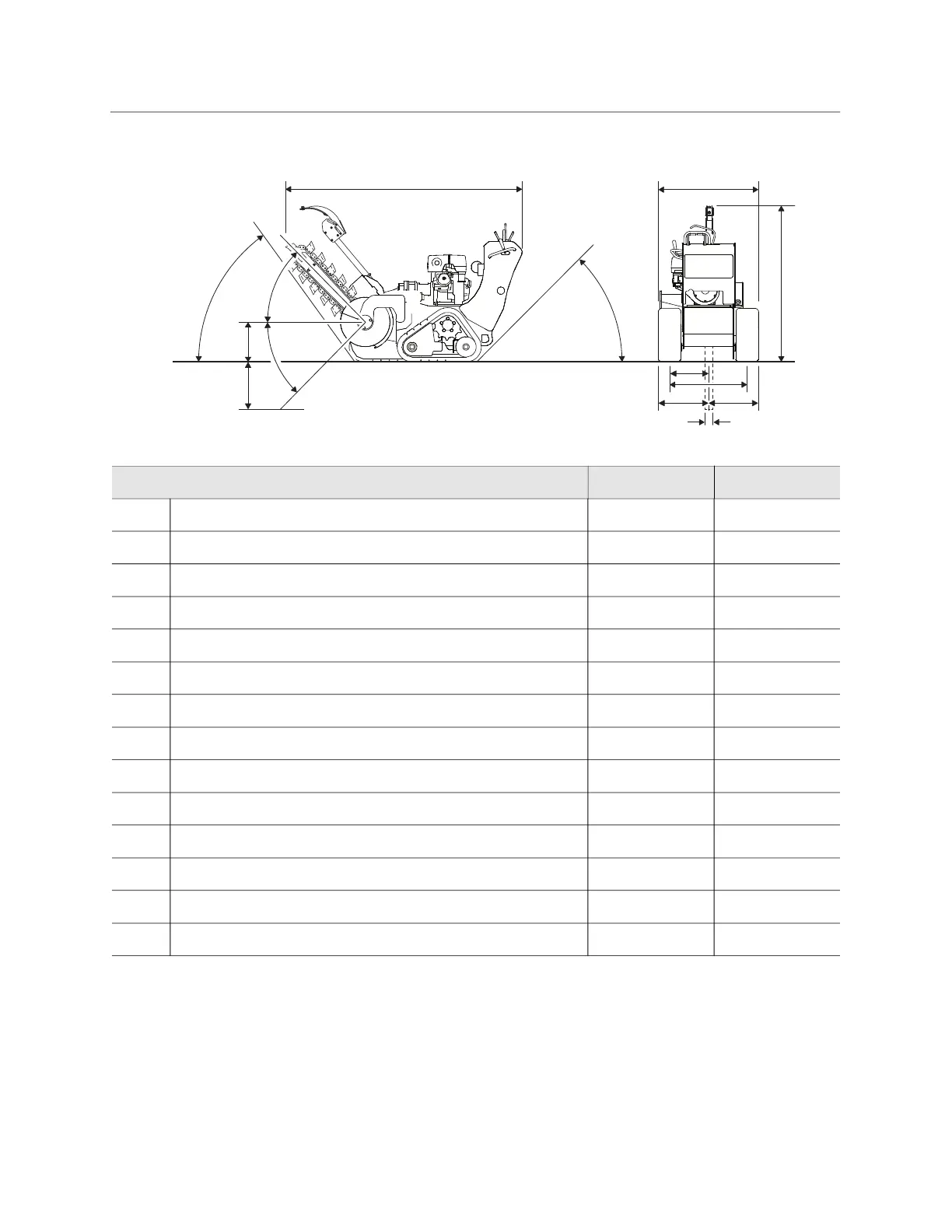

Unless otherwise noted, dimensions are based on 24” (610mm) boom in transport position.
Dimensions US Metric
A Trench depth, max 24” 610mm
A2 Angle of departure 45° 45°
A3 Angle of approach 52° 52°
B Trench width 4-6” 102-150mm
C Boom travel down 63° 63°
C1 Boom travel up 60° 60°
E1 Centerline trench to outside edge of machine, left 17.2” 437mm
E2 Centerline trench to outside edge of machine, right 18.6” 472mm
F Headshaft height, digging chain 13.7” 348mm
H2 Height 57” 1450mm
L3 Length, max 94” 2390mm
N Spoil discharge reach 14.1” 358mm
W2 Width 35.8” 909mm
W4 Tread 27” 686mm
t57om003w.eps
A3A3
C1C1
L3L3
A2A2
W2W2
H2H2
NN
W4W4
E1E1 E2E2
BB
CC
FF
AA

Ditch Witch C24x Specifications

General

Engine Make	Kubota
Engine Type	Diesel
Transmission	Hydrostatic
Gross Power	24.8 hp
Max Digging Depth	5 ft
Width	48 in
Horsepower	24.8 hp
Max Trenching Depth	5 ft
