Ditch Witch C24x User Manual

Drill - 66 Cx Series Operator’s Manual
Operate
Install Product

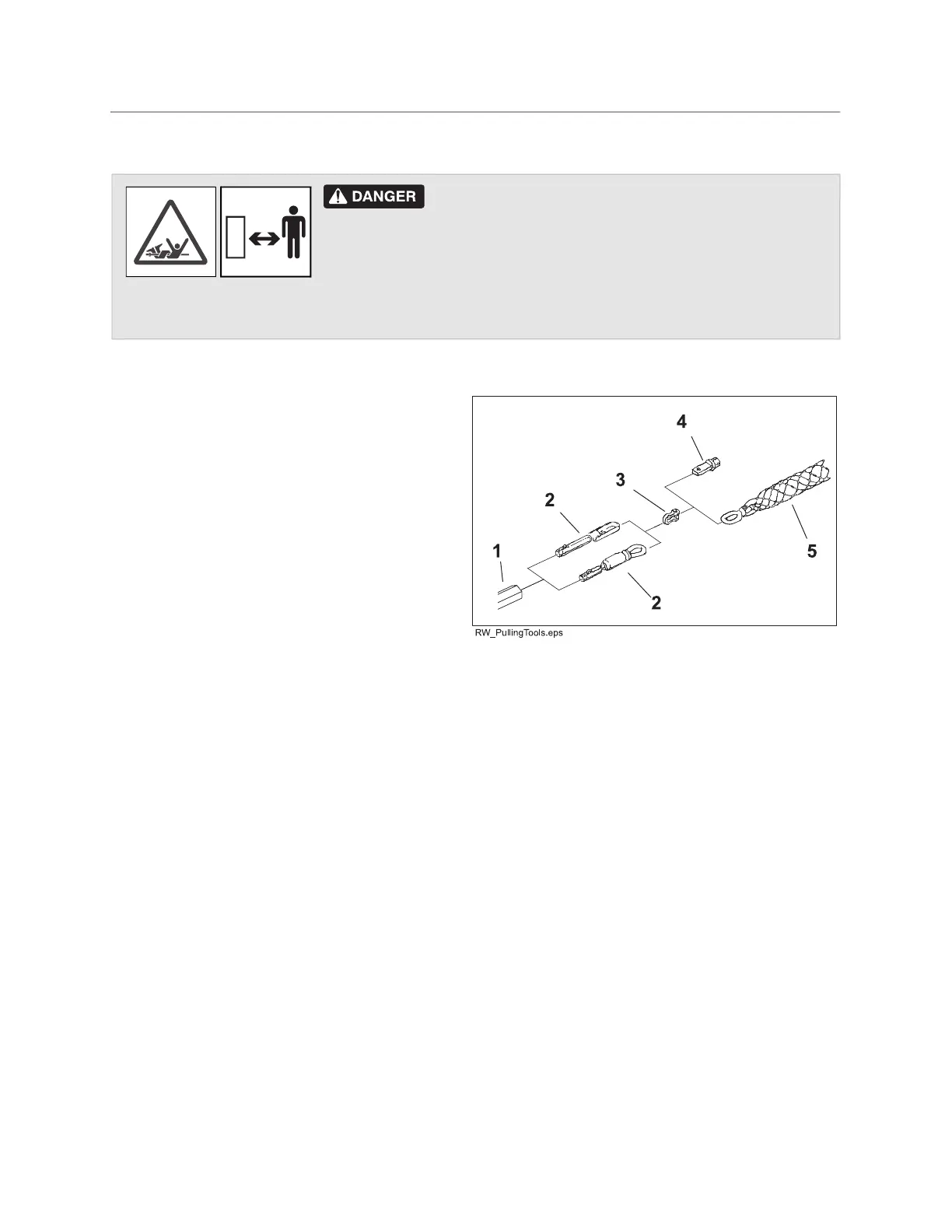

To install product, pull through the bore after drilling or at final pass of backreaming.
1. Shut off machine.
2. Remove drill bit and attach appropriate swivel
(2) to drill string (1) or reamer. Ensure swivel
functions correctly.
3. Use shackle (3) to attach pipe pulling adapter
(4) or pulling grip (5) to swivel.
4. Attach material to pipe pulling adapter or
pulling grip.
5. Start engine.
6. Set to low throttle.
7. Slowly drive in reverse while maintaining
rotation. When product exits approach
trench, stop rotation immediately.
Rotating shaft. Crushing will cause death or serious
injury. Stay away.
To help avoid injury: Ensure no one is in target trench or near product being installed. If swivel
malfunctions, material can rotate.

Ditch Witch C24x Specifications

General

Engine Make	Kubota
Engine Type	Diesel
Transmission	Hydrostatic
Gross Power	24.8 hp
Max Digging Depth	5 ft
Width	48 in
Horsepower	24.8 hp
Max Trenching Depth	5 ft
