Drill - 64 Cx Series Operator’s Manual
Operate
Add Rod Section
1. Have Helper connect new rod section to drill string.
2. Slowly move machine forward until new rod section and drilling attachment are about 1” (2.5cm)
apart.
3. Have Helper lightly hold new rod section.
4. Rotate drilling attachment to align slip latches of new rod section and drilling attachment if needed.
5. Move machine forward slowly. As soon as new rod section engages drilling attachment, have Helper
move hands clear.
6. Slightly move forward until slip latch connection is correctly latched.

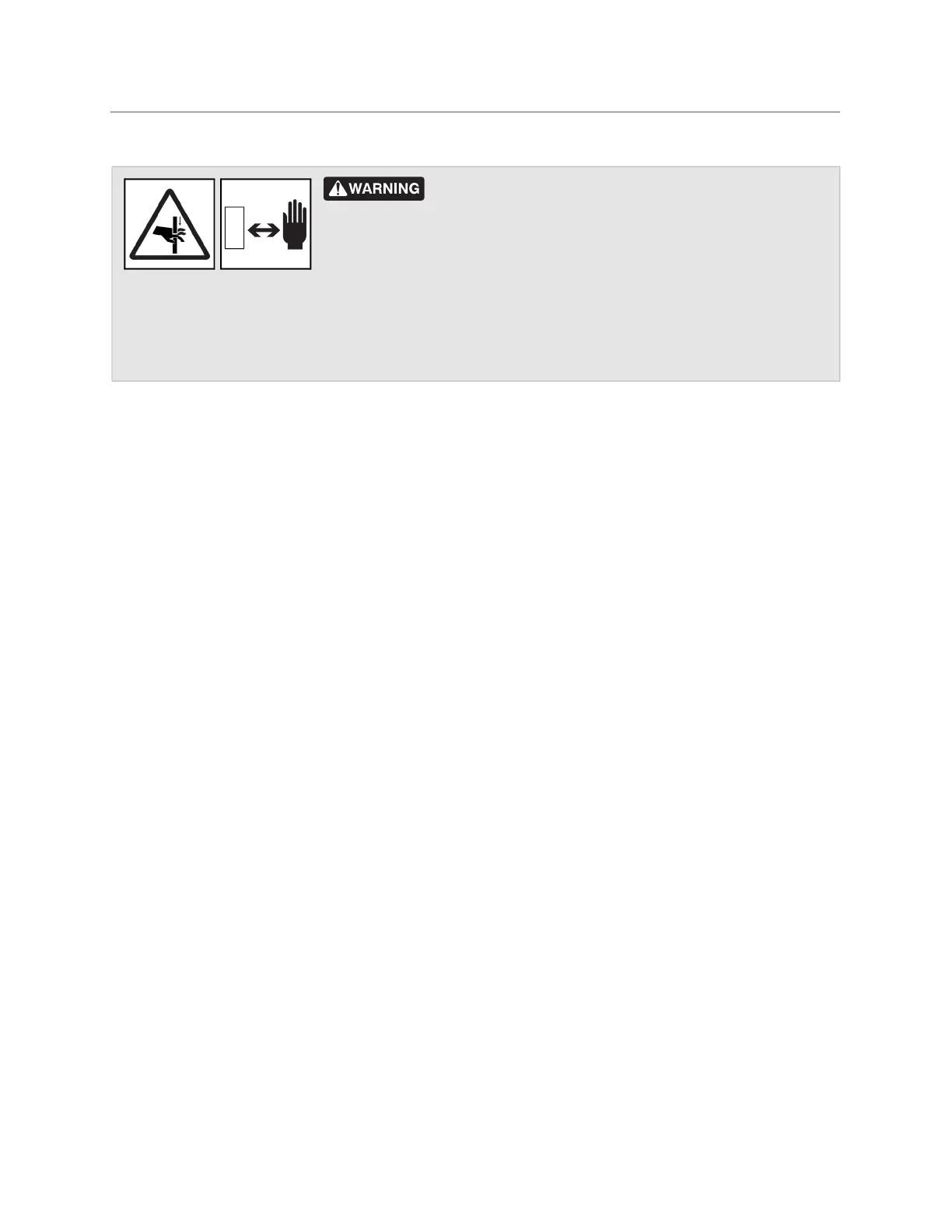

Pinch point. Crushing will cause serious injury. Stay away.
To help avoid injury:
• Keep hands at least 6” (15cm) from ends of rod.
• Support rods from underneath with open palms. Never grip rods.

Ditch Witch C24x Specifications

General

Engine Make	Kubota
Engine Type	Diesel
Transmission	Hydrostatic
Gross Power	24.8 hp
Max Digging Depth	5 ft
Width	48 in
Horsepower	24.8 hp
Max Trenching Depth	5 ft
