Service - 90 Cx Series Operator’s Manual
Procedures
10. Unclamp links. Slowly release cable and lower chain to ground with teeth facing down.
Install
1. Lay chain on ground with teeth down and pointed toward machine.
2. Start engine.
3. Remove parking pin from parking position.
4. Move machine backward until chain extends past headshaft about 1’ (305mm).
5. Move ground drive control to neutral.
6. Lower boom to horizontal position.
7. Shut machine off.
8. Insert parking pin.
9. Pull rear end of chain over tail roller or sprocket by about 10” (260mm).
10. Move chain down boom until chain connector pin and lock key can be installed. Install connector pin
and lock key.
11. Turn tension adjustment screw clockwise or add grease to tighten digging chain.

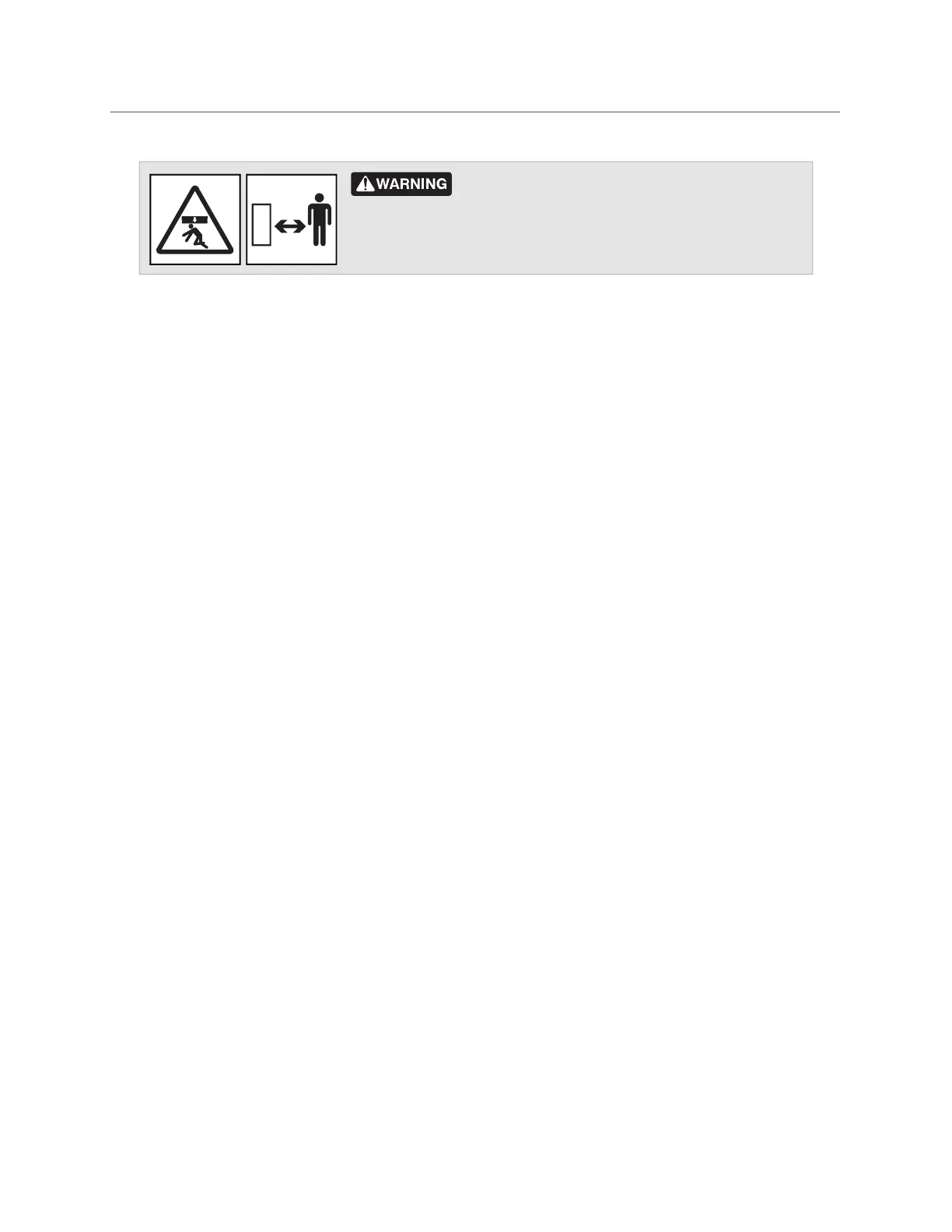

Raised component. Crushing can cause death or
serious injury. Stay away. Use correct equipment and procedures.

Ditch Witch C24x Specifications

General

Engine Make	Kubota
Engine Type	Diesel
Transmission	Hydrostatic
Gross Power	24.8 hp
Max Digging Depth	5 ft
Width	48 in
Horsepower	24.8 hp
Max Trenching Depth	5 ft
