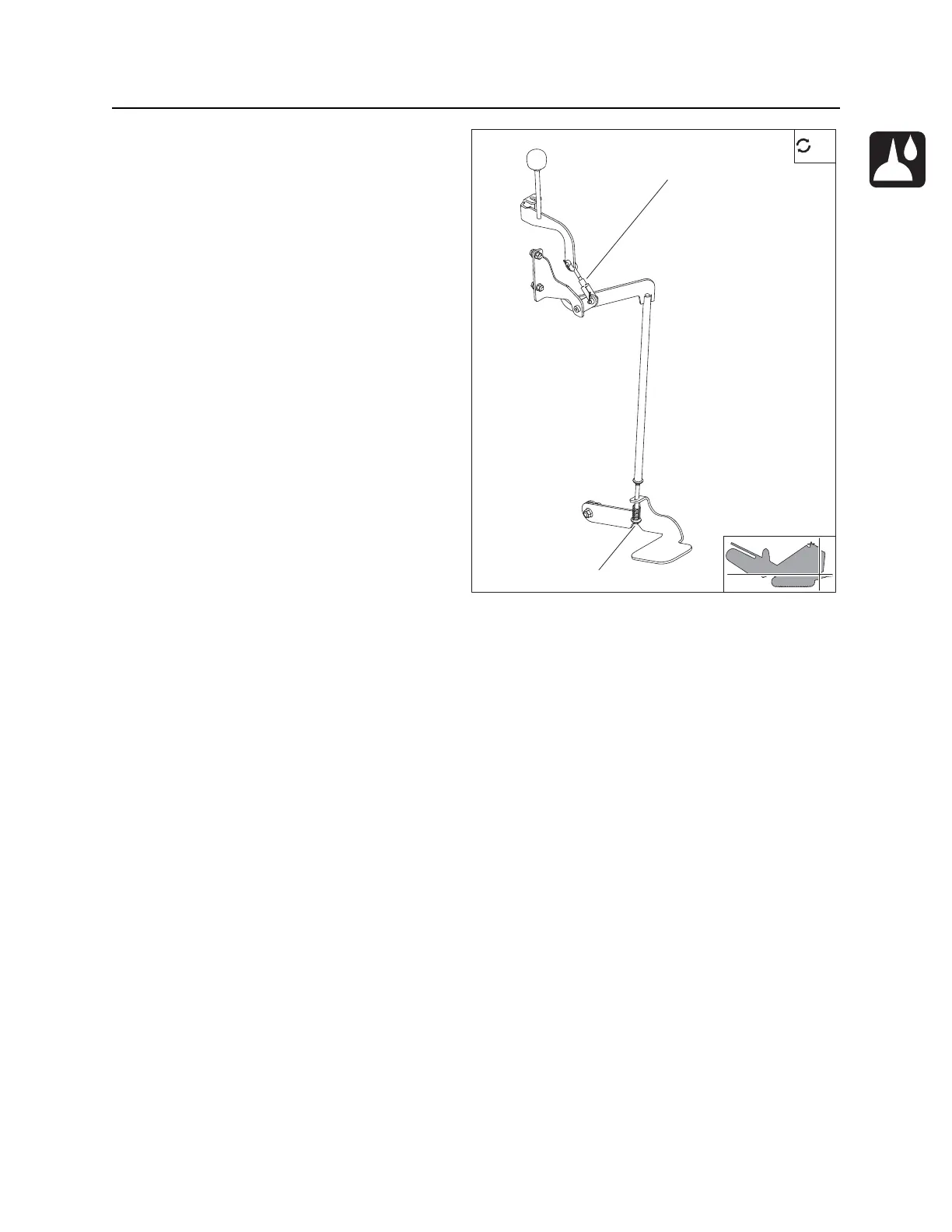

ST37x Operator’s Manual Service - 89
As Needed
Adjust Attachment Drive Controls
Adjust foot control if stepping on pedal moves
attachment drive control handle.
To adjust foot control:
1. Stand on platform and press attachment drive
foot control pedal down completely.
2. If attachment drive control handle moves,
open back cover and grille to loosen screw
(2).
3. Repeat steps 1 and 2 until attachment drive
control handle remains in neutral when pedal
is pressed completely.
4. Install back cover and grille.
To adjust control handle:
1. After foot control pedal is adjusted, step on
platform, press pedal down completely and
move control handle forward and backward.
2. If more resistance is desired, open rear panel
and lengthen clevis (2).
3. Repeat steps 1 and 2 until handle moves with desired resistance.
4. Close rear panel.
22
11
t54om011h.epst54om011h.eps
