ST37x Operator’s Manual Specifications - 97
ST37x

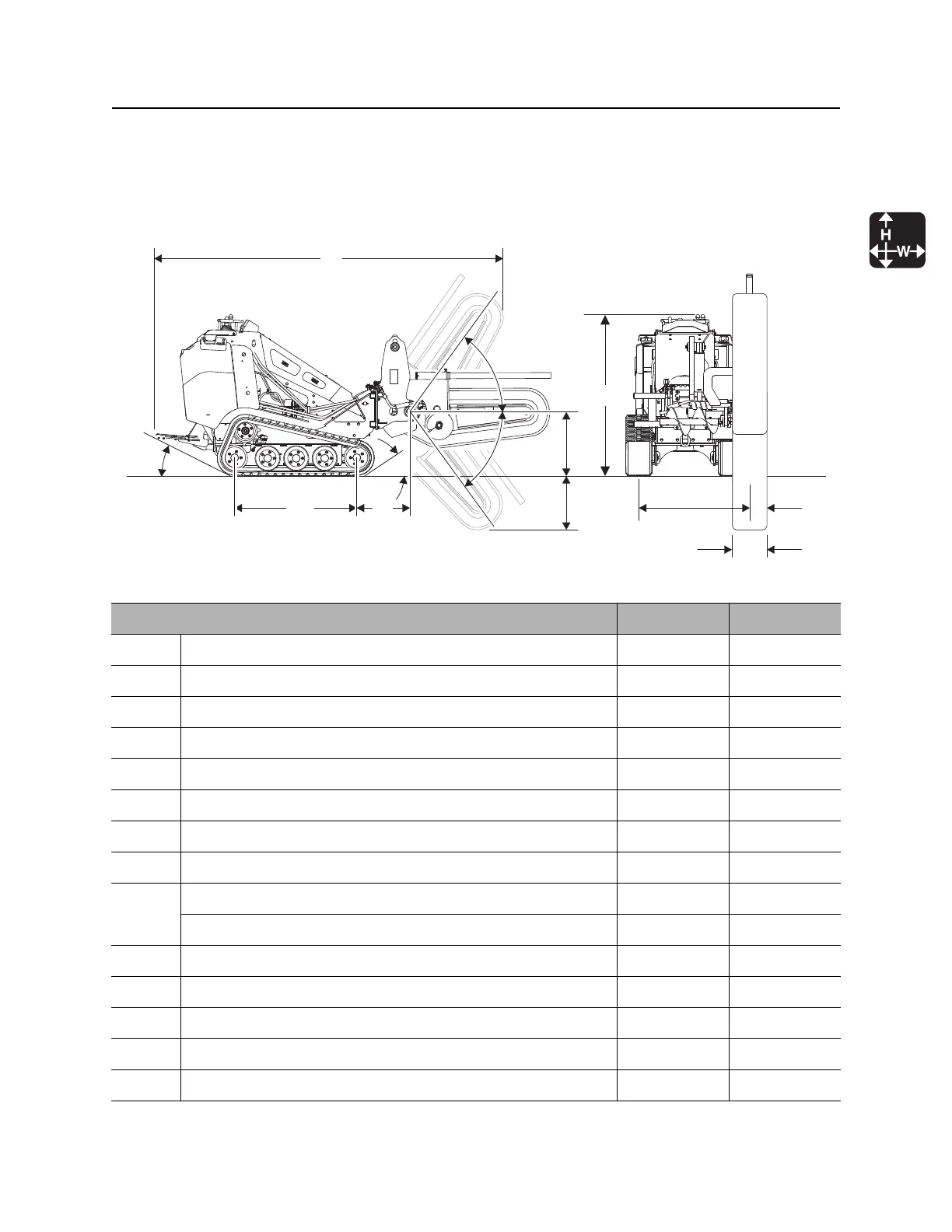

Specifications
ST37x
Dimensions U.S. Metric
Overall height of machine 57 in 1450 mm
L Overall length of machine, without chain 104.5 in 2654 mm
Overall length of machine, with 36” chain 130 in 3302 mm
Overall width of machine 42 in 1065 mm
Width of machine, excluding tracks 35 in 890 mm
L2 Wheelbase/track length 43 in 1092 mm
A2 Angle of departure 27° 27°
A3 Angle of approach 30° 30°
Ground clearance, min (center) 7.4 in 188 mm
Ground clearance, min (side) 3.7 in 94 mm
A Trench depth, maximum 36 in 914 mm
B Trench width, maximum 16 in 406 mm
C Boom travel down 60° 60°
C1 Boom travel up 60° 60°
E1 Centerline trench to outside edge of unit, left 4-20 in 102-508 mm
C1C1
A3
CC
AA
FF
E1E1 E2E2
BB
LL
A2A2
L2L2 L3L3
H
t54om001h.epst54om001h.eps
