PROTOCOL AND OPERATIONAL WORK
Displays for series DT-203NN, DT-105NN and DT-110NN
5.1.4 Display installation in TIA Portal V13
This section shows the steps for the display integration in the Profinet network.
1. Install the displays GSD/s
In TIA Portal V13, press the button “Options” and select “Install general station
description file (GSD)” (The field “Source path” must contain the directory where the
GSDs has been saved to list the content).
Choose the GSD files for the displays which will be included in the Project and press the
button “Install”. Wait until the installation process ends and the devices will be ready to be
configured as follows.
2. Add the displays to the Project.
Press the button “Devices and networks” (1), from the right drop-down menu “Hardware
Catalog”, inside “Other field devices” (2), look for HD67602 and select the module “serial”
and at the “Version” field (3) choose the GSD that you want to include in the project. Drag
the serial module to the “Network view”

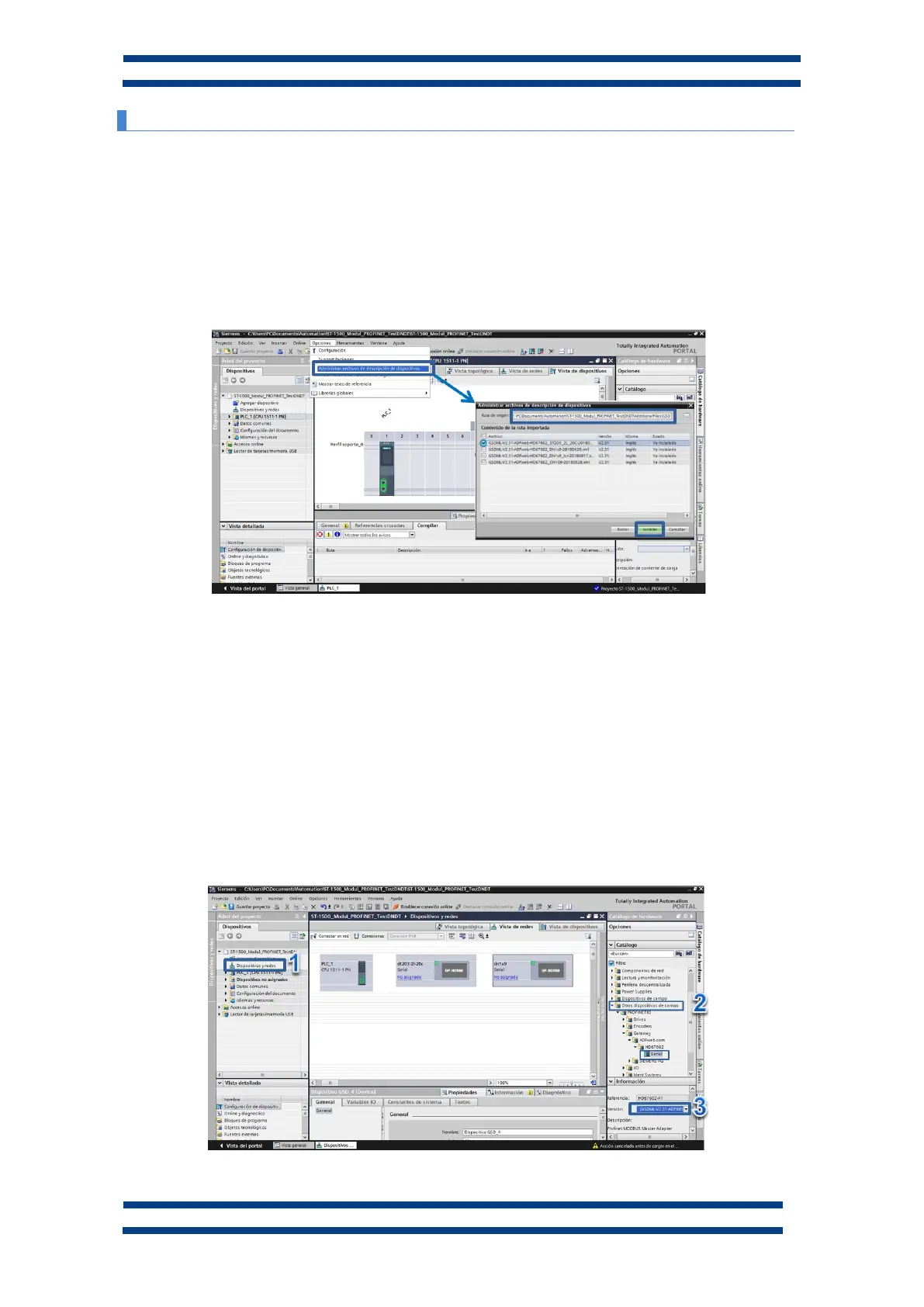

Fig. 9 Install the description file of the device (GSD)
Fig. 10 Add displays to the project.
