dIXEL
Installing and Operating Instructions
Installing and Operating InstructionsInstalling and Operating Instructions
Installing and Operating Instructions
1598001822
1598001822 XW562K LND GB R3.0 10.11.2007.doc XW562K 5/6

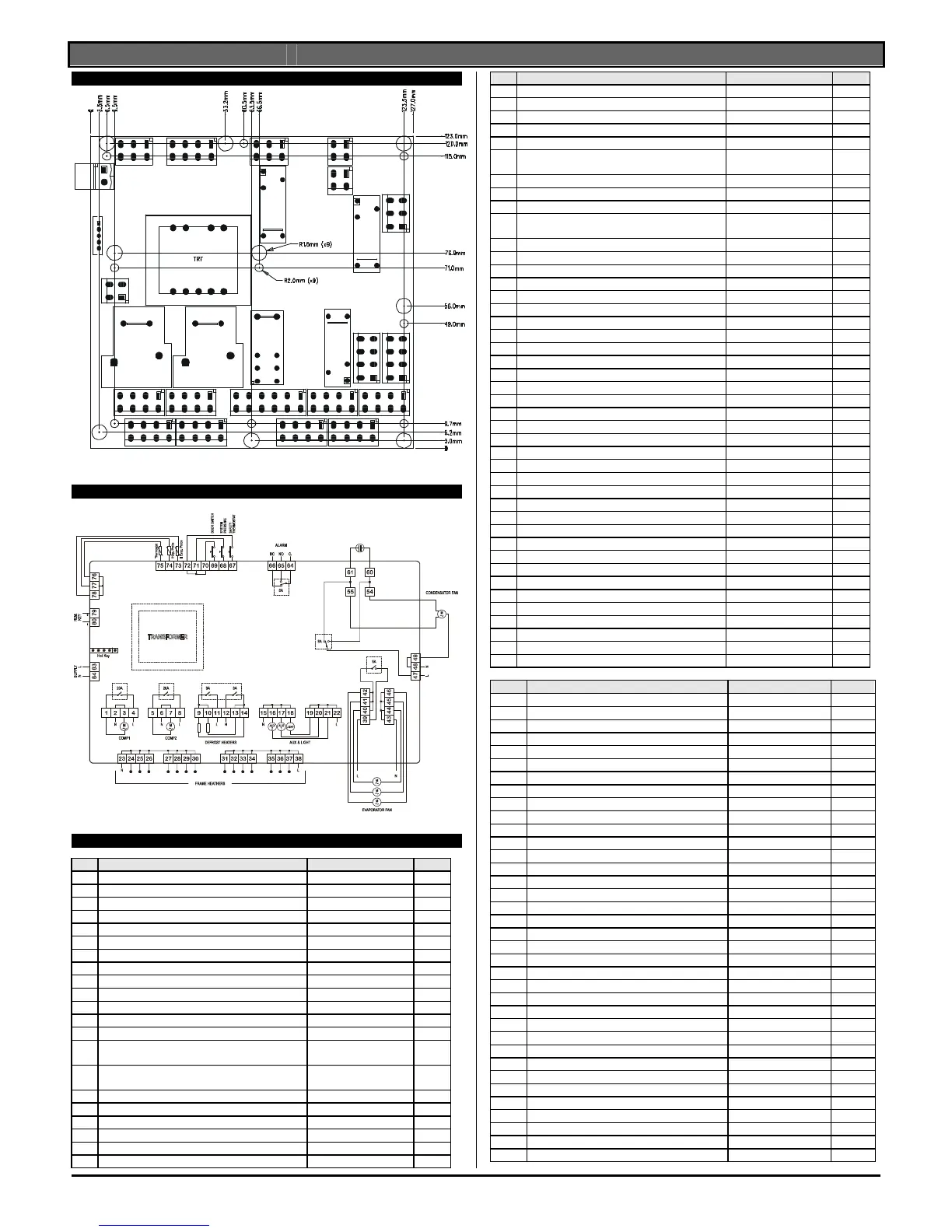

14 DIMENSIONS
15 CONNECTIONS
16 DEFAULT SETTING VALUES
Label
Name Range Default
REGULATION
Set1 Set point1 LS÷US
40,0
Set2 Set point2 LS2÷US2
40,0
Hy Differential for set1 0,1÷25,5 °C
2,0
Hy2 Differential for set2 0,1÷25,5 °C
2,0
LS Minimum set point1 -50,0°C÷SET1
-40,0
US Maximum set point1 SET1 ÷ 110°C
50,0
LS2 Minimum set point2 -50,0°C÷SET2
-40,0
US2 Maximum set point2 SET2 ÷ 110°C
60,0
OdS Outputs activation delay at start up 0÷255 min.
0
AC Anti-short cycle delay 0÷30 min.
3
AC1 Second compressor start delay 0÷255s
10
Ac2
Second compressor start delay progr.2 0 ÷ 255s
10
on
Minimum time a compressor remains on (it’s used both
for compr. 1 and 2)
0÷30 minutes
5
Mon
Maximum time compressor is continuously on
(permanent run monitoring)
0÷120min
0
cP2
Compressor 2 enabled with program 2 y = yES; n = no
yES
COn Compressor ON time with faulty probe 0÷255 min.
15
COF Compressor OFF time with faulty probe 0÷255 min.
30
S2F Second set point enabling yES÷no
yES
DISPLAY
CF Temperature measurement unit °C ÷ °F
°C
Label
Name Range Default
rES Resolution (integer/decimal point) in ÷ dE
dE
dot Display offset, program 1 0÷25.5 °C
2.0
do2 Display offset, program 2 0÷25.5 °C
2.0
dHy Display histeresys 0÷25.5 °C
2.0
DEFROST
MdF Defrost key enabling yES= enabled
no= disabled
YES
tdF Defrost type rE, in
rE
EdF Kind of defrost rtc, in
rtc
dtE Defrost termination temperature (1°Evaporator) -50,0÷110°C
8,0
dt2
Defrost termination temperature for program 2 -50.0°C o –
58°F ÷ 110°C o
230°F
8,0
IdF Interval between defrost cycles 1÷120h
12
id2
Interval between defrost cycles for the program 2 1 ÷ 120 hours
12
Mtd (Maximum) length for 1° defrost 0÷255 min.
30
Mt2
(Maximum) length of defrost for the program 2 0 ÷ 255 minuts
30
dFd
Display during defrost dEG; dEF
dEF
dSd
Defrost delay 0÷255min
0
Fdt Draining time 0÷60 min.
0
dPO First defrost after start up n ÷ y
no
FANS
CFE Condenser fan working during defrost yES÷no
YES
FnC Fans operating mode C-n, C-y, O-n, O-y
o-n
Fc2
Fans operating mode with program 2 c_n / c_Y / o_n / o_Y
o-n
Fnd Fans delay after defrost 0÷255 min.
0
FSt Fans stop temperature -50,0÷110°C
2.0
ALARMS
ALU MAXIMUM temperature alarm for set1 -50,0÷110°C
50.0
Au2 MAXIMUM temperature alarm for set2 -50,0÷110°C
50.0
ALd Temperature alarm delay 0÷255 min.
15
dAO Delay of temperature alarm at start up 0 ÷ 23h 50 min.
1,3
tBA Alarm relay silencing yES÷no
no
oAP Alarm relay polarity oP, cL
oP
ArE
Digital input 1 actives the alarm relay
yES÷no
no
ANALOGUE INPUTS
Ot Thermostat probe calibration -12,0÷12,0°C
0.0
P2P Evaporator probe presence no ÷ yES
yES
OE Evaporator probe calibration -12,0÷12,0°C
0.0
P3P Second evaporator probe presence no ÷ yES
no
O3 Second evaporator probe calibration -12,0÷12,0°C
0.0
DIGITAL INPUTS
I1P Door switch polarity CL÷OP
cL
I2P Pressure switch digital input polarity CL÷OP
oP
I3P Defrost end digital input polarity CL÷OP
oP
dId Digital input alarm delay 0÷255 min.
0
Label
Name Range Default
TIME AND WEEKLY HOLIDAYS
Hur Current hour 0 ÷ 23 - - -
Min Current minute 0 ÷ 59 - - -
dAY Current day Sun ÷ SAt - - -
Hd1 First weekly holiday Sun÷ SAt – nu nu
Hd2 Second weekly holiday Sun÷ SAt – nu nu
Hd3 Third weekly holiday Sun÷ SAt – nu nu
DEFROST TIMES
Ld1 1
st
workdays defrost start 0 ÷ 23h 50 min. - nu 3,0
Ld2 2
nd
workdays defrost start 0 ÷ 23h 50 min. - nu nu
Ld3 3
rd
workdays defrost start 0 ÷ 23h 50 min. - nu nu
Ld4 4
th
workdays defrost start 0 ÷ 23h 50 min. - nu nu
Ld5 5
th
workdays defrost start 0 ÷ 23h 50 min. - nu nu
Ld6 6
th
workdays defrost start 0 ÷ 23h 50 min. - nu nu
Ld7 7
th
workdays defrost start 0 ÷ 23h 50 min. - nu nu
Ld8 8
th
workdays defrost start 0 ÷ 23h 50 min. - nu nu
Sd1 1
st
holiday defrost start 0 ÷ 23h 50 min. - nu nu
Sd2 2
nd
holiday defrost start 0 ÷ 23h 50 min. - nu nu
Sd3 3
rd
holiday defrost start 0 ÷ 23h 50 min. - nu nu
Sd4 4
th
holiday defrost start 0 ÷ 23h 50 min. - nu nu
Sd5 5
th
holiday defrost start 0 ÷ 23h 50 min. - nu nu
Sd6 6
th
holiday defrost start 0 ÷ 23h 50 min. - nu nu
Sd7 7
th
holiday defrost start 0 ÷ 23h 50 min. - nu
nu
Sd8 8
th
holiday defrost start 0 ÷ 23h 50 min. - nu nu
2L1 1st workdays defrost start program 2 0 ÷ 23h 50 min. - nu 7,0
2L2 2nd workdays defrost start program 2 0 ÷ 23h 50 min. - nu 19,0
2L3 3rd workdays defrost start program 2 0 ÷ 23h 50 min. - nu nu
2L4 4th workdays defrost start program 2 0 ÷ 23h 50 min. - nu nu
2L5 5th workdays defrost start program 2 0 ÷ 23h 50 min. - nu nu
2L6 6th workdays defrost start program 2 0 ÷ 23h 50 min. - nu nu
2L7 7th workdays defrost start program 2 0 ÷ 23h 50 min. - nu nu
2L8 8th workdays defrost start program 2 0 ÷ 23h 50 min. - nu nu
2S1 1st holiday defrost start program 2 0 ÷ 23h 50 min. - nu nu
2S2 2nd holiday defrost start program 2 0 ÷ 23h 50 min. - nu nu
2S3 3rd holiday defrost start program 2 0 ÷ 23h 50 min. - nu nu
2S4 4th holiday defrost start program 2 0 ÷ 23h 50 min. - nu nu
