15
OPTIONAL VARIABLE STROKE KIT
e Variable Stroke Kit is an add kit that allows for the use of non standard size panels ranging in length from 9cm
(3.5”) to 30cm (12”).

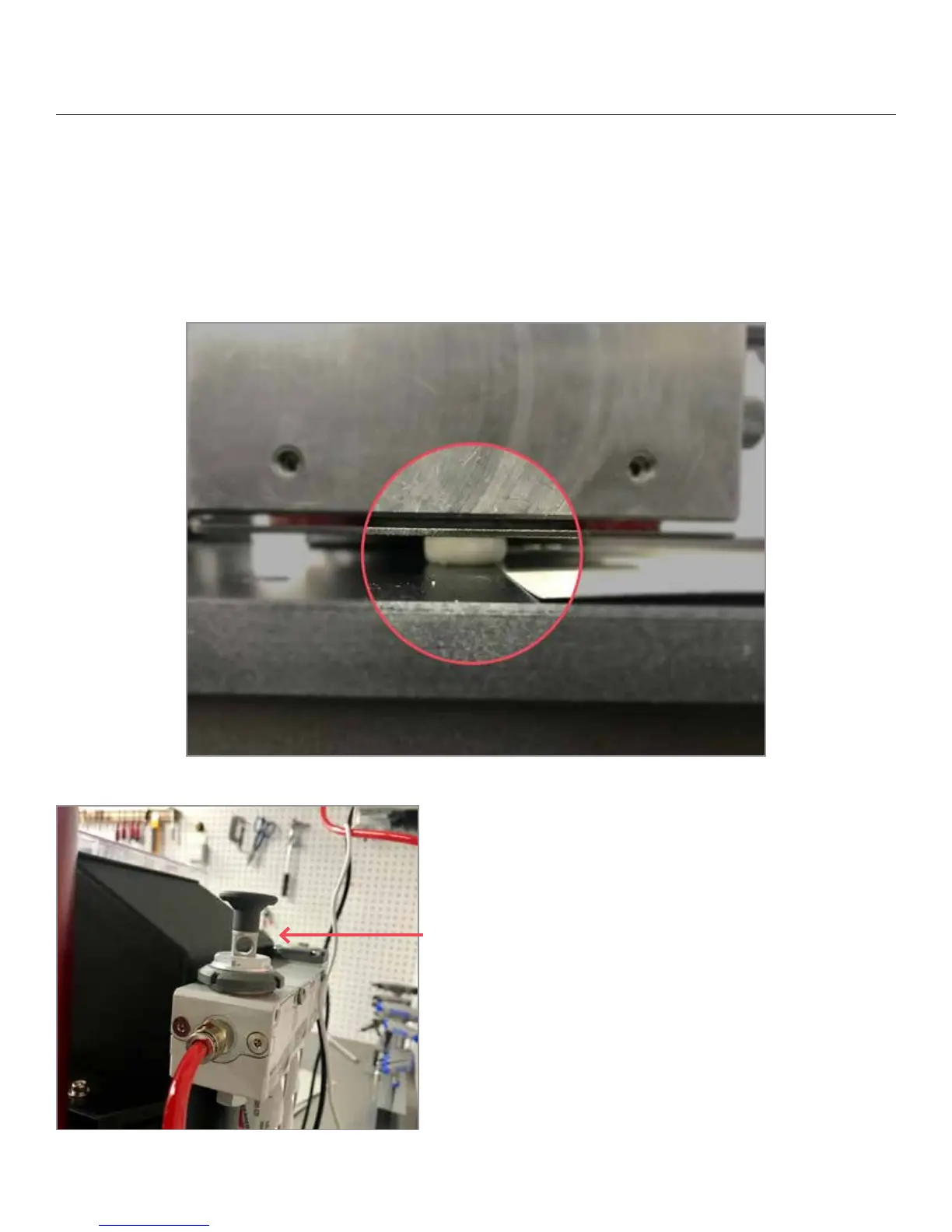

Adjusting the stroke length; when testing non standard length panels it will be necessary to adjust the stroke length
so that the nozzle cannot ride over the edge of the panel as shown below and cause damage to the nozzle.
1. Turn o the air supply to the machine by pulling up on the
shuto valve located on the top of the lter assembly.
