14
TESTING A PANEL
Minimum size 13cm (5”) x 30cm (12”) (unless equipped with variable stroke kit).

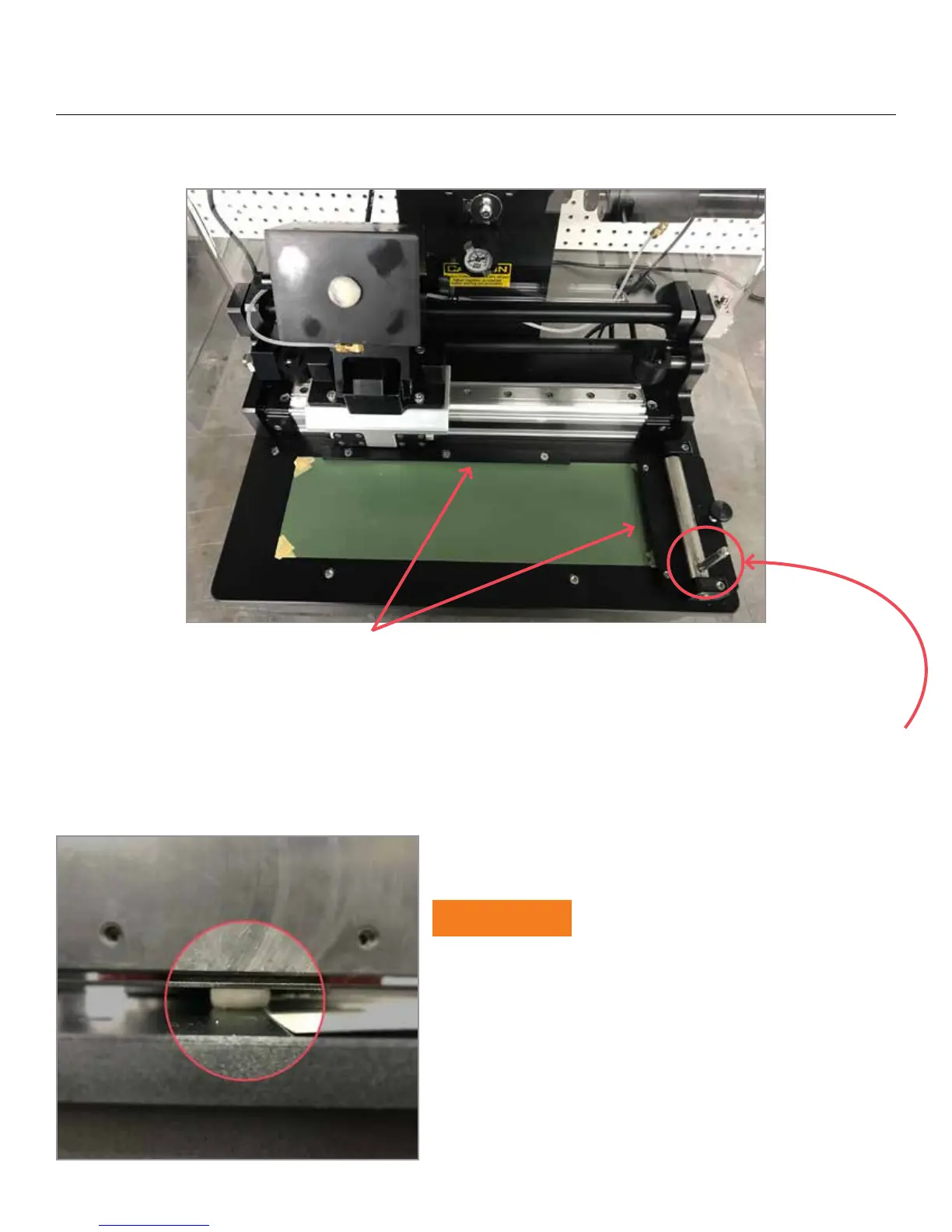

Place the panel on the test area, butt the right edge up against the locating pins under the panel holding clamp, and
slide the top edge against and under the stop bar. e stop bar is machined with a taper so if the panel has a bow
it will help to hold it at.
Turn the clamp lever Clock Wise to secure the panel. If the clamp rotates too far clock-wise (i.e. 3 O’ Clock
position, return it to the vertical position and turn the knurled knob a quarter turn and try again. Do not use
excessive force to clamp the panel), Turn the lever Clock-wise just tight enough to secure the panel.
Do not use a panel shorter than 30cm (12”), if the panel is too
short and the nozzle is allowed to ride over the edge of the
panel as shown, it will damage the solvent nozzle.
An optional Variable Stroke Kit is available for testing short
panels.
CAUTION
