dji MATRICE 600 - Mounting the Landing Gear

©
2016 DJI All Rights Reserved.
9
MATRICE 600 User Manual

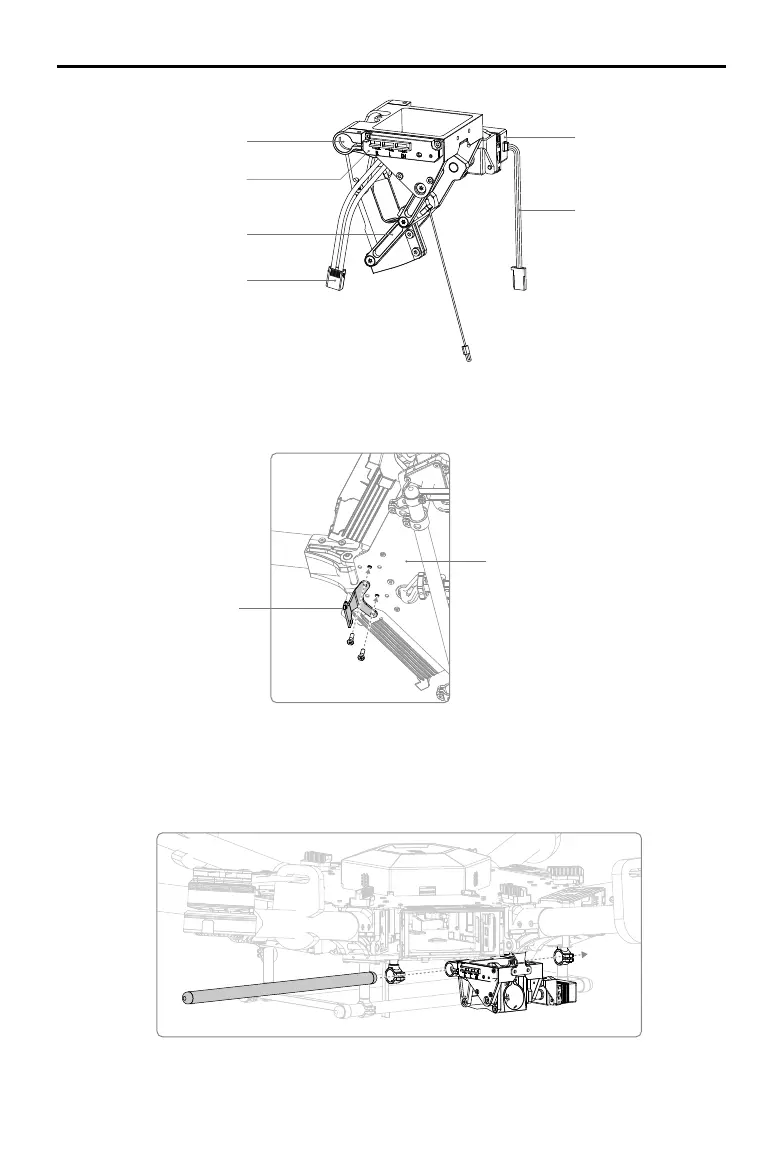

1. Mount the retractable module bracket to the mounting position on the lower plate of the
center frame as shown below. Apply medium strength threadlocker to two M3×8.5 screws.
Insert and tighten the screws.
2. With the servo of the retractable module at the rear of the aircraft, insert the retractable module
mounting rod into one mounting hole on the center frame, mounting holes on the retractable module
and the other mounting hole on the center frame respectively. Ensure that the left retractable module
is mounted on the left side of the aircraft (when viewed from the rear).
Mounting Holes
Servo
Servo Cable
Power Cable
(Left module only)
Connecting Arm
Control Board
(Left module only)
Lower Plate of the Center Frame
Retractable
Module Bracket
