MATRICE 600 User Manual

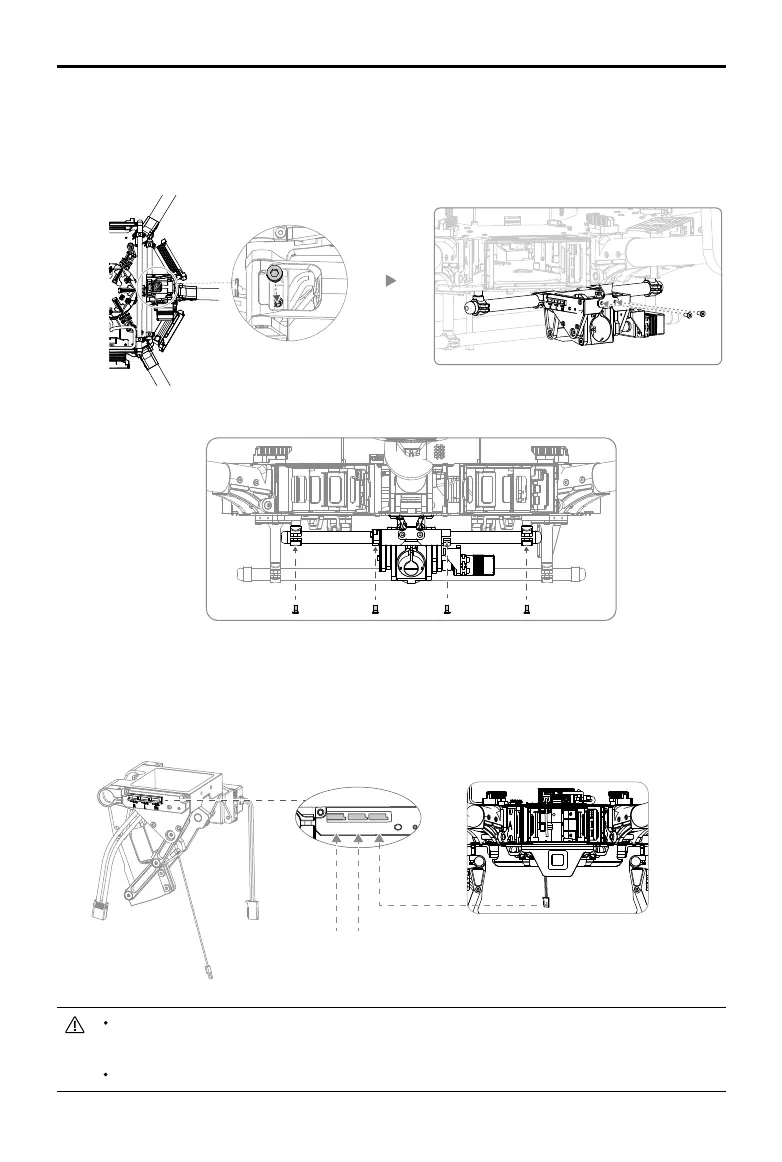

6. Connecting the servo cables.
a. Connect the left servo cable to the “L” port on the control board.
b. Connect the right servo cable to the “R” port on the control board.
c. Connect the servo cable at the bottom of the center frame to the “IN” port on the control board.
3. Align the cable xing ring and the screw hole on the bottom of the retractable module. Insert and
tighten the M3×5.5 screw.
4. Align the screw holes of the connector on the center frame and the screw holes on the middle of
the retractable module. Insert and tighten the two M3×6.5 screws.
5. Insert and tighten the four M3×6.5 screws to secure the retractable module on the mounting rod.
DO NOT mix the cabling between the left and right servos, otherwise the landing gear
cannot function properly.
Arrange the wiring neatly to prevent the frame edges from cutting the cables.
Servo Cable at the Bottom of the Center Frame
R
L
IN
Left Servo CableRight Servo Cable
