©2013 DJI Innovations. All Rights Reserved.
re-do the compass calibration. Carry out the following procedure to re-mount the GPS module.

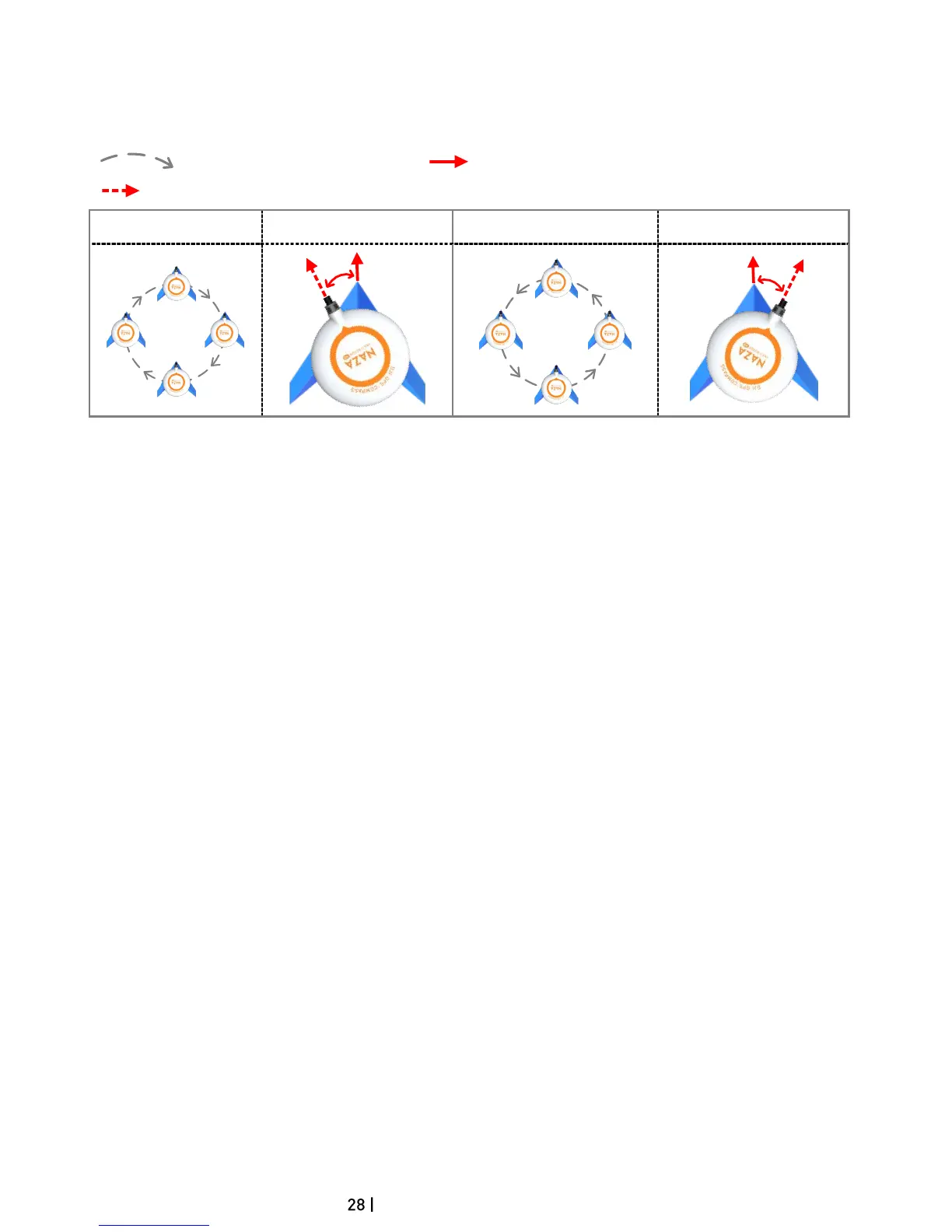

In the following diagram (view from the top), the aircraft can appear to be rotating in both clockwise and
counter-clockwise direction, please re-mount the GPS module correspondingly.
is the rotating direction of aircraft, is the nose direction of aircraft,
is the arrow direction on the GPS module, θ is the offset angle for GPS re-mounting(about 10~30
o
)
Clockwise rotating
GPS re-mounting
Counter Clockwise rotating
GPS re-mounting
θ
θ
Should you find the multi-rotor does not track straight in forward flight.
Please carry out several more courses, the system will fix it automatically.
Motors Start failure caused by TX stick(s) mid point error too big
If the TX stick(s) mid point error is too big, Motors Start will fail when you execute the Combination Stick
Commands (CSC) and lead to the aircraft will not takeoff.. And the LED will blink Red four times per second
continually to warn you.
TX stick(s) mid point error too big can be caused by the following reasons:
(1) There is TX stick (except the throttle stick) not at center when power on the autopilot system.
(2) The TX sticks has been trimmed, which leads to the large deviation of mid point. For example, the
SUB-TRIM has been adjusted for Futaba transmitter.
(3) The TX stick(s) travel has larger asymmetry.
For the reason (1), please put all TX sticks at the mid point, and then power cycle the autopilot system to
re-record the mid point. If the problem continues, that can be caused by the reason (2) or reason (3), yo
u need to adjust the output range of your TX, and then use the Assistant Software to redo the TX cali
bration. Please carry out the following procedures.
(1) Connect to the Assistant software, click Basic-> R/C-> Command Sticks Calibration, and push all TX
sticks throughout their complete travel range to see if any stick cannot reach its largest position.
(2) Adjust the largest travel of TX stick until the cursor on the Assistant software can reach both end
positions, according to your TX manual.
(3) Power cycle the autopilot system, note that power cycle is required.
(4) Redo the TX calibration according to the Assistant software.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the dji Naza-M V2 and is the answer not in the manual?

dji Naza-M V2 Specifications

General IconGeneral
Working Voltage4.8V - 5.5V
Operating Temperature-10°C to 50°C
Firmware UpdateSupported
Max Supported Motors8
Communication InterfaceUSB
Firmware UpgradeableYes
Built-in FunctionsIntelligent Orientation Control (IOC)
Assistant SoftwareDJI NAZA Assistant Software
Supported ESC Output400Hz
Recommended TransmitterPCM or 2.4GHz with minimum 4 channels
Power Consumption (Typical)0.4W
GPS CompatibilityYes
Flight ModesManual Mode, Atti. Mode, GPS Atti. Mode
