Product Profile
Phantom 3 Advanced
User Manual

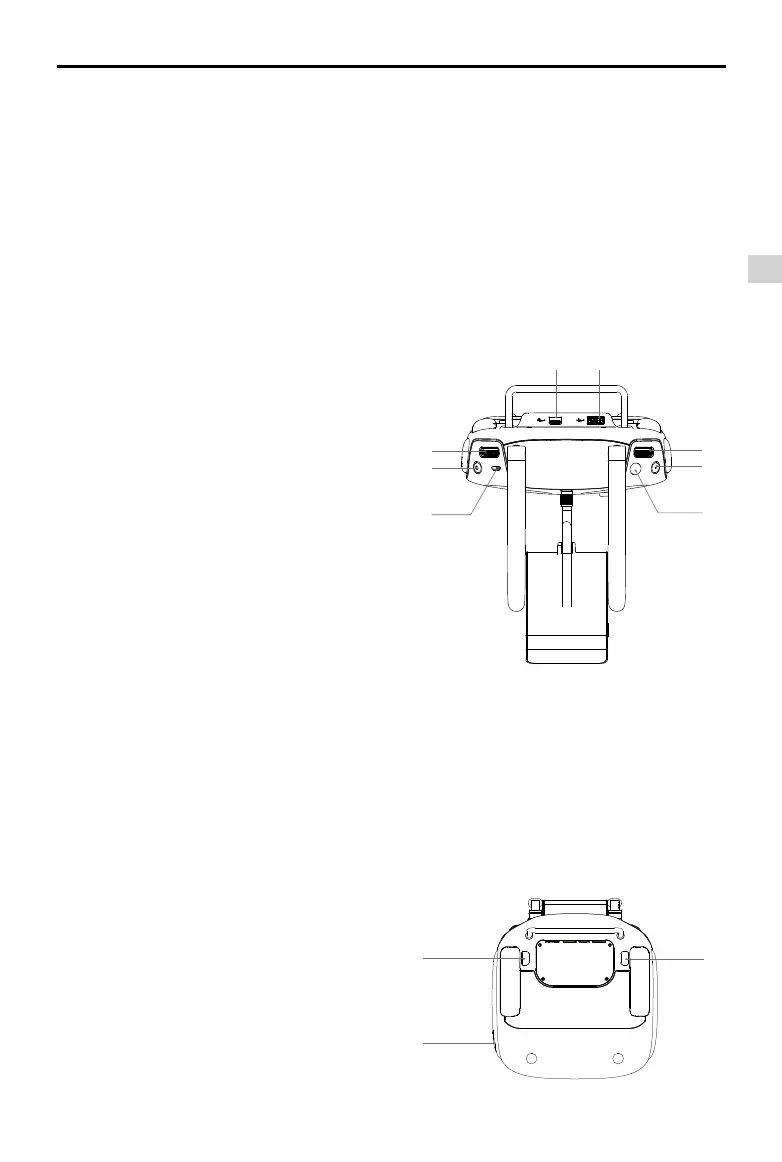

[5] Battery Level LEDs
Displays the battery level of the remote
controller.
[6] Status LED
Displays the remote controller's system status.
[7] Power Button
Used to turn the remote controller on and off.
[8] RTH LED
Circular LED around the RTH button displays
RTH status.
[17]
[19]
[18]
[9] Camera Settings Dial
Turn the dial to adjust camera settings.
(Only functions when the remote controller is
connected to a mobile device running the DJI
Pilot app. )
[10] Playback Button
Playback the captured images or videos.
(Only functions when the remote controller is
connected to a mobile device running the DJI
Pilot app.)
[11] Shutter Button
Press to take a photo. If burst mode is
selected, the set number of photos will be
taken with one press.
[12] Flight Mode Switch
Switch between P-mode, A-mode, and
F-mode.
[13] Video Recording Button
Press to start recording video. Press again to
stop recording.
[14] Gimbal Dial
Use this dial to control the tilt of the gimbal.
[15] Mircro-USB Port
Connect to a SD card reader to upgrade the
rmware.
[16] USB Port
Connect to mobile device or to a USB port for
rmware upgrade.
[17] C1 Button
Customizable through the DJI Pilot app.
[18] C2 Button
Customizable through the DJI Pilot app.
[19] Power Port
Connect to the DJI Phantom 3 Charger to
charge the battery of the remote controller.
[10]
[11]
[15] [16]
[9]
[12]
[13]
[14]
