8
©
2015 DJI. All Rights Reserved.
Product Profile
Phantom 3 Advanced
User Manual

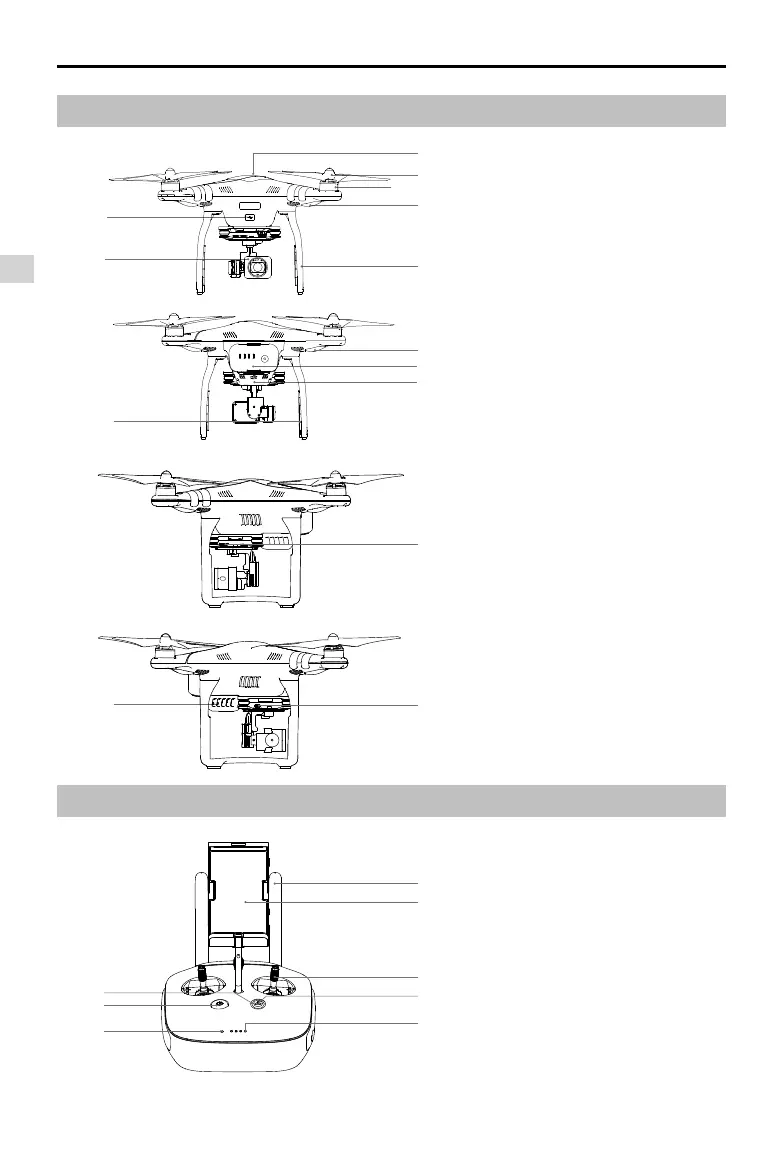

Aircraft Diagram
Remote Controller Diagram
[1] Antennas
Relays aircraft control and
video signal.
[2] Mobile Device Holder
Securely mounts your mobile
device to the remote controller.
[3] Control Stick
Controls the orientation and
movement of the aircraft.
[4] Return Home (RTH) Button
Press and hold the button to
initiate Return to Home (RTH).
[1]
[2]
[4]
[5]
[6]
[7]
[8]
[3]
[1] GPS
[2] Propeller
[3] Motor
[4] Front LED Indicator
[5] Landing gear
[6] Gimbal and Camera
[7] Aircraft Micro-USB Port
[8] Aircraft Status Indicator
[9] Intelligent Flight Battery
[10] Vision Positioning Sensors
[11] Antennas
[12] Camera Micro-SD Card Slot
[13] Camera Micro-USB Port
[14] Link Button
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[11]
[9]
[10]
4K
[12]
[14]
[13]
