dji PHANTOM 3 User Manual

©
2015 DJI. All Rights Reserved.
15
Aircraft
Phantom 3 Advanced User Manual

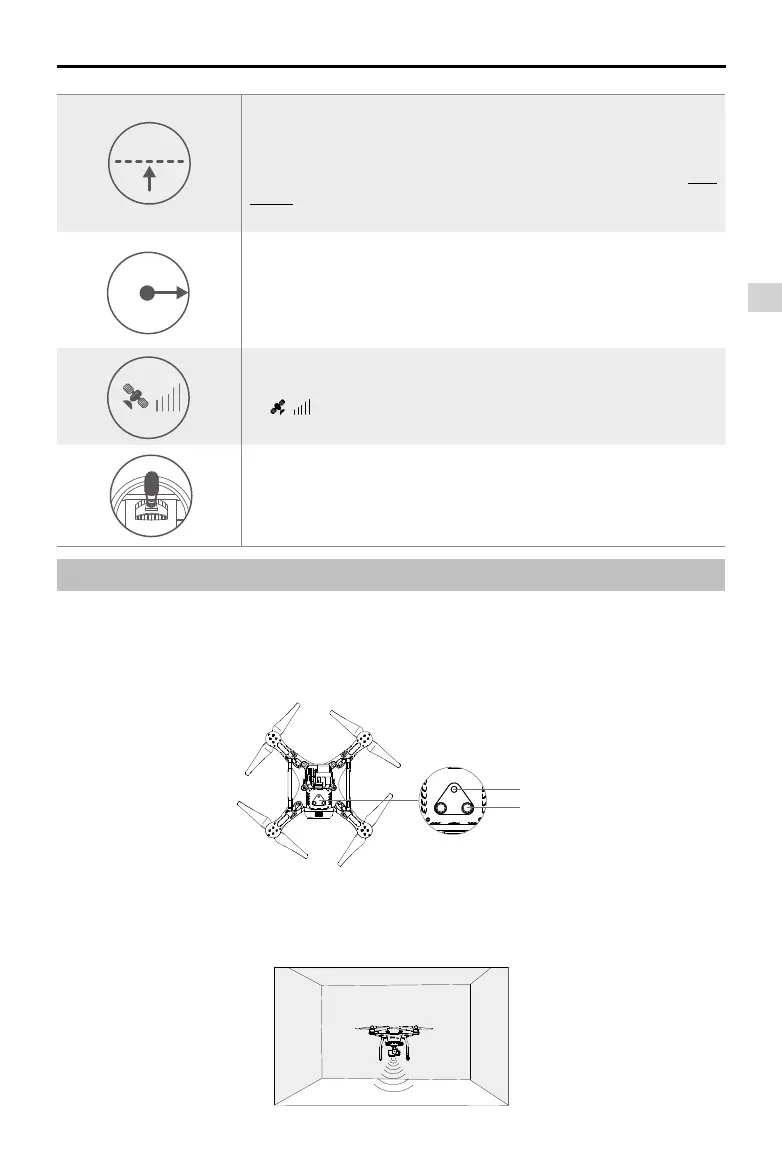

Vision Positioning System
The DJI Vision Positioning System uses ultrasound and image data to help the aircraft maintain its current
position. With the help of Vision Positioning, your Phantom 3 Advanced can hover in place more precisely
and fly indoors or in other environments where a GPS signal is not available. The main components of the
Vision Positioning System are located on the bottom of your Phantom 3 Advanced; they include [2] two
ultrasonic sensors and [1] one monocular camera.
20 m
20 m
H
If the aircraft is ying under 20 meters (65 feet) and Failsafe (including
Smart RTH, Lower Battery RTH ) is triggered, the aircraft will first
automatically ascend to 20 meters (65 feet) from the current altitude.
You can only cancel the ascending by exiting the Failsafe. Refer to “RTH
Button” on page 26 for more information on how to exit the Failsafe and
regain the control of the remote controller.
20 m
20 m
H
Aircraft automatically descends and lands if RTH is triggered when the
aircraft ies within a 20 meters (65 feet) radius of the Home Point. Aircraft
will stop ascending and immediately return to the Home Point if you move
the throttle stick if the aircraft reaches 20 meters (65 feet) altitudes or
beyond during Failsafe.
20米
20米
H
Aircraft cannot return to the Home Point when GPS signal is weak
( [ ] displays grey) or unavailable.
20米
20米
H
if you move the throttle stick after the aircraft rises above 65 feet
(20m) but below the pre-set Failsafe RTH altitude, the aircraft will stop
ascending and immediately return to the Home Point.
Using Vision Positioning
Vision Positioning is activated automatically when the Phantom 3 Advanced is turned on. No
further action is required. Vision Positioning is typically used in indoor environments, where GPS
is unavailable. Using the sensors that are built into the Vision Positioning system, the Phantom 3
Professional can hover precisely even without GPS.
[1]
[2]

dji PHANTOM 3 Specifications

General

Max Flight Time	23 minutes
Battery Capacity	4480 mAh
Weight	1280 g (Including battery and propellers)
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Max Service Ceiling Above Sea Level	6000 m
GPS Mode	GPS/GLONASS
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Max Charging Power	100 W
Lens FOV	94°
Aperture	f/2.8
Shutter Speed	8s -1/8000s
Max Image Resolution	4000 x 3000
Max Bitrate	40 Mbps
Max Speed	16 m/s (ATTI mode, no wind)
Video Resolution	2.7K: 2704x1520p 24/25/30 (29.97); FHD: 1920x1080p 24/25/30/48/50/60
Operating Temperature	0°C to 40°C
Transmitter Power (EIRP)	20 dBm (FCC), 14 dBm (CE)
Video Recording Modes	2.7K, FHD
Camera Sensor	1/2.3" CMOS
ISO Range	100-3200 (video), 100-1600 (photo)
Photo Formats	JPEG, DNG
Video Formats	MP4/MOV (H.264)
Remote Controller Operating Frequency	2.4 GHz
Mobile Device Holder	For mobile phones or tablets
Hover Accuracy Range	Vertical: +/- 0.5 m; Horizontal: +/- 1.5 m
