Product Profile
Phantom 3 Advanced User Manual

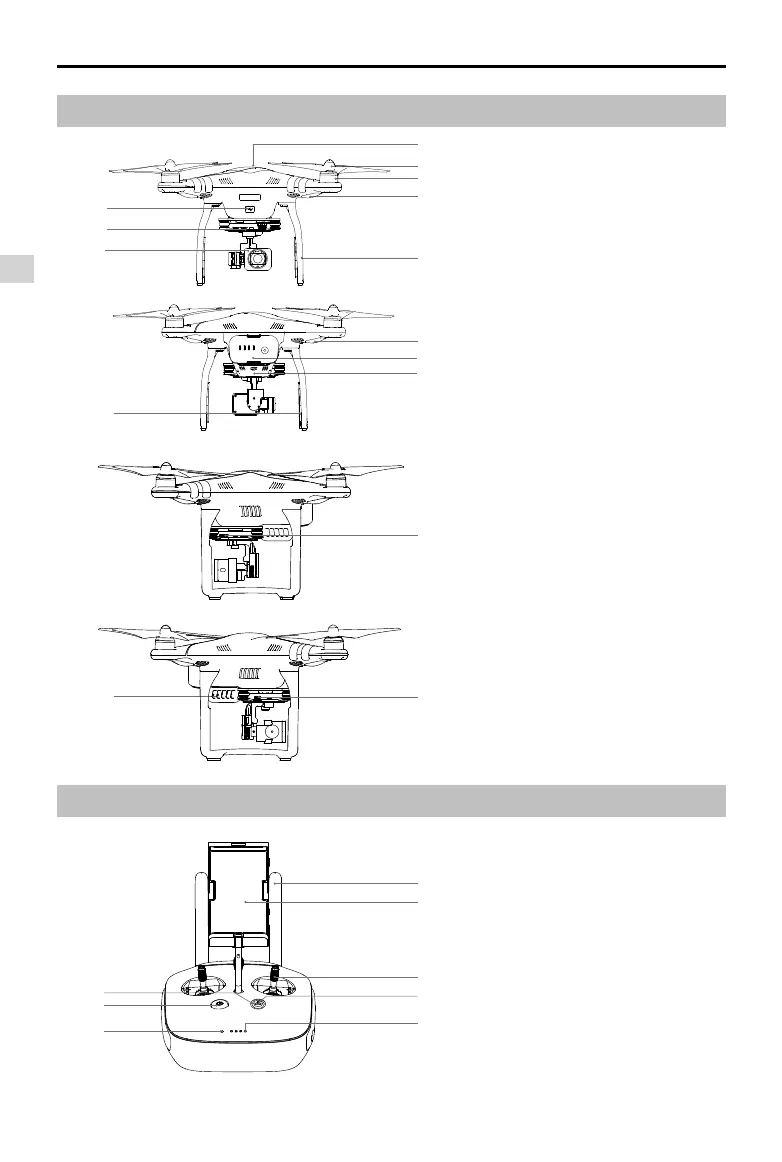

Aircraft Diagram
Remote Controller Diagram
[1] Antennas
Relays aircraft control and
video signal.
[2] Mobile Device Holder
Securely mounts your mobile
device to the remote controller.
[3] Control Stick
Controls the orientation and
movement of the aircraft.
[4] Return Home (RTH) Button
Press and hold the button to
initiate Return to Home (RTH).
[1]
[2]
[4]
[5]
[6]
[7]
[8]
[3]
[1] GPS
[2] Propeller
[3] Motor
[4] Front LED Indicator
[5] Landing gear
[6] Gimbal and Camera
[7] Camera Status Indicator
[8] Aircraft Micro-USB Port
[9] Aircraft Status Indicator
[10] Intelligent Flight Battery
[11] Vision Positioning Sensors
[12] Antennas
[13] Camera Micro-SD Card Slot
[14] Camera Micro-USB Port
[15] Link Button
[1]
[2]
[3]
[4]
[5]
[9]
[12]
[10]
[11]
HD
[13]
[15]
[14]
[6]
[8]
[7]

dji PHANTOM 3 Specifications

General

Max Flight Time	23 minutes
Battery Capacity	4480 mAh
Weight	1280 g (Including battery and propellers)
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Max Service Ceiling Above Sea Level	6000 m
GPS Mode	GPS/GLONASS
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Max Charging Power	100 W
Lens FOV	94°
Aperture	f/2.8
Shutter Speed	8s -1/8000s
Max Image Resolution	4000 x 3000
Max Bitrate	40 Mbps
Max Speed	16 m/s (ATTI mode, no wind)
Video Resolution	2.7K: 2704x1520p 24/25/30 (29.97); FHD: 1920x1080p 24/25/30/48/50/60
Operating Temperature	0°C to 40°C
Transmitter Power (EIRP)	20 dBm (FCC), 14 dBm (CE)
Video Recording Modes	2.7K, FHD
Camera Sensor	1/2.3" CMOS
ISO Range	100-3200 (video), 100-1600 (photo)
Photo Formats	JPEG, DNG
Video Formats	MP4/MOV (H.264)
Remote Controller Operating Frequency	2.4 GHz
Mobile Device Holder	For mobile phones or tablets
Hover Accuracy Range	Vertical: +/- 0.5 m; Horizontal: +/- 1.5 m
