Remote Controller
Remote Controller
Remote Controller Prole
The Phantom 3 Advanced remote controller is a multi-function wireless communication device that
integrates the video downlink system and aircraft remote control system. The video downlink and aircraft
remote control system operate at 2.4 GHz. The remote controller features a number of camera control
functions, such as taking and previewing photos and videos, as well as controlling gimbal motion.
The remote controller is powered by a 2S rechargeable battery. The battery level is displayed via LED
indicators on the front panel of the remote controller.
Compliance Version:
The remote controller is compliant with both CE and FCC regulations.
Operating Mode:
Control can be set to Mode 1 or Mode 2, or to a custom mode.
Mode 1:
The right stick serves as the throttle.
Mode 2:
The left stick serves as the throttle.
To prevent transmission interference, do not operate more than three aircrafts in the same area.
Using the Remote Controller

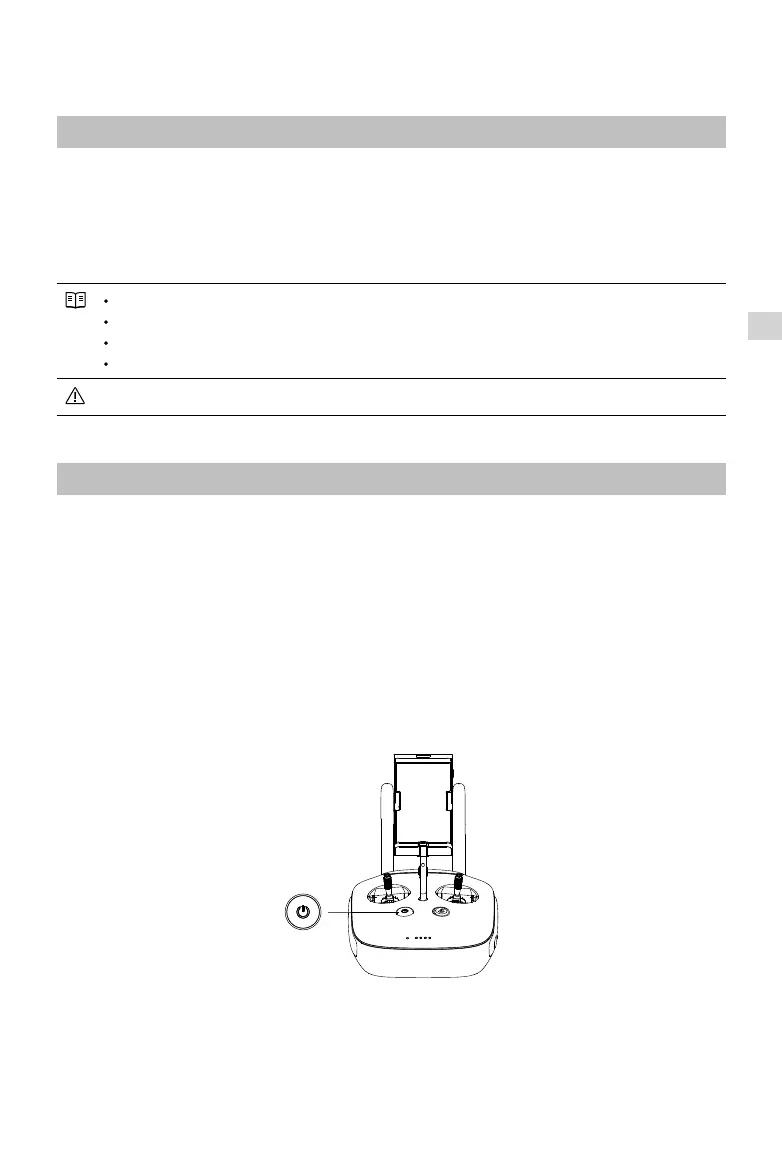

Turning the Remote Controller On and Off
The Phantom 3 Advanced remote controller is powered by a 2S rechargeable battery that has a capacity
of 6000 mAh. The battery level is indicated via the Battery Level LEDs on the front panel. Follow the steps
below to turn on your remote controller:
1. When the remote controller is turned off, press the Power Button once. The Battery Level LEDs will
display the current battery level.
2. Press and hold the Power Button to turn on the remote controller.
3. The remote controller will beep when it is turned on. The Status LED will rapidly blink green, indicating
that the remote controller is linking to the aircraft. The Status LEDs will glow solid green when linking is
complete.
4. Repeat Step 2 to turn off the remote controller.
Charging the Remote Controller
Charge the remote controller using the included charger. Refer to the gure on next page below for more
details.

dji PHANTOM 3 Specifications

General

Max Flight Time	23 minutes
Battery Capacity	4480 mAh
Weight	1280 g (Including battery and propellers)
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Max Service Ceiling Above Sea Level	6000 m
GPS Mode	GPS/GLONASS
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Max Charging Power	100 W
Lens FOV	94°
Aperture	f/2.8
Shutter Speed	8s -1/8000s
Max Image Resolution	4000 x 3000
Max Bitrate	40 Mbps
Max Speed	16 m/s (ATTI mode, no wind)
Video Resolution	2.7K: 2704x1520p 24/25/30 (29.97); FHD: 1920x1080p 24/25/30/48/50/60
Operating Temperature	0°C to 40°C
Transmitter Power (EIRP)	20 dBm (FCC), 14 dBm (CE)
Video Recording Modes	2.7K, FHD
Camera Sensor	1/2.3" CMOS
ISO Range	100-3200 (video), 100-1600 (photo)
Photo Formats	JPEG, DNG
Video Formats	MP4/MOV (H.264)
Remote Controller Operating Frequency	2.4 GHz
Mobile Device Holder	For mobile phones or tablets
Hover Accuracy Range	Vertical: +/- 0.5 m; Horizontal: +/- 1.5 m
