Remote Controller
Phantom 3 Advanced User Manual
Status LED Alarm Remote Controller Status
— Solid Red Chime The remote controller is disconnected from the aircraft.
— Solid Green Chime The remote controller is connected to the aircraft.
Slow Blinking Red D-D-D
......
Remote controller error.
/
Red and Green/ Red and
Yellow Alternate Blinks
None HD downlink is disrupted.
RTH LED Sound Remote Controller Status
— Solid White Chime Aircraft is returning home.
Blinking White D
. . .
Sending Return-to-Home command to the aircraft.
Blinking White DD
.. .. ..
Return-to-Home procedure in progress.
The Remote Status Indicator will blink red and sound an alert, when the battery level is critically low.
Linking the Remote Controller
The remote controller is linked to your aircraft before delivery. Linking is only required when using a new
remote controller for the rst time. Follow these steps to link a new remote controller:
1. Turn on the remote controller and connect to the mobile device. Launch the DJI GO app.
2. Turn on the Intelligent Flight Battery.

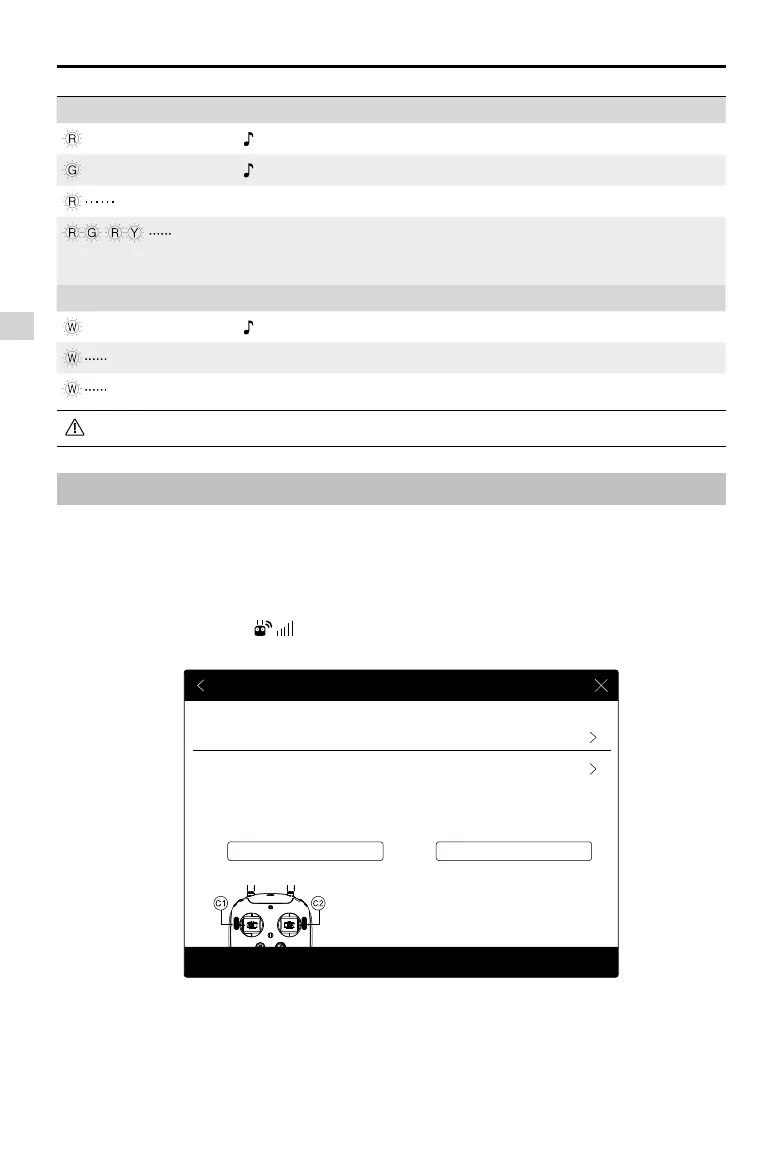

3. Enter “Camera” and tap on and then tap “Linking RC” button as shown below.
RC Control Setting
RC Calibration
Stick Mode
Not DefinedC1 C2 Not Defined
Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.
Do not change unless familiar with your new mode.
You can customize the C1 and C2 buttons on the back
of the RC.
Linking RC

dji PHANTOM 3 Specifications

General

Max Flight Time	23 minutes
Battery Capacity	4480 mAh
Weight	1280 g (Including battery and propellers)
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Max Service Ceiling Above Sea Level	6000 m
GPS Mode	GPS/GLONASS
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Max Charging Power	100 W
Lens FOV	94°
Aperture	f/2.8
Shutter Speed	8s -1/8000s
Max Image Resolution	4000 x 3000
Max Bitrate	40 Mbps
Max Speed	16 m/s (ATTI mode, no wind)
Video Resolution	2.7K: 2704x1520p 24/25/30 (29.97); FHD: 1920x1080p 24/25/30/48/50/60
Operating Temperature	0°C to 40°C
Transmitter Power (EIRP)	20 dBm (FCC), 14 dBm (CE)
Video Recording Modes	2.7K, FHD
Camera Sensor	1/2.3" CMOS
ISO Range	100-3200 (video), 100-1600 (photo)
Photo Formats	JPEG, DNG
Video Formats	MP4/MOV (H.264)
Remote Controller Operating Frequency	2.4 GHz
Mobile Device Holder	For mobile phones or tablets
Hover Accuracy Range	Vertical: +/- 0.5 m; Horizontal: +/- 1.5 m
