Gimbal Camera
Phantom 3 Advanced User Manual
Gimbal Operation Modes
Two gimbal operation modes are available. Switch between the different operation modes on the
camera settings page of the DJI GO app. Note that your mobile device must be connected to the remote
controller for changes to take effect. Refer to the table below for details:
Follow Mode
The angle between gimbal’s orientation and aircraft’s nose remains
constant at all times.
FPV Mode
The gimbal will synchronize with the movement of the aircraft to provide a
rst-person perspective ying experience.
A gimbal motor error may occur in these situations: (1) the aircraft is placed on uneven ground
or the gimbal’s motion is obstructed (2) the gimbal has been subjected to an excessive
external force, such as a collision. Please take off from at, open ground and protect the gimbal
at all times.
Flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure. The
gimbal will recover full functionality after it dries.

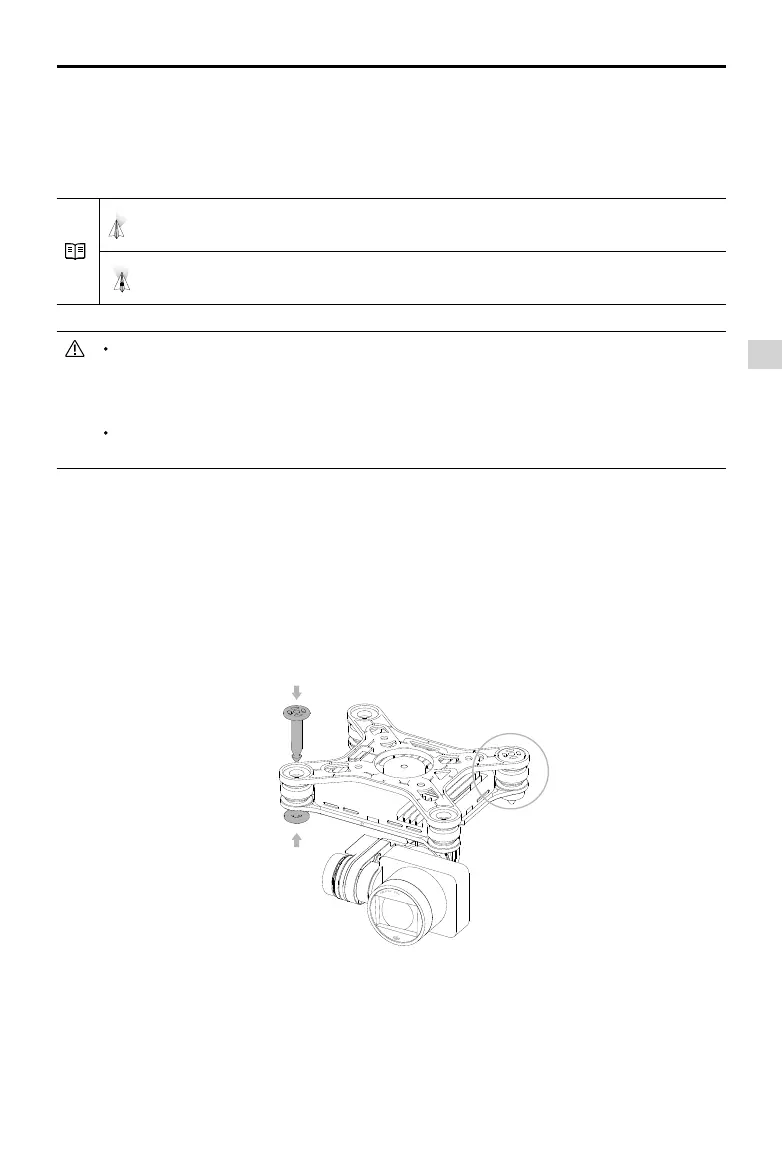

Anti-Drop Kit
The anti-drop kit helps keep the gimbal and camera connected to the aircraft. Two pins have been
mounted prior to shipping. If new or additional pins are required, see the diagram below. Press Part
①
through the hole of the vibration absorber and into the center hole of Part
②
, then lock them together
as shown
③
. Mounting the anti-drop kit pins diagonally from each other is recommended.
②
①
③

dji PHANTOM 3 Specifications

General

Max Flight Time	23 minutes
Battery Capacity	4480 mAh
Weight	1280 g (Including battery and propellers)
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Max Service Ceiling Above Sea Level	6000 m
GPS Mode	GPS/GLONASS
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Max Charging Power	100 W
Lens FOV	94°
Aperture	f/2.8
Shutter Speed	8s -1/8000s
Max Image Resolution	4000 x 3000
Max Bitrate	40 Mbps
Max Speed	16 m/s (ATTI mode, no wind)
Video Resolution	2.7K: 2704x1520p 24/25/30 (29.97); FHD: 1920x1080p 24/25/30/48/50/60
Operating Temperature	0°C to 40°C
Transmitter Power (EIRP)	20 dBm (FCC), 14 dBm (CE)
Video Recording Modes	2.7K, FHD
Camera Sensor	1/2.3" CMOS
ISO Range	100-3200 (video), 100-1600 (photo)
Photo Formats	JPEG, DNG
Video Formats	MP4/MOV (H.264)
Remote Controller Operating Frequency	2.4 GHz
Mobile Device Holder	For mobile phones or tablets
Hover Accuracy Range	Vertical: +/- 0.5 m; Horizontal: +/- 1.5 m
