Flight Controller
The Phantom 4’s controller is based on DJI flight controller with several enhancements such as new flight mode
and new safe mode. Three safe modes are available: Failsafe, Return Home and Dynamic Home Point. These
features ensure the safe return of your aircraft if the control signal is lost. A flight recorder stores crucial
flight data for each flight.
Flight Mode
Three flight modes are available. The details of each flight mode are found in the section below:
P mode (Positioning) : P mode works best when GPS signal is strong. There are three different states of P
mode, which will be automatically selected by the Phantom 4 depending on GPS signal strength and Vision
Positioning sensors:
P-GPS: GPS and Vision Positioning both are available, and the aircraft is using GPS for positioning.
P-OPTI: Vision Positioning is available but the GPS signal is not. Aircraft is using only Vision Position-
ing for hovering
P-ATTI: Neither GPS or Vision Positioning available, aircraft is using only its barometer for positioning, so only
altitude is controlled.
A mode (Attitude): GPS and Vision Positioning System is not used for stabilization. The aircraft only uses
its barometer to stabilize. The aircraft can automatically return home if remote control signal is lost if the
Home Point is recorded successfully.
F mode (Function): Intelligent Orientation Control (IOC) is activated in this mode. For more information about
IOC, refer to the IOC in Appendix.
Use the Flight Controller mode switch to change the flight mode of the aircraft, refer to the “Flight Mode
Switch” on P24 for more information.
Flight Status Indicator

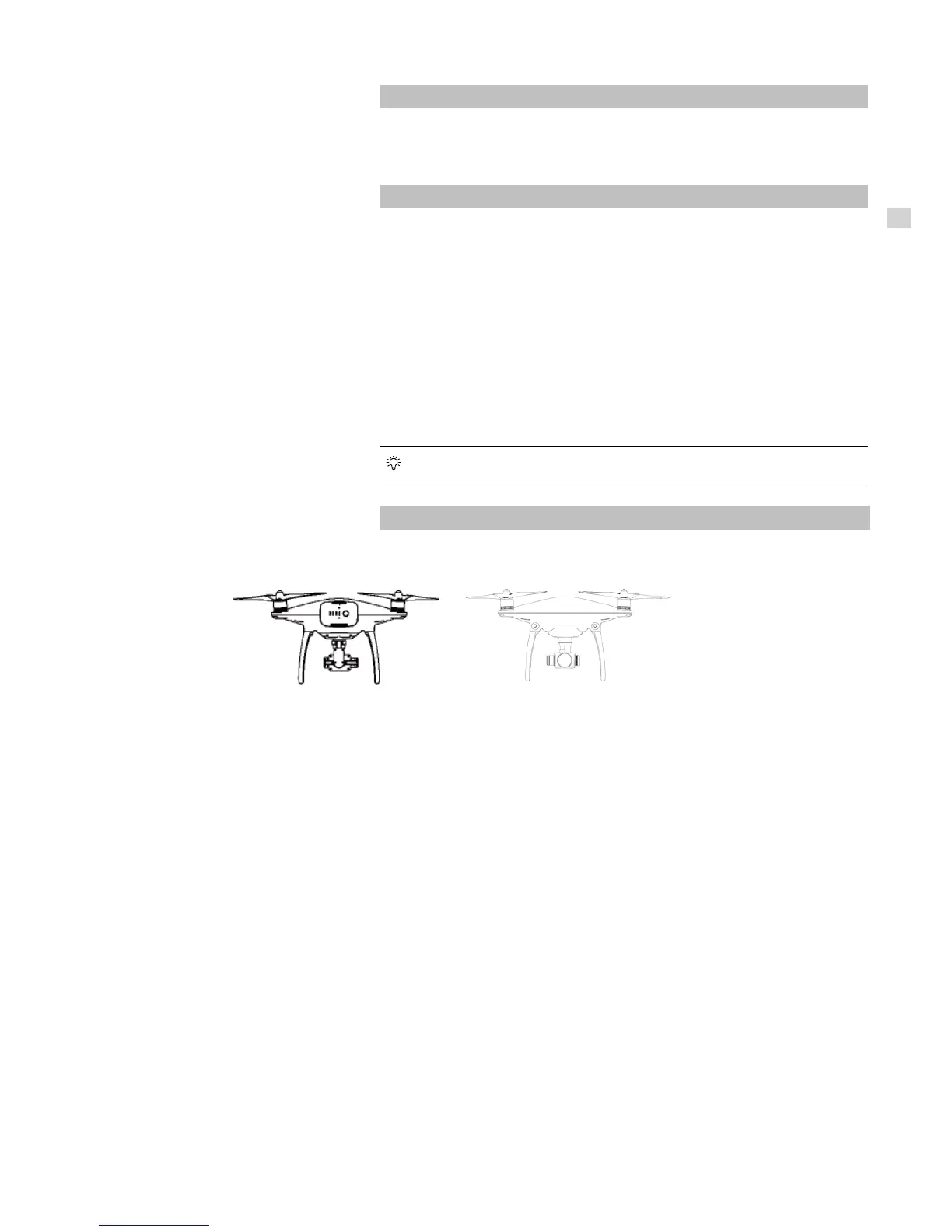

The Phantom 4 comes with the Front LED, Rear LED and Aircraft Status Indicator. The positions of these LEDs are
shown in the figure below:
Front LED
Rear LED
Aircraft
Status
Indicator
The Front and Rear LED show the orientation of the
aircraft. The Front LED displays solid red and the Rear LED displays solid green.
Aircraft Status Indicator shows the system status of the flight controller. Refer to the table below for more
information about the Aircraft Status Indicator:
To Next Page
