DKS 2351 - Series Control Boards

Board 9 System Relay 11 Board 10 System Relay 12 Board 16 System Relay 18 Board 15 System Relay 17 Board 14 System Relay 16 Board 13 System Relay 15 Board 12 System Relay 14 Board 11 System Relay 13
Board 1
System Relay 3
Board 2
System Relay 4
Board 8
System Relay 10
Board 7
System Relay 9
Board 6
System Relay 8
Board 5
System Relay 7
Board 4
System Relay 6
Board 3
System Relay 5
1833, 1835, 1837,
1838 Controller
Tracker boards 1-8 connect to weigand terminals 7-8-9 in the access controller.
Tracker boards 9-16 connect to weigand terminals 11-12-13 in the access controller.
Command Relay 2 (terminals 13-14)
controls boards 1-8.
Command Relay 1 (terminals 15-17)
controls boards 9-16.
13 14 15 16 17
10
9
1
2
3
4
5
6
7
8
DOORKING, INC., INGLEWOOD, CA 90301
Title:
Date: Rev.Dwg. No.

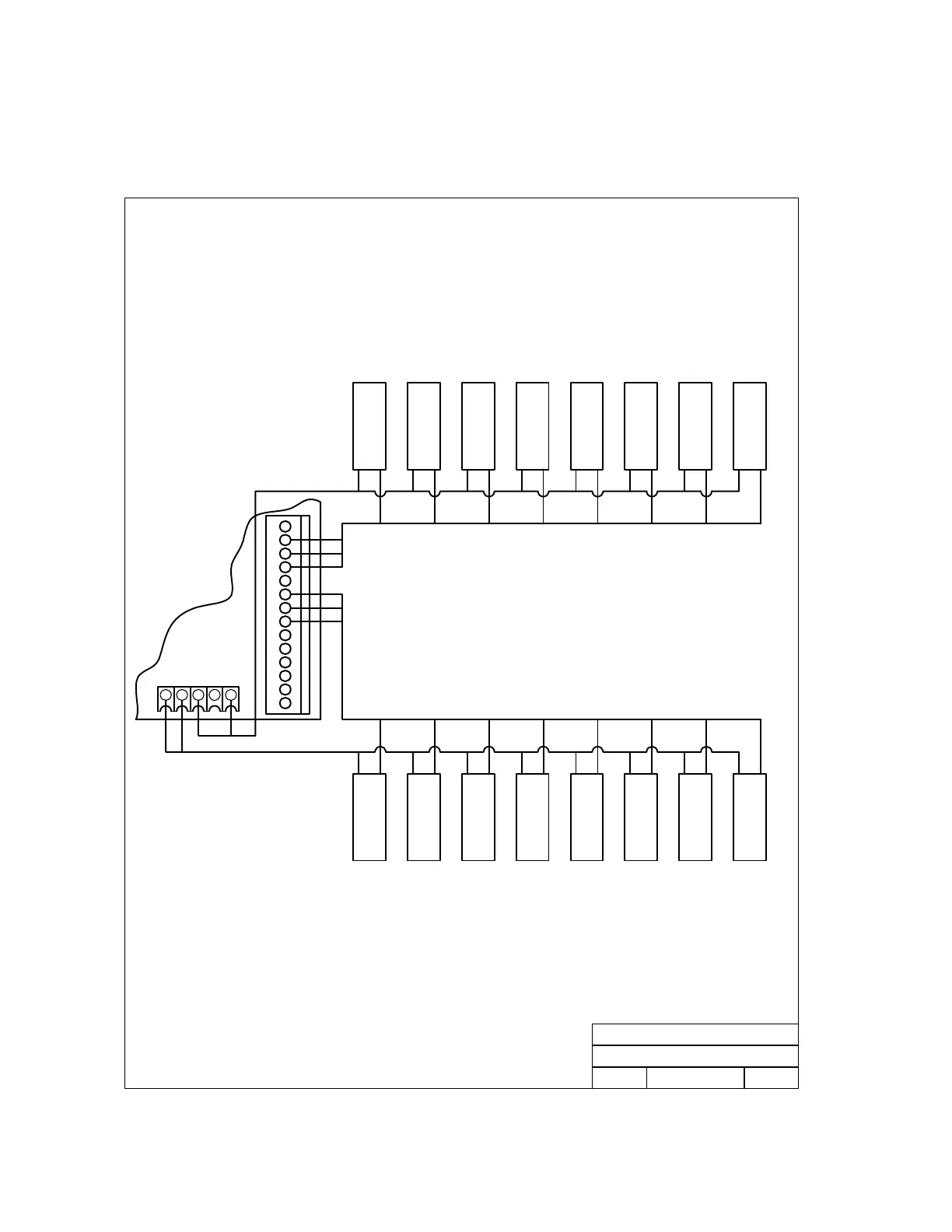

Board and Relay Identification for 30 Series Controller
3/03 M2351-065-15
A
Board and Relay Identification for 30 Series Controller
11
12
13
14
Page 18 2351-065-G-12-07
