DKS 2351 - Page 20

1 2 3 4 5 6 7 8
NO NC NO NC NO NC
DOORKING
2351-010
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
P2
POWER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
P1
Gate 1 - DATA IN
Gate 1 - DATA BUSY
Gate 2 - DATA IN
Gate 2 - DATA BUSY
Gate 1, 2 - DATA COMMON
Weigand In - DATA 0
Weigand In - DATA 1
Weigand In - COMMON
12 VDC Power
Board Communication
Gate 1 - Power Monitor
Gate 1 - Power Monitor
Gate 2 - Power Monitor
Gate 2 - Power Monitor
Door Ajar Input
Reset Alarm Input
Command Relay Input
Request To Exit Input
Monitor Relay
Monitor Relay
Alarm Relay
Alarm Relay
Output Relay
Output Relay
Weigand Out - Common
Weigand Out - Data 1
Weigand Out - Data 0
Battery Negative (-12 VDC)
Battery Positive (+12 VDC)
Earth Ground
16 VAC Input Power
16 VAC Input Power
DOORKING, INC., INGLEWOOD, CA 90301
Title:
Date: Rev.Dwg. No.
Terminal Identification

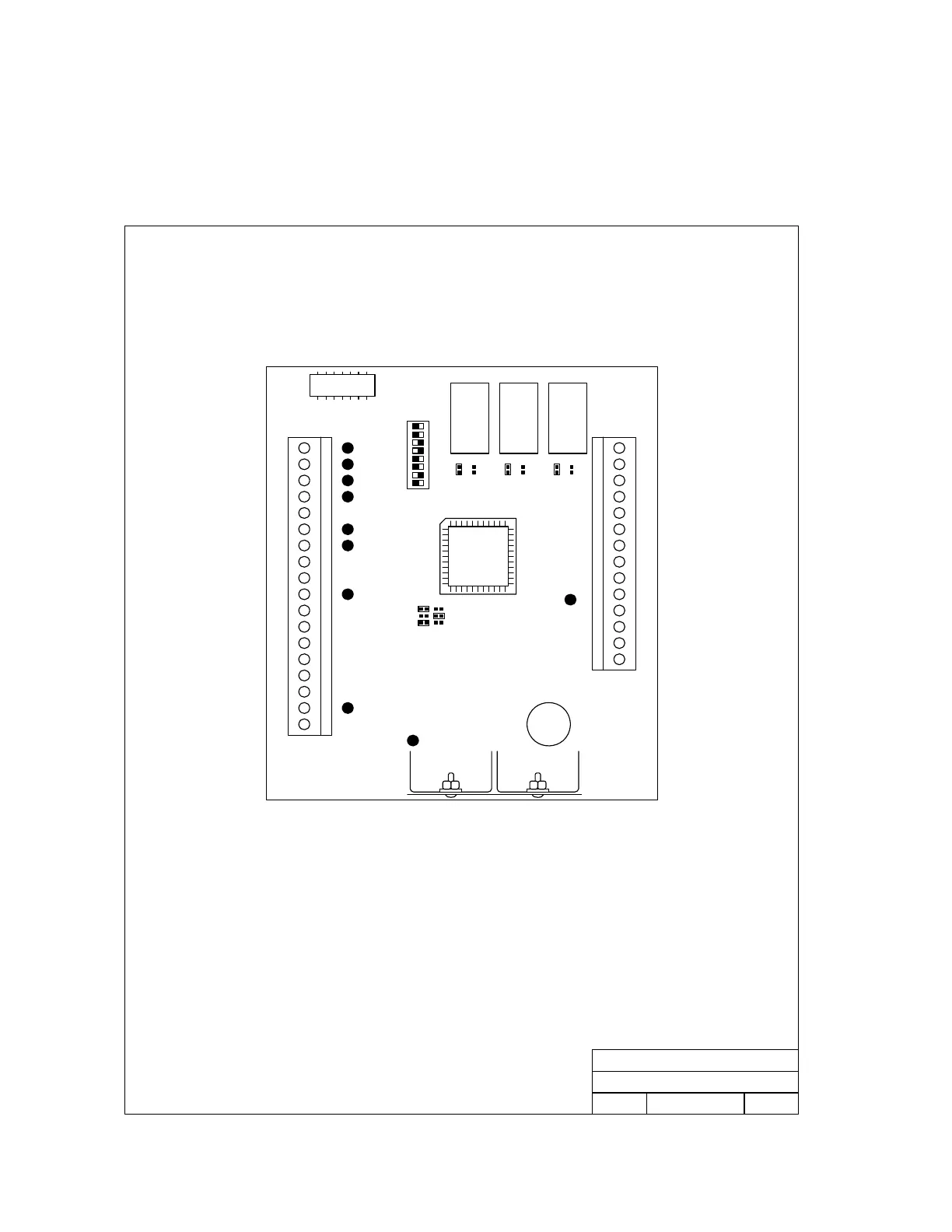

2351 Board Terminal Identification
4/02 M2351-065-4
A
Page 20 2351-065-G-12-07
