5
Installation Instructions
Prepare the engine for installation
1. Check to see that all screws and bolts are tight. Check carefully for
any cracks, broken or missing parts. Tighten or replace any damaged
or missing parts before proceeding.

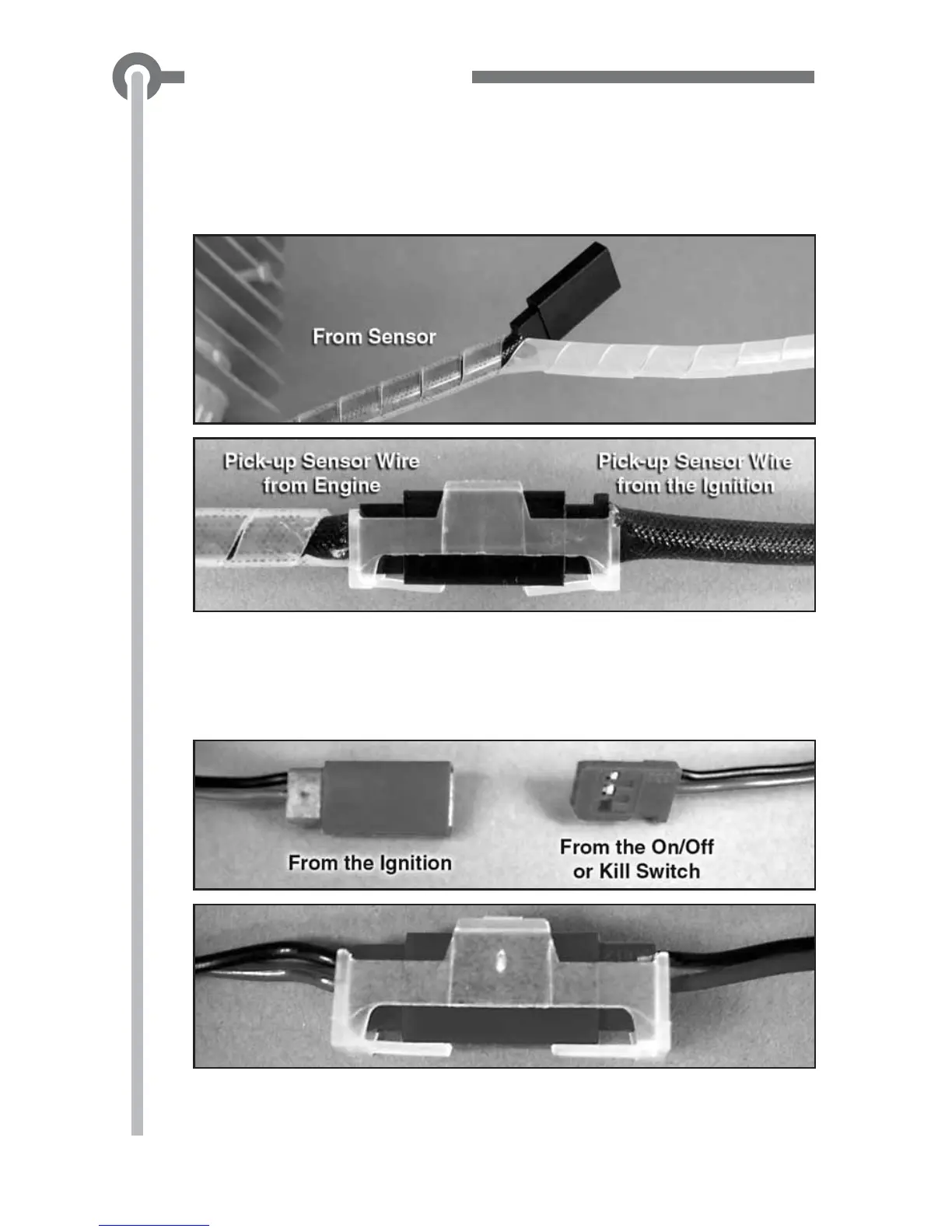

2. Install the silicone wire cover over the pick up lead coming from
the engine (cut the excess silicone wire cover) and connect the lead
to the pick–up lead from the Electronic Ignition Module. Secure
the connection with the included three pin connector securing clip.
3. Connect the on/off switch lead to the red connector from the
ignition control module using the lead from the on/off switch or
with the included three pin connector with pig tail. Use one of the
included three pin securing clips to secure the connection.
