DMN-WESTINGHOUSE AL-BL Rotary Valves
Code: AL-E.B.01.B 11-2012
15
3.1.3. Construction

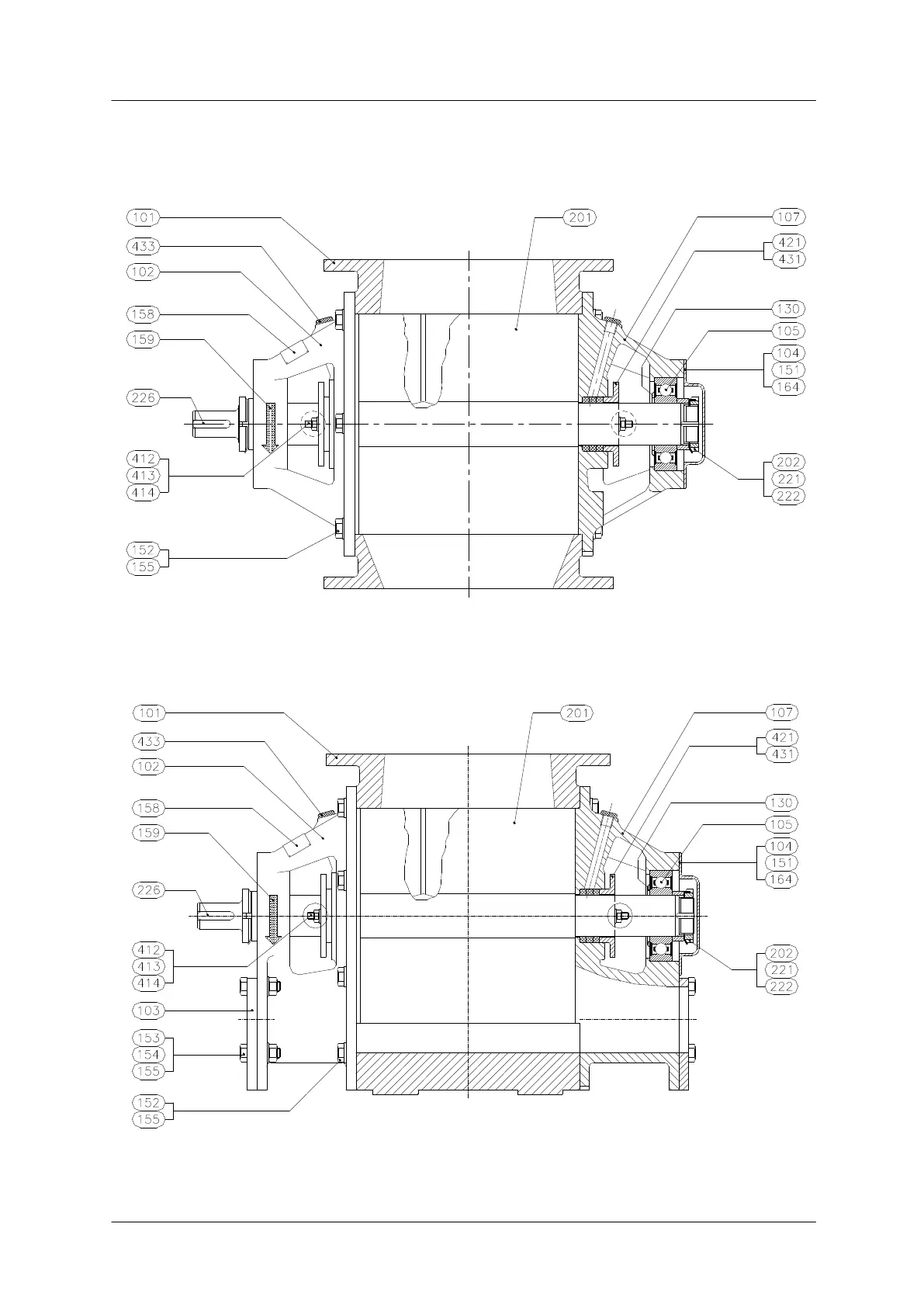

3.1.3.1 General assembly and parts list type AL-BL series
Fig. 3.1.3.1 Execution AL-AXL-AML.
Fig. 3.1.3.2 Execution BL-BXL-BXXL.
