DMN BL200 - Page 39

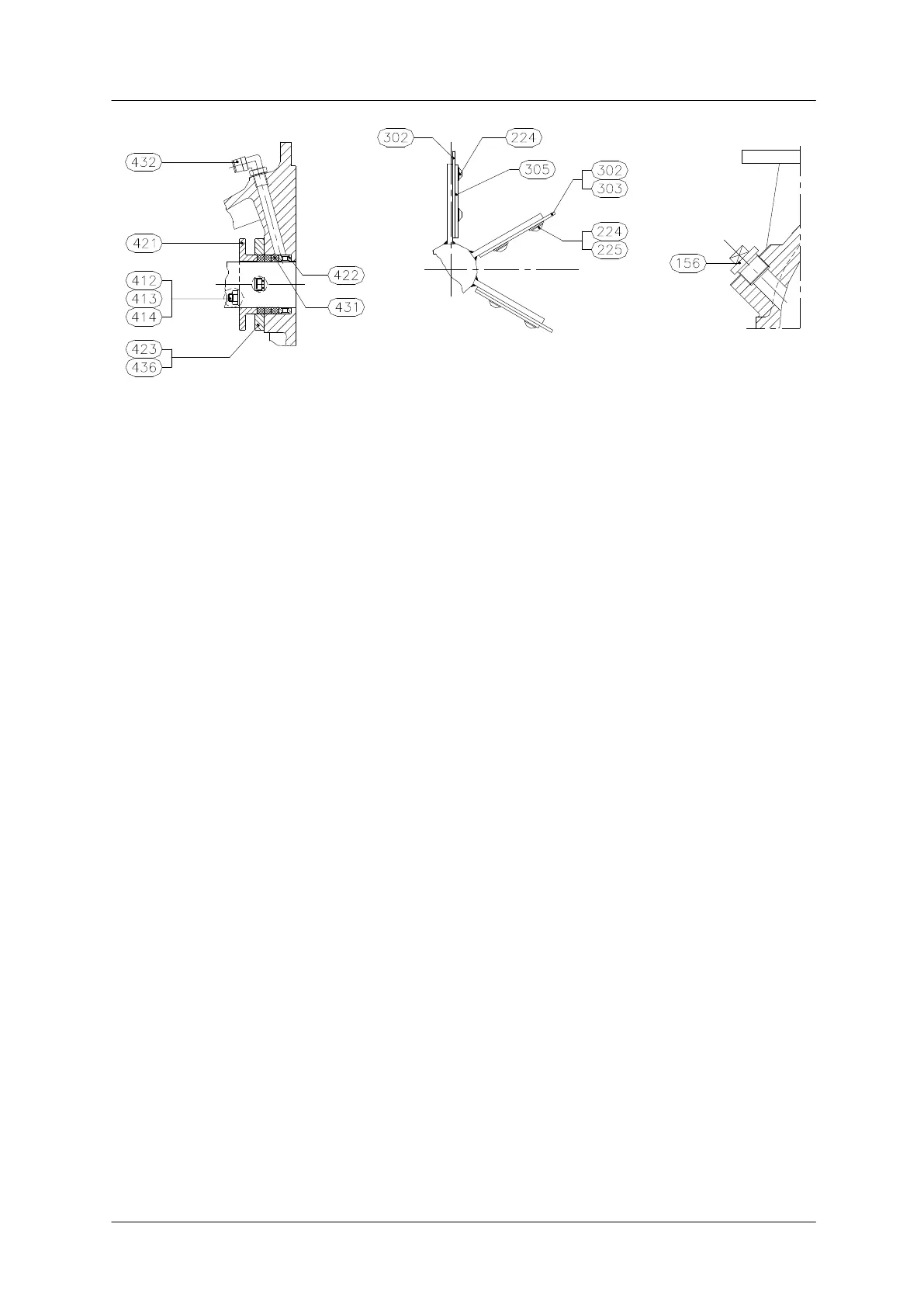

DMN-WESTINGHOUSE AL-BL Rotary Valves
Code: AL-E.B.01.B 11-2012
16
101 Body
102 End cover
103 Flange
104 Cover
105 Ball-bearing
107 End cover
130 Nilos ring
151 Bolt
152 Bolt
153 Nut
154 Bolt
155 Washer
156 Plug
158 Name plate
159 Arrow
164 Washer
201 Rotor
202 Spacer ring
221 Safety ring
222 Locknut
224 Head screw
225 Washer
226 Key
302 Rotor blade
303 Scraper blade
305 Clamp plate
412 Stud
413 Nut
414 Washer
421 Gland follower
422 Lantern ring
423 Extension piece
431 Gland packing
432 Coupling
433 Plug
436 Cylinder bolt
