Additional Programming for 7063 and 7073 Thinline Keypads
The 7063 and 7073 keypads allow users to present a proximity credential to the built-in proximity reader located in
the keypad backlit logo area. Users can also manually enter their user code into the keypad. The keypad veries
the user code and its authority with the panel. Additionally, the 7073 activates its on-board Form C relay releasing
a door strike or magnetic lock. To provide added exibility, the 7073 Keypad allows connection of an external
Wiegand output compatible reader.
Programming Cards into the System
This programming feature operates on 7063 and 7073 keypads only. Access the User Menu in one of two ways. When
MENU? NO YES displays, choose YES and present your proximity credential to the reader or manually enter your user
code into the keypad.
From the User Menu, select USER CODES?. Choose ADD. At the ENTER CODE: - display, present the credential to the
reader. The keypad works by reading the 4 or 5-digit user code from the data sent by the access control reader. For
more information, refer to Entry Cards in the programming section of this document and the following User’s Guide
section on adding, deleting, and changing user codes.
7063 and 7073 User’s Guide
There are three different sections: Keypad Arming and Disarming, Keypad Door Strike, and Keypad Entry Delay. All
of the examples displayed assume that CLOSING CODE is YES in panel programming.
Note: Figures 8 through 11 show the user presenting their card to the keypad. When an external reader is
connected to a 7073 keypad, the user presents their card to the reader rather than to the keypad.
Keypad Arming and Disarming
Area system Arming and Disarming
Press CMD, the keypad displays ARM DISARM. Press the Select key under either option. The keypad displays ENTER
CODE: -. Present your card to the keypad or to an external reader connected to the 7073 keypad. Once validated
by the system, all areas assigned to your code arm or disarm automatically and the 7073 keypad Door Strike relay
activates.

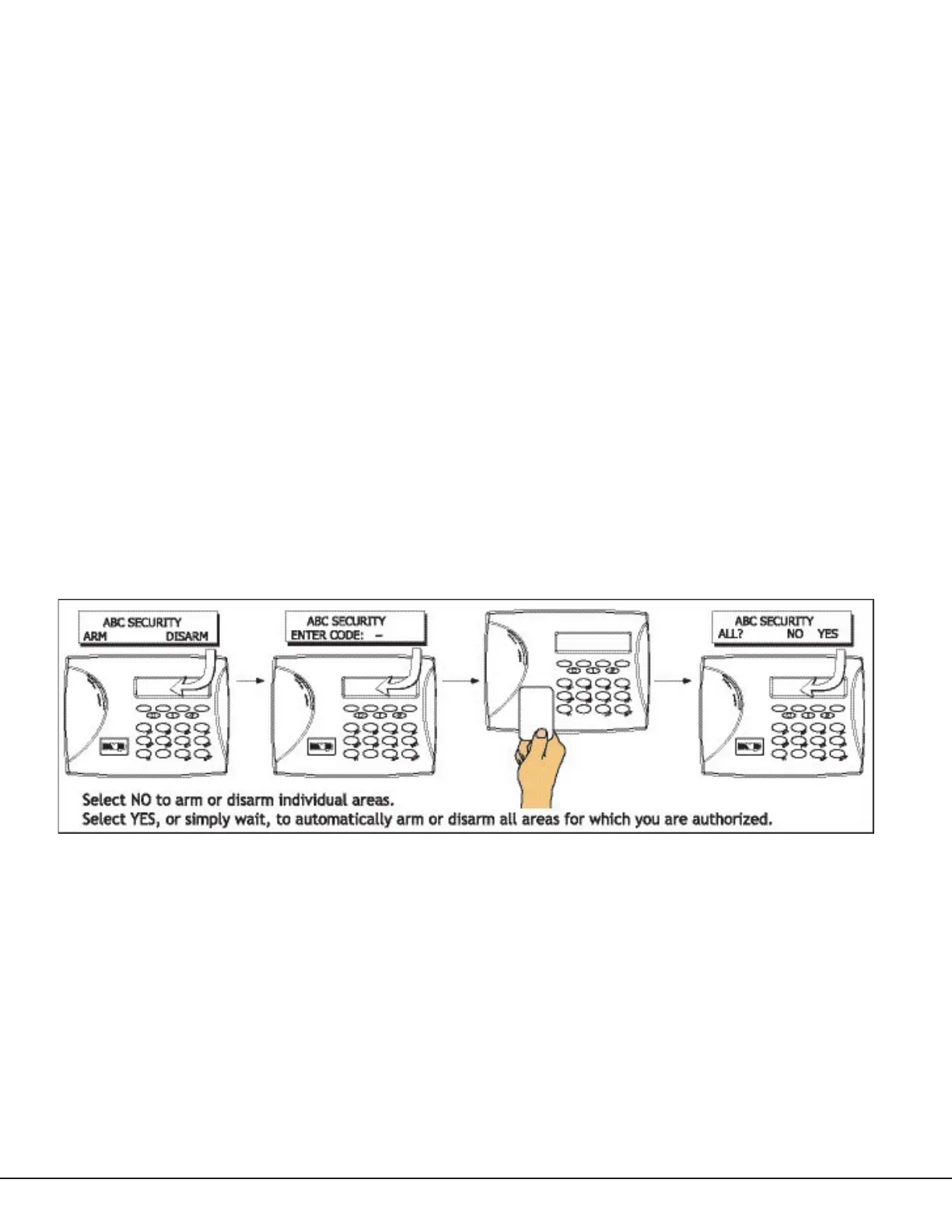

Figure 8: Area Arming and Disarming
To Next Page
