7000 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 33
KEYPAD ACCESS CONTROL
Area and All/Perimeter Door Strike
From the Status List, present your card to the reader. Once the system validates the card,
the Door Strike relay activates. Home/Away systems only activate the 7073/A, and 7173
Door Strike relay when arming and disarming.
ABC SECURITY
MON 10:20 AM
While the keypad displays the
Status List, present your access card.
Typically, the relay activates for 5 seconds during which
time you can open the door. Once you open the door,
you have 40 seconds to exit and close the door before
the Zone 2 Bypass expires.

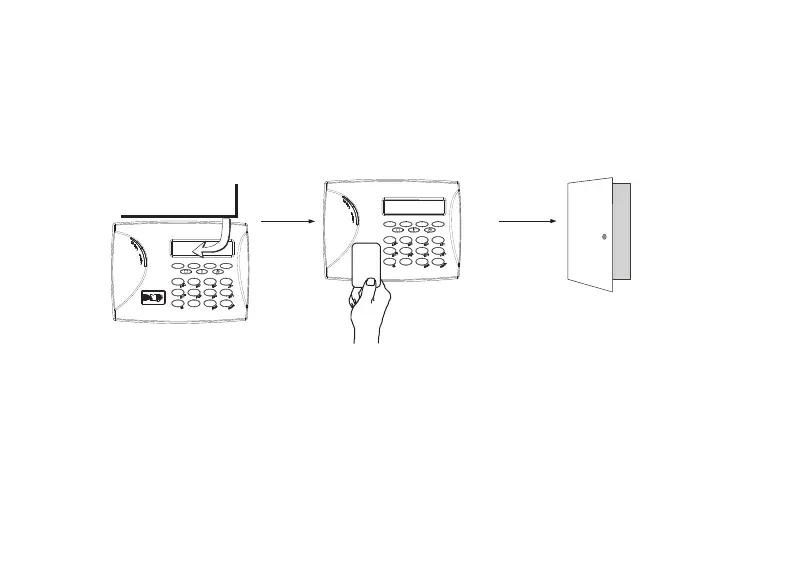

Figure 11: Present Access Card
To Next Page
