DMSI 10 - Fiber Port

www.dmsimfg.com
You can also nd the manual online at:
www.dmsimfg.com/StandAloneManual
HARDWARE DESCRIPTION
Fiber Port
Whenyouconnecttheberporttoanotherone,pleasefollowthe
gurebelowto connectaccordingly.Wrongconnectionwillcause
the port to work incorrectly.

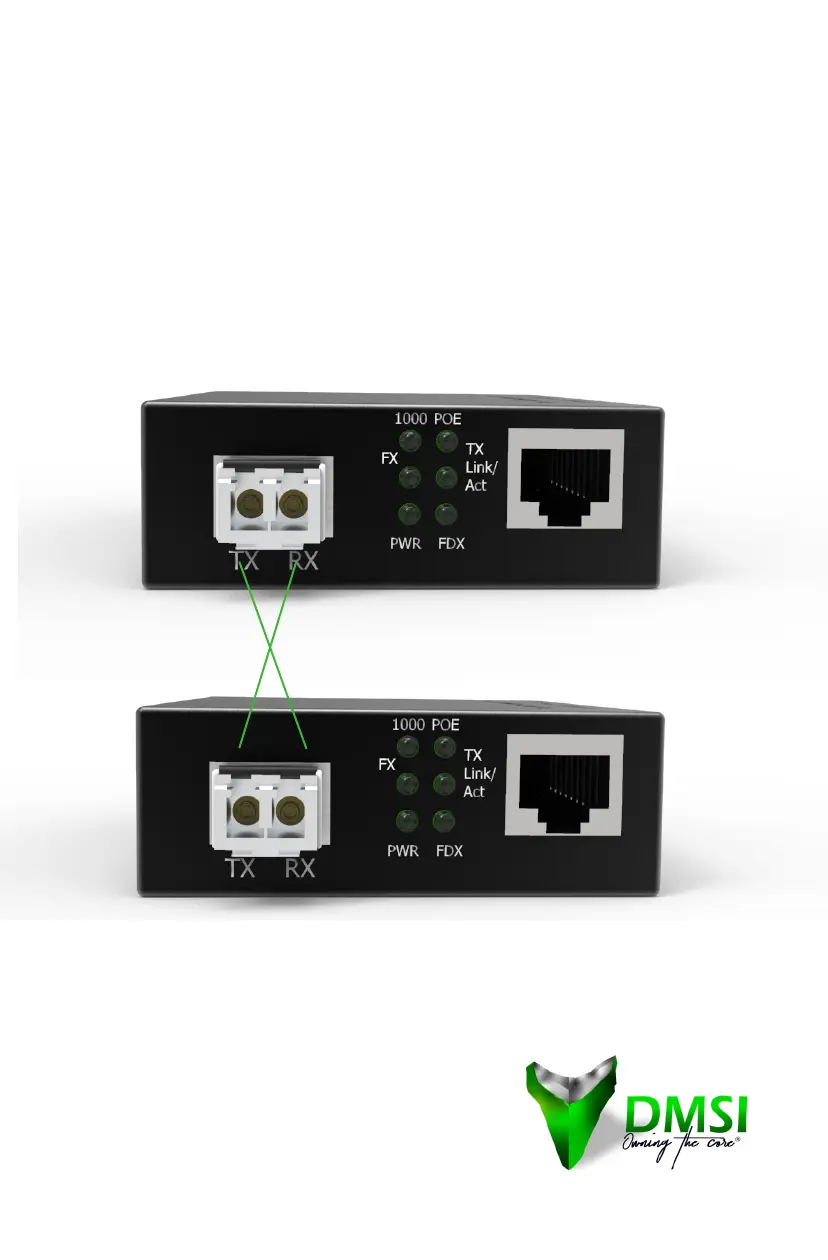

Cable Wiring (LC to LC)
TxA ---------------------------- ARx
Tx B ---------------------------- B Rx
