DMSI 10 - DIP Switch

www.dmsimfg.com
You can also nd the manual online at:
www.dmsimfg.com/StandAloneManual
HARDWARE DESCRIPTION
DIP Switch

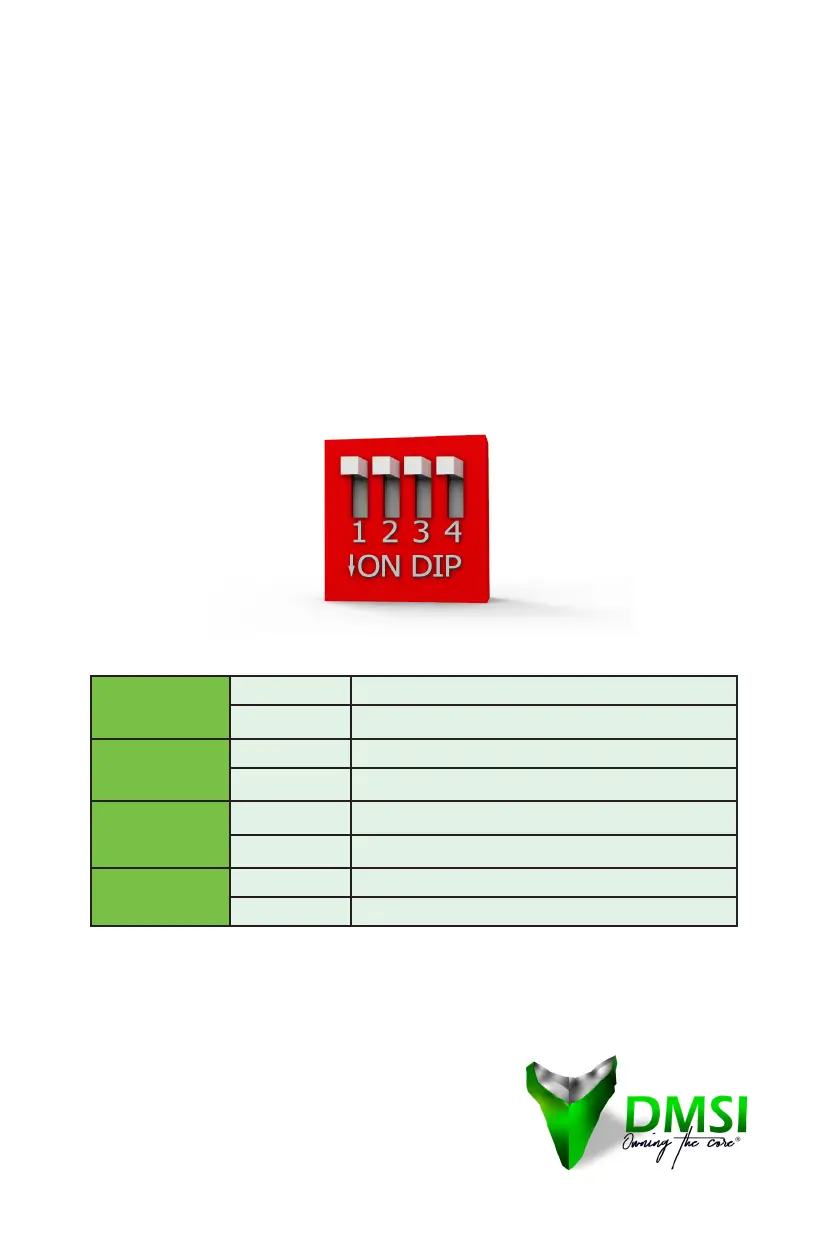

TheDIPswitchisusedtocongureoperationmodeforLLF(Link
Loss Forwarding) and operation mode for UTP/Fiber port. The
default value of DIP switch is OFF.
Stand-by Mode
SW1
ON Enable LFP
OFF Disable LFP
SW2
ON Cut-through(9K)
OFF Store-and-Forward
SW3
ON traccontrolon
OFF traccontrolo
SW4
ON FX speed is 100Mbps.
OFF FX speed is 1000Mbps.
