19
2
26 25
18
17
19 20
3
4
1
6
7
5
8
9
1112
21222324
1015 1416
13

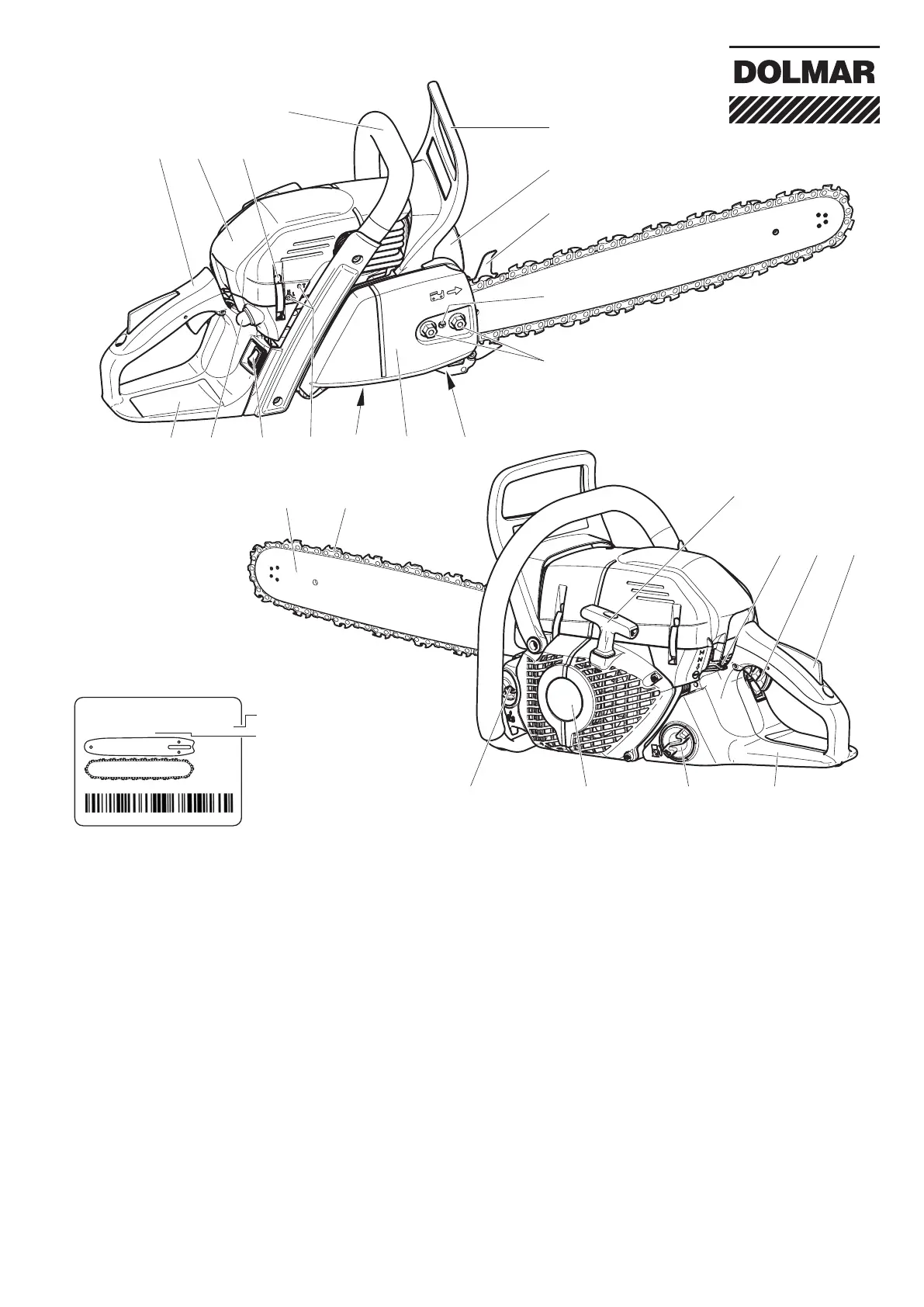

1 Handle
2 Cover
3 Hood lock
4
Tubular handle
5
Hand guard
(release for chain brake)
6
Mufer
7 Spike bar
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12
Adjusting screw for oil pump (bottom side)
13
Adjusting screws for carburetor
Identication plate (16)
Indicate when ordering spare parts!
Serial number
Year of manufacture
Denomination of components
14 ON/OFF switch for grip heating (PS-6100 H only)
15
Fuel pump (Primer)
16
Identication plate
17 Starter grip
18 Combination switch (Choke / ON / Stop)
19 Throttle lever
20
Safety locking button
21 Rear hand guard
22
Fuel tank cap
23
Fan housing with starting assembly
24 Oil tank cap
25 Chain (Blade)
26 Guide bar
