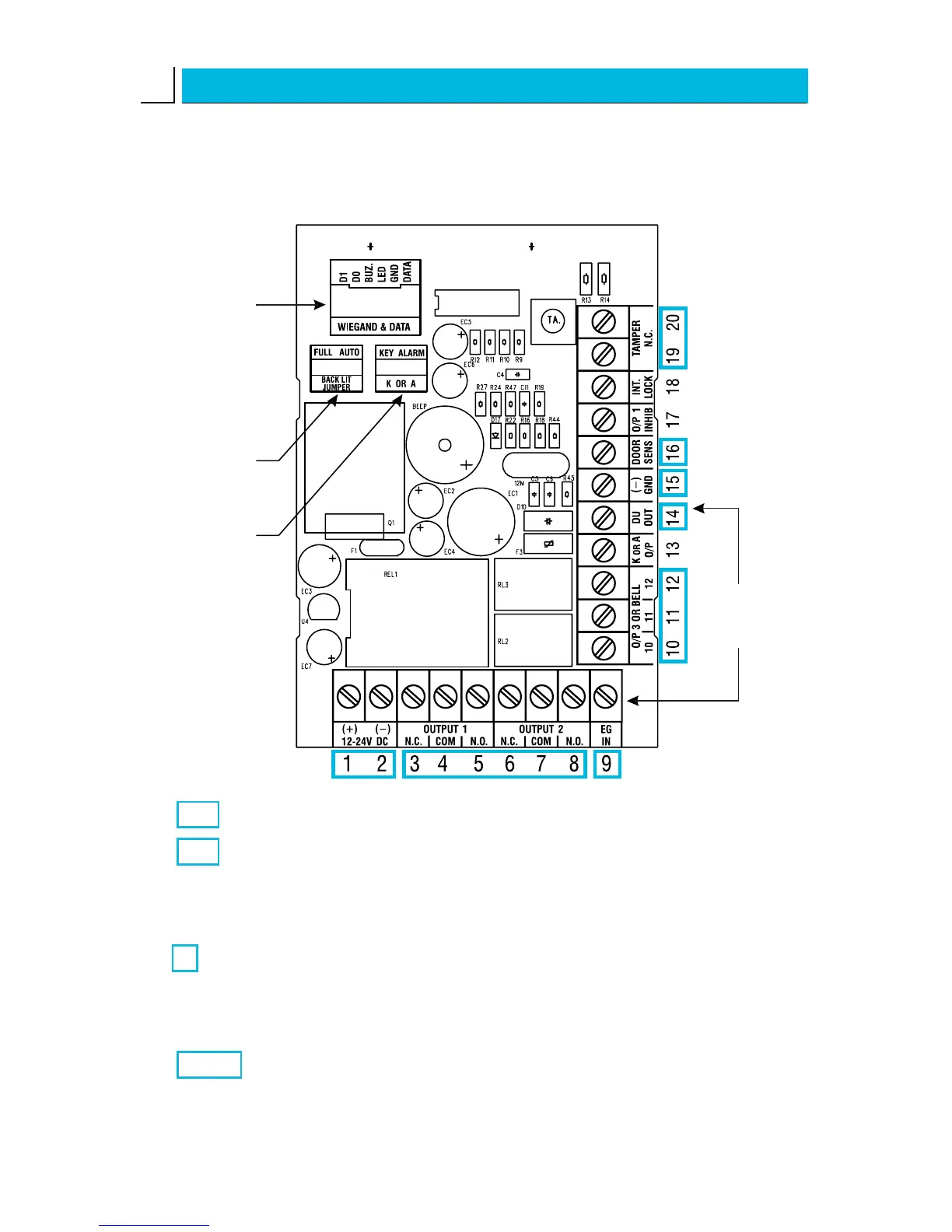

Connection Terminals
1
The DOLKPS1KB/DOLKPS1KB/DOLKSF1KB is a secure and
waterproof keypad with three relay outputs. It works independently
as a stand-alone keypad.
· 1-2 12-24V DC (Power Input Terminal)
· 3-8 OUTPUT 1 and OUTPUT 2 (Output Relay 1 and 2)
· N.C. (Normally closed)
· COM (Common ground)
· N.O. (Normally open)
· 9 EG IN ( Egress Input)
· The optional EG. IN terminal is (-) and commonly
connected to buttons. Buttons that are connected to EG.
IN will grant access when pressed.
· 10-12 O/P 3 OR BELL (Output Relay 3)
· 10 (Normally closed)
· 11 (Common ground)
· 12 (Normally open)
