Preparing installation
The respective wiring diagram is included in the scope of supply.
First, route the connection cables required for voltage supply and the RS485
interface.
Observe and follow the generally valid VDE regulations.
Prepare the connection cables for connection.

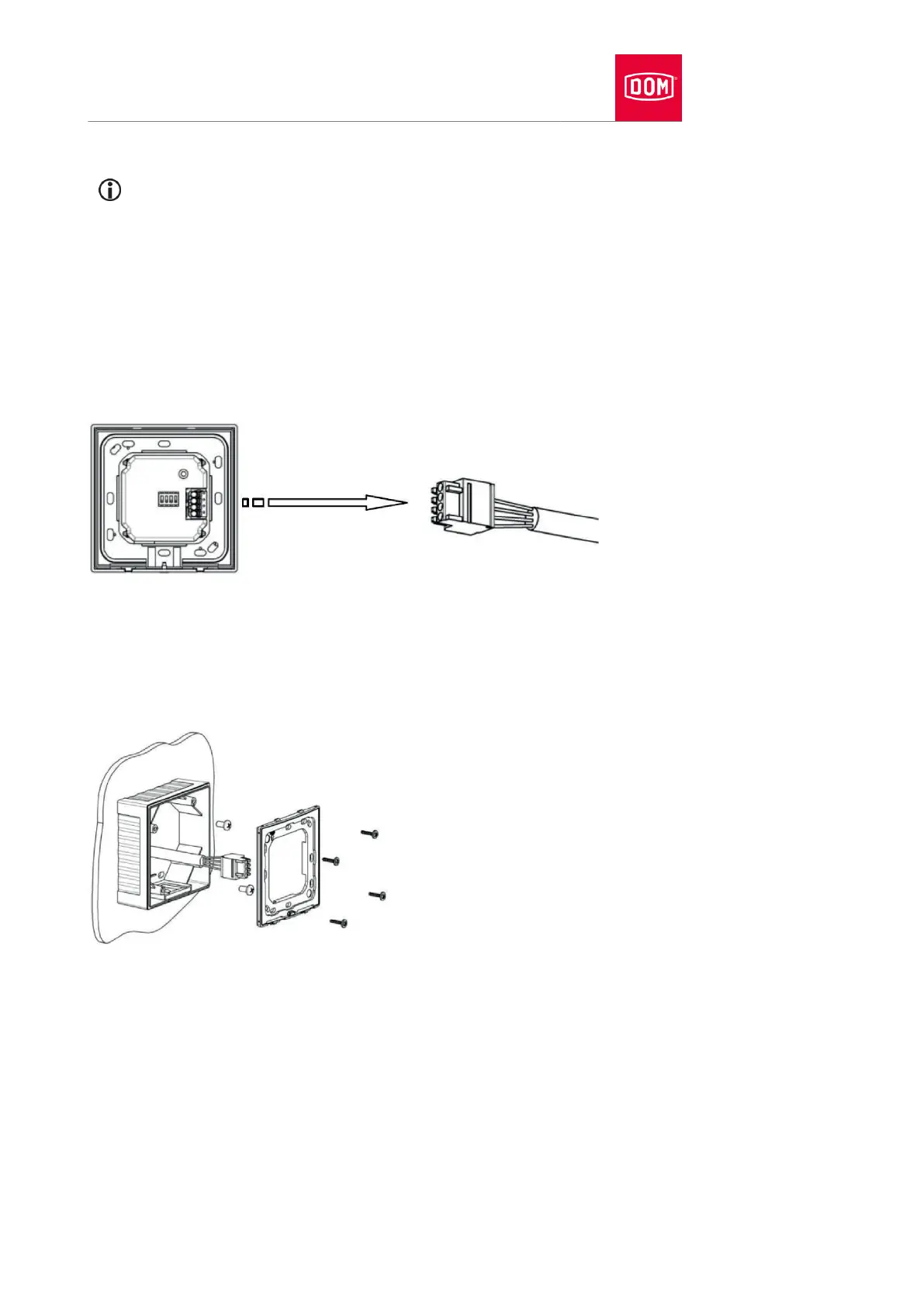

Pull the 4-pole connecting terminal off the reader module.
Make sure no voltage is applied.
Connect the connection cables according to the respective wiring diagram.
Installing the surface-mounted version
Use suitable screws to fasten the surface-mounting housing to the wall.
Fasten the back plate to the surface-mounting housing using the screws
included in the scope of supply.
