Assembling the device
72

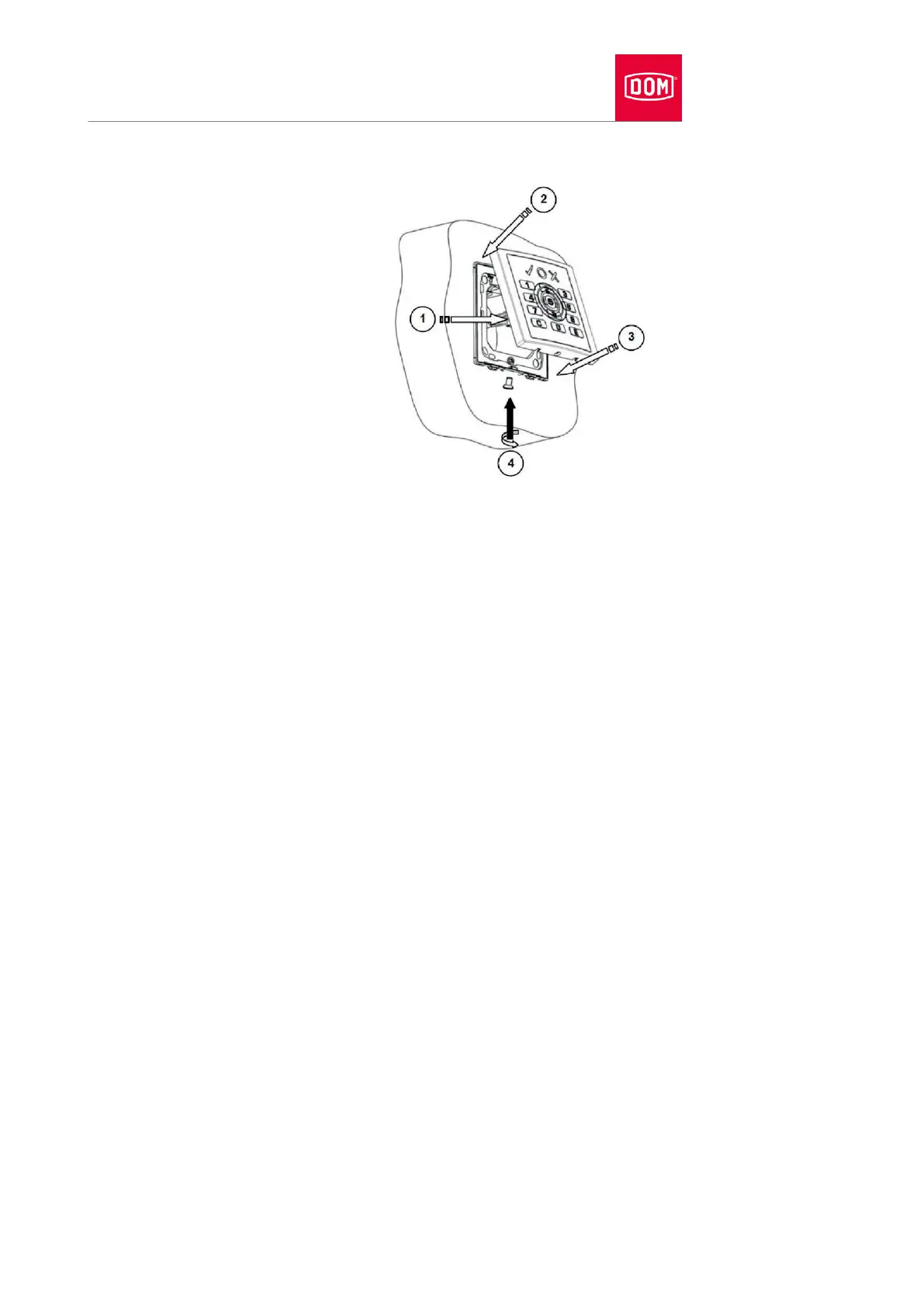

Connecting and mounting the reading module
 Fit the wired connecting terminal
(1) onto the contact pins.
 Hook the reader module into the
two safety clips (2).
 Press the reader module
downwards (3) until you hear it
click into place.
 After clicking into place, screw
the safety screws in (4).
 Now connect the Access Manager or Access Manager Terminal (control
unit); refer to page 88.
