CT4000 Electrical connection
25

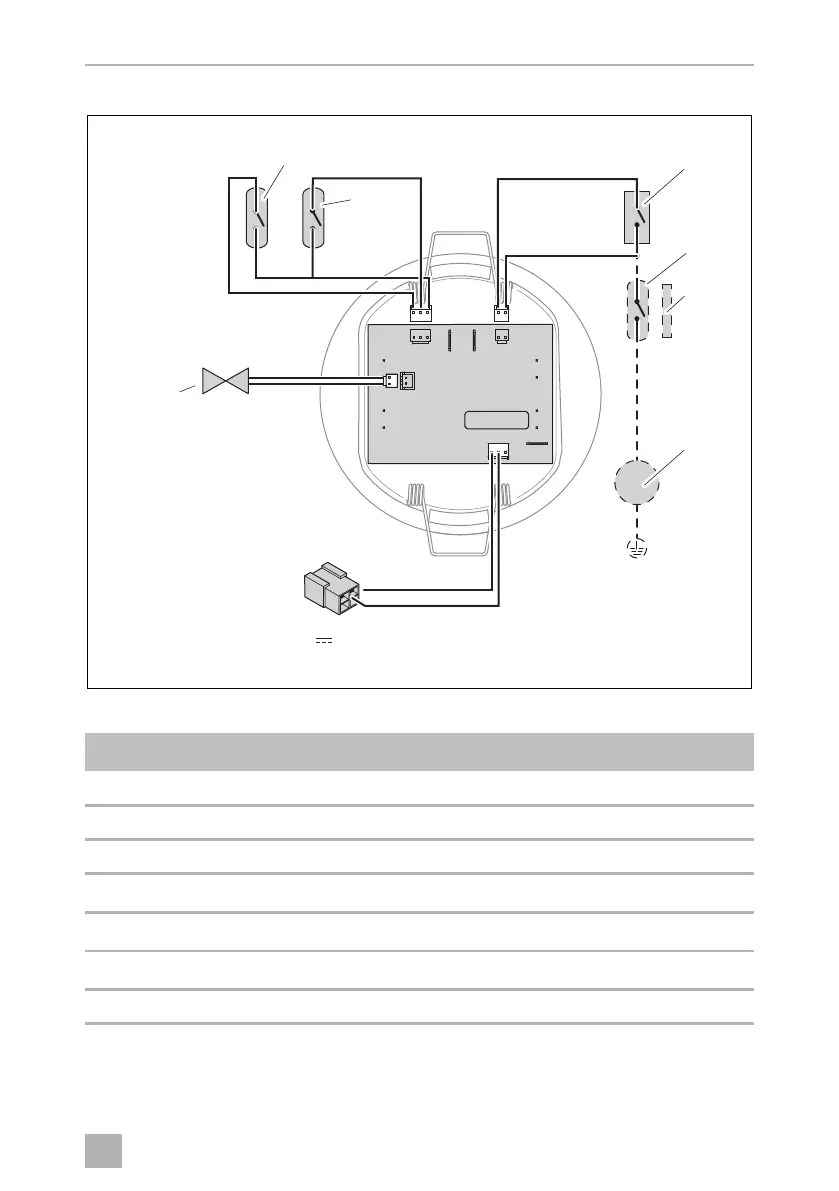

Wiring diagram for external water tank:
Key for fig. o:
No. Designation
1 Reed switch: Tank status 3/4 full
2 Reed switch: Tank status 1/1 full
3 Micro-switch: Position of cassette tank
4
With SOG
®
only: Reed switch for SOG
®
control
5
With SOG
®
only: SOG
®
control solenoid in the slide opening handle
6
With SOG
®
only: SOG
®
fan
7 Solenoid valve control
7. 5
X2X4X3
X1
X0
bl
4
bl
br
gr
bl
gr
gr
sw
br
ws
rt
ws
1
2
3
6
5
br
7
input
12 V
CT4000-I-AUS.book Seite 25 Dienstag, 6. März 2018 1:18 13
