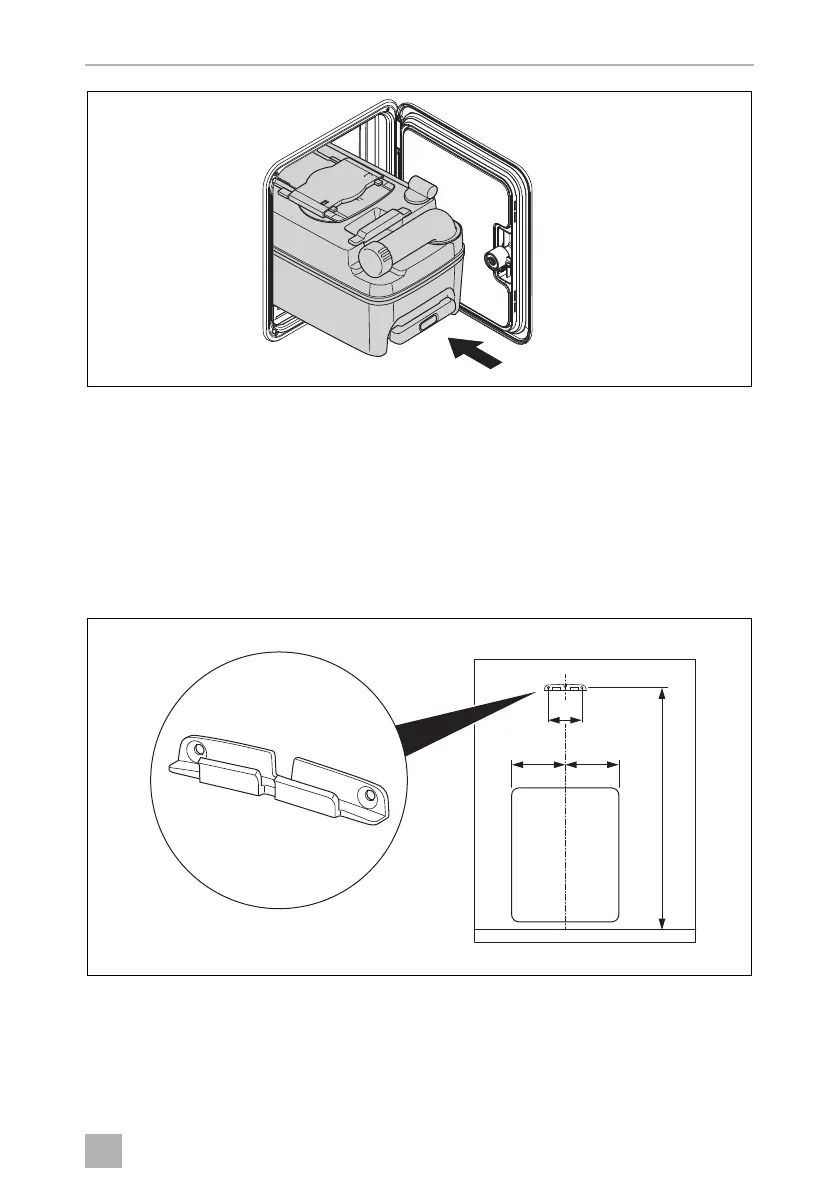

➤ Slide in the mobile tank cassette (fig. c).
5.5 Installing models CTLP, CTS
These models have a wall connection console. The control and operating panel is
integrated in the wall connection console.
Set up all models with wall connection console directly against the room wall.
A previously attached wall bracket is used to secure the toilet and the wall bracket.
➤ Screw on the wall bracket, level, at the following height (fig. d):
– CTLP4110: h = 479.5 mm
– CTS4110: h = 651.5 mm
