TANK MONITOR SYSTEMS
2
Safety Instructions 2
Features 2 - 3
Specications 3
Installation 4 - 5
Wiring Diagrams 6 - 7
Warranty 8
ENGLISH
SAFETY INSTRUCTIONS
WARNING: When using this device, always exercise
basic safety precautions, including the following:
• Read all instructions before installation or use.
• Never connect this device to any electrical circuit
with other than 12 or 24 volt Direct Current or
exceed the amperage draw listed below.
• Never install the indicator panel in an atmosphere
with potentially ammable or explosive vapors.
• Never install the probe cap with oat switches
into a tank that contains anything other than
fresh, gray or black water.
CAUTION: Dropping or rough handling of oat
switches may result in damage.

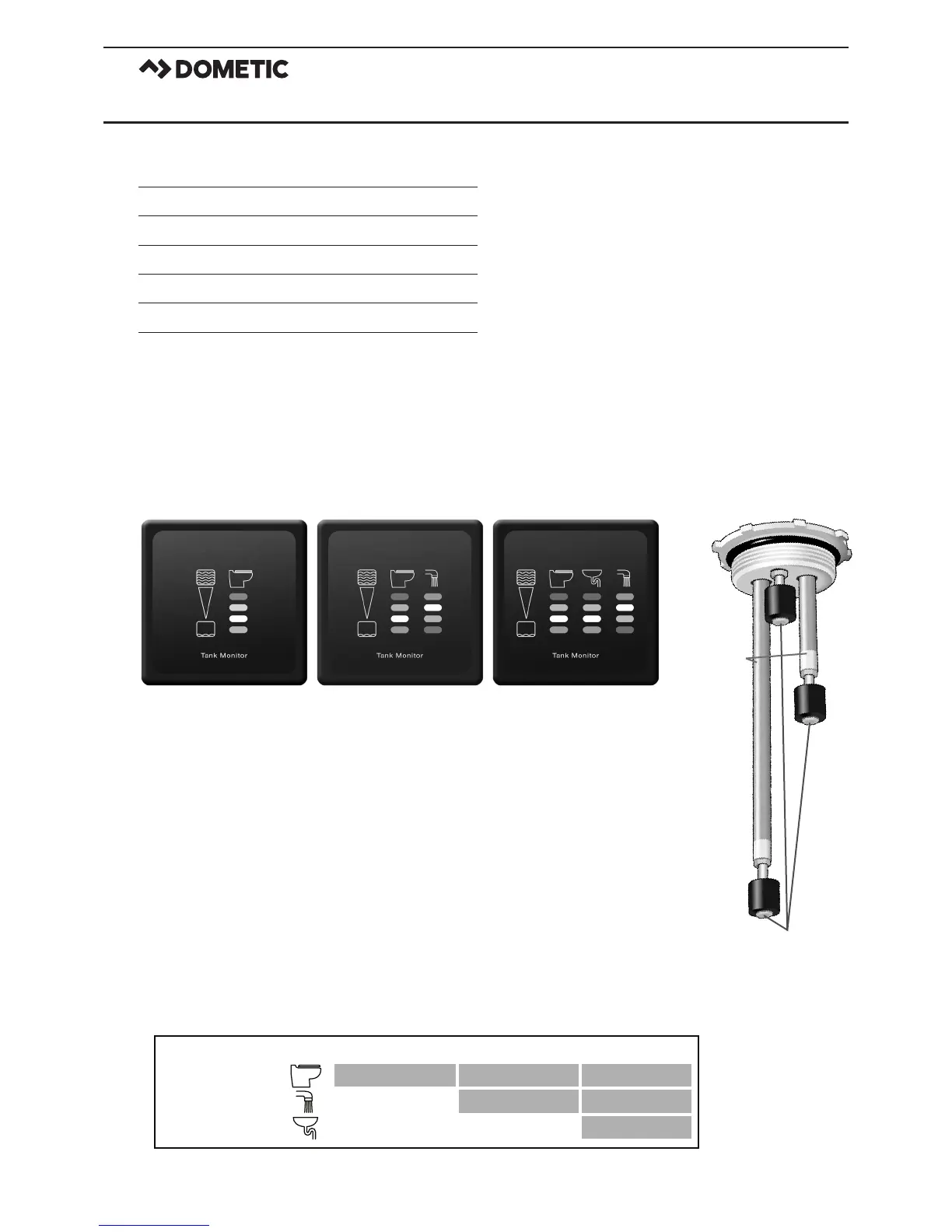

FEATURES
DTM04 DTM08 DTM12
Tank Monitor Application Chart
Probe
Cap
Adjustable
Stems
Float Switches
Tank Monitor Systems
Dometic Tank Monitor Systems permit remote sensing of liquid
levels in black or gray waste water, or potable freshwater tanks.
Three oat switches, which activate a set of four lights, are installed
in the desired tank. One oat activates a “Full” light when the liquid
is within 2 inches (51 mm) of the top inside surface of the tank. The
other oat switches are mounted on adjustable stems and can be
positioned to within 2 inches of the tank bottom. The stems are
semi-exible and ex with the sloshing of the tank contents. One
oat can be positioned to sense when the tank is empty and the
others to sense when the tank is 1/4 or 1/2 full, depending on the
application.
DTM04 DTM08 DTM12
Blackwater waste
Freshwater supply
Graywater waste
