FEATURES (continued)
• Four lighted level indicators for each tank application. One light is always “on” to indicate system power.
• Flexible probe design eliminates false readings from fouled oat switches.
• Available probe lengths t tanks up to 22 inches (559 mm) or 45 inches (1143 mm) in depth.
• Panel complements bathroom decor. International symbology eliminates confusion.
• Installs in any rigid tank with optional 3-inch NPT mounting ange.
• Each system operates on either 12 or 24 VDC.
• Probe cap provides clean-out tting for easy access to tank interior.
• Vent hose connection in probe cap (if applicable) permits connection of 5/8-inch (16 mm) vent hose.
• Optional shut-down relay plugs into circuit board to shut down toilet system when gray or black water waste
tank is full (DTM04 model only).
• Only one level light on at a time to eliminate confusion and save battery power.
• CE approved for electromagnetic compatibility.
SPECIFICATIONS
12 VDC DTM04 DTM08 DTM12
Without shut-down relay 0.008 A 0.016 A 0.024 A
With shut-down relay 0.145 A N/A N/A
24 VDC DTM04 DTM08 DTM12
Without shut-down relay 0.004 A 0.008 A 0.012 A
With shut-down relay 0.090 A N/A N/A
Electrical Current Draw

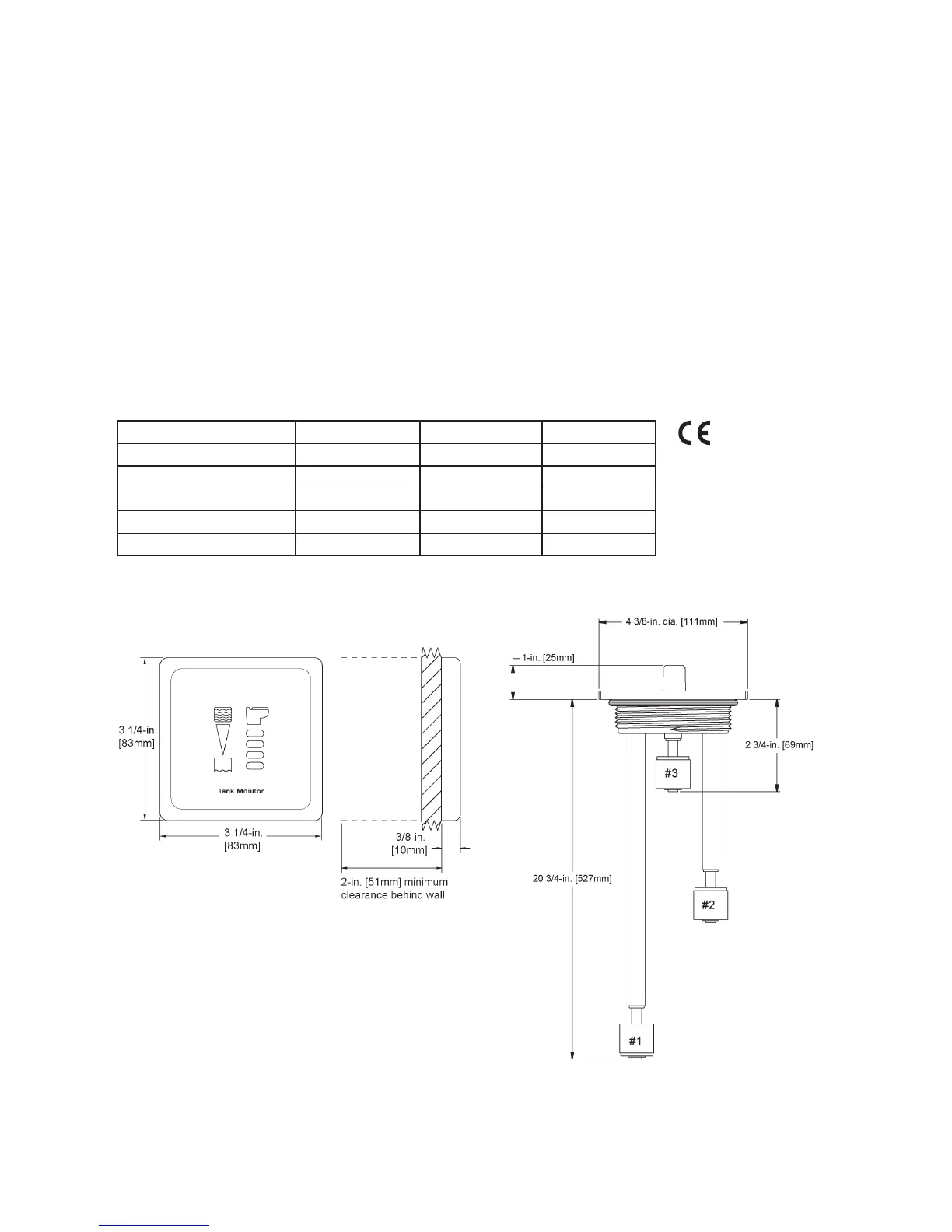

Dimensions
* Max length for 45-inch probes
is 43 3/4-in. (1111mm).
