Dometic DTM08 User Manual

TANK MONITOR SYSTEMS
6
DTM08 Tank Monitor System for
Blackwater and Freshwater Tanks
USE 18GA. OR LARGER STRANDED COPPER WIRE.
BLACKWATER TANK NOTE: RECESSED SHOULDER, THE
WHITE BAND, OR THE LETTERS "N-O" OF THE “EMPTY” FLOAT
ARE DOWNWARD.
FRESHWATER TANK NOTE: RECESSED SHOULDER, THE
WHITE BAND, OR THE LETTERS "N-O" OF THE “EMPTY” AND
“MID” FLOAT ARE DOWNWARD.

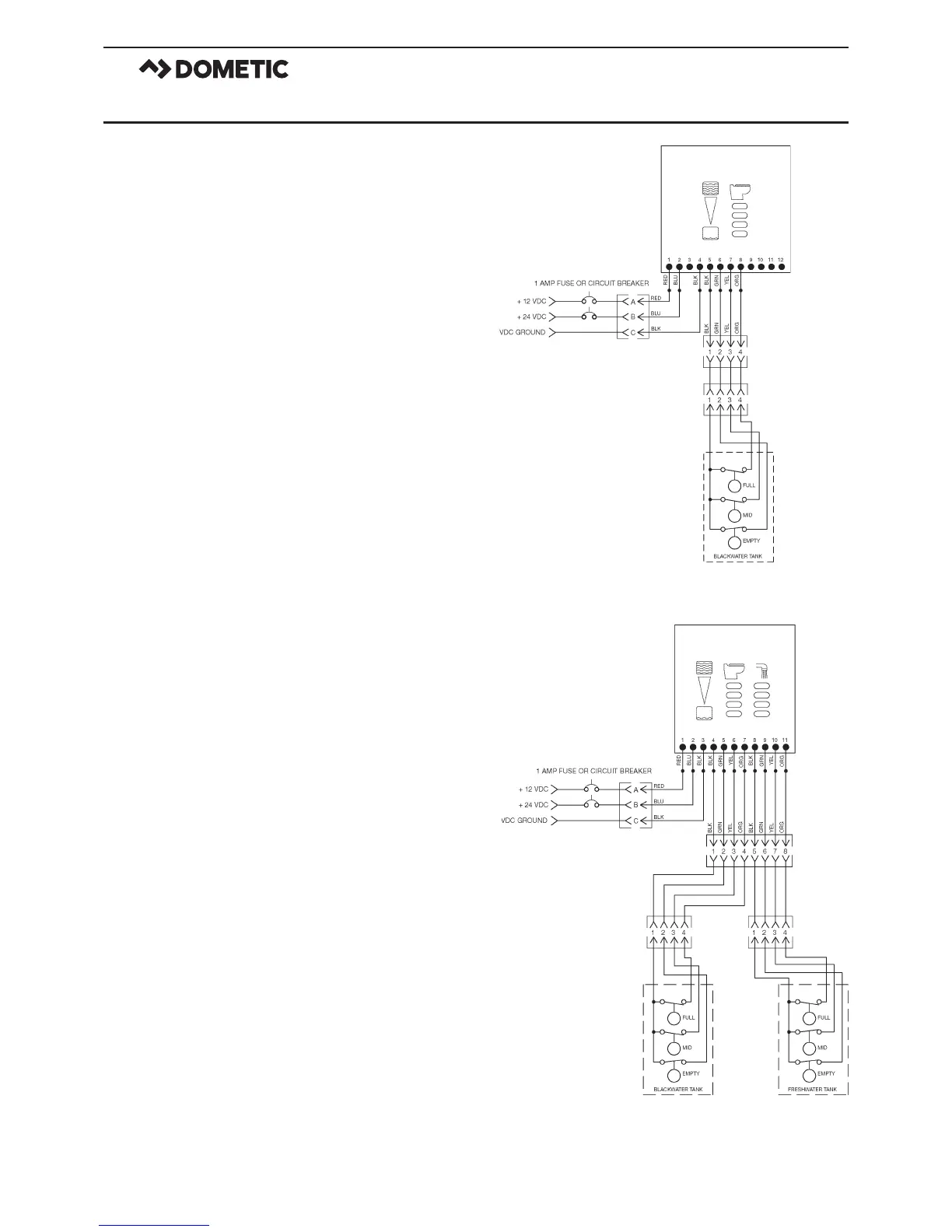

DTM08 TANK
MONITOR
WIRING DIAGRAMS
DTM04 Tank Monitor System for Blackwater
Waste Tank
USE 18GA. OR LARGER STRANDED COPPER WIRE.
IF OPTIONAL “TANK FULL” SHUT-DOWN RELAY IS
INSTALLED, PINS 10 AND 11 REQUIRE 14GA. OR LARGER
STRANDED COPPER WIRE.
BLACKWATER TANK NOTE: RECESSED SHOULDER, THE
WHITE BAND, OR THE LETTERS "N-O" OF THE “EMPTY”
FLOAT ARE DOWNWARD.
DTM04 TANK
MONITOR
