Dometic DTM08 - DTM12 Tank Monitor System Wiring; Shut-down Relay Wiring

7

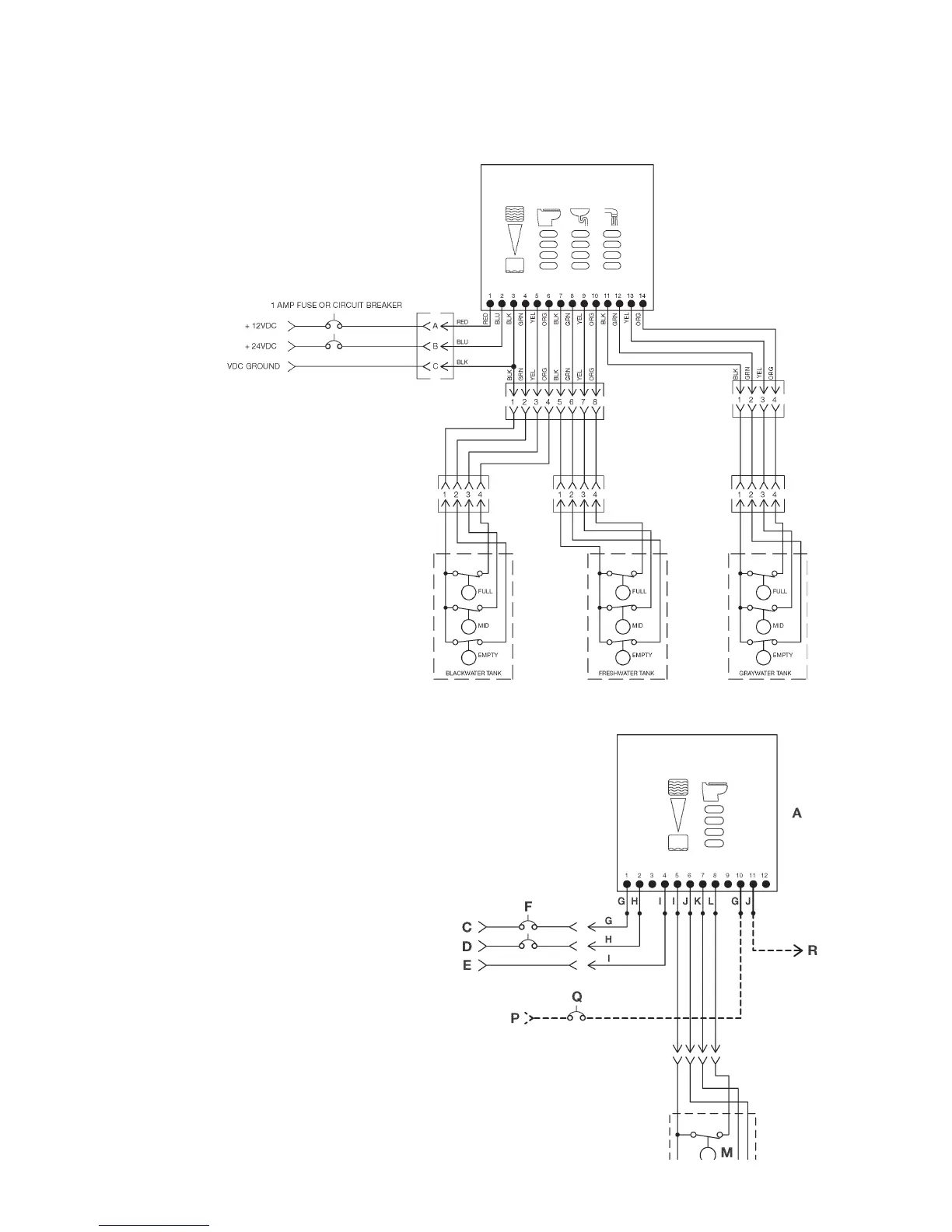

DTM12 Tank Monitor System for Blackwater and Graywater Tanks,
and Freshwater Tank
DTM12 TANK
MONITOR
Shut-down Relay with DTM04 Tank Monitor System
USE 12 OR 14 GAUGE STRANDED COPPER WIRE ON PINS 10
AND 11.
WITH RELAY INSTALLED AND DTM04 MODEL WIRED FOR A
BLACKWATER TANK, THE “FULL” FLOAT SWITCH WILL SHUT
OFF ELECTRICAL POWER TO THE TOILET SYSTEM.
Consult toilet system specications for proper fusing or
circuit breaker size. Do not exceed 30 amps.
USE 18GA. OR LARGER STRANDED COPPER WIRE.
BLACKWATER AND GRAYWATER TANK NOTE: RECESSED
SHOULDER, THE WHITE BAND, OR THE LETTERS "N-O" OF THE
“EMPTY” FLOAT ARE DOWNWARD.
FRESHWATER TANK NOTE: RECESSED SHOULDER, THE WHITE
BAND, OR THE LETTERS "N-O" OF THE “EMPTY” AND “MID”
FLOAT ARE DOWNWARD.
DTM04 TANK
MONITOR
with
shut-down relay
