ventilation requirements
The lower vent of the recommended kits is provided with proper
size openings. The ow of combustion and ventilating air must
not be obstructed.
The lower side vent is tted with a panel, which provides an
adequate access opening for ready serviceability of the burner
and control manifold of the refrigerator. This should be centered
on the back of the refrigerator.
general information
Provide necessary air circulation over the cooling unit. Open-
ings for air supply or for venting of combustion products shall
have a minimum dimension of not less than 1/4 inch.
Certied installations require one roof vent and one lower side
vent. Proper installation requires one lower fresh air intake
and one upper exhaust vent. The ventilation kits shown in this
manual have been certied for use with RM1350. The ventila-
tion kits must be installed and used without modication.
The certied vent system kits are listed in the following table.
certified vent system kits
5A =
Option 1
Roof Base
Roof Cover
Side Vent
3103633.XXX* or 3310893.XXX*
3103634.XXX* or 3310894.XXX*
3109349.XXX*
Option 3-E Upper side vent
Lower side vent
3109349.XXX*
3109349.XXX*
* Fill in “XXX” with color code numbers. For color codes, contact
your supplier.
An opening toward the outside at oor level in the refrigerator
compartment has to be provided for ventilation of heavier-than-
air fuel gases
CAUTION

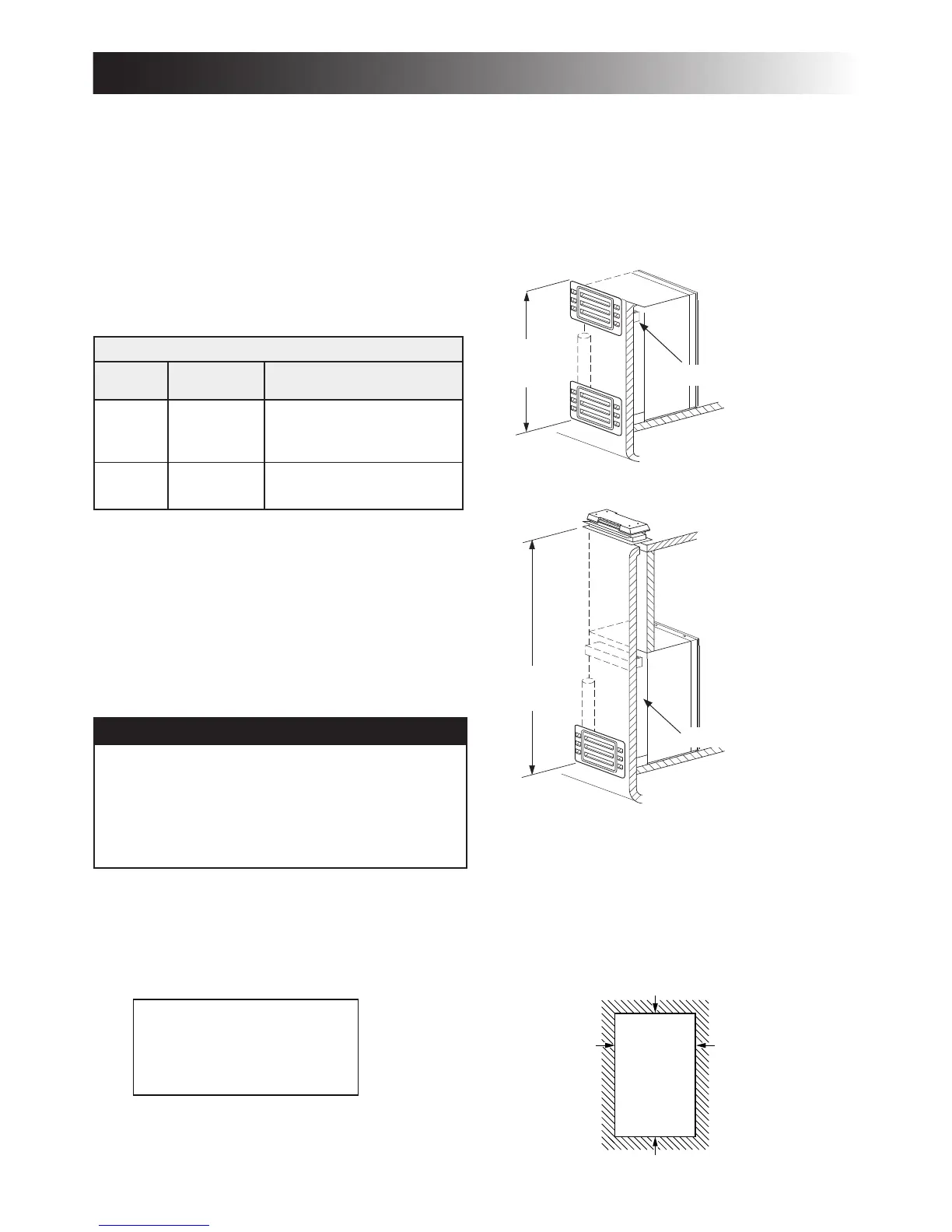

ventilation heights
It is essential that all maximum or minimum dimensions are
strictly maintained as the performance of the refrigerator is de-
pendent on adequate ow of air over the rear of the refrigerator.
For an installation with roof vent and lower side vent or double
side vent, the minimum ventilation height should be 63 inches
.
-
