Dometic RM1350M - MOUNTING THE DOOR PANELS

- 10 -

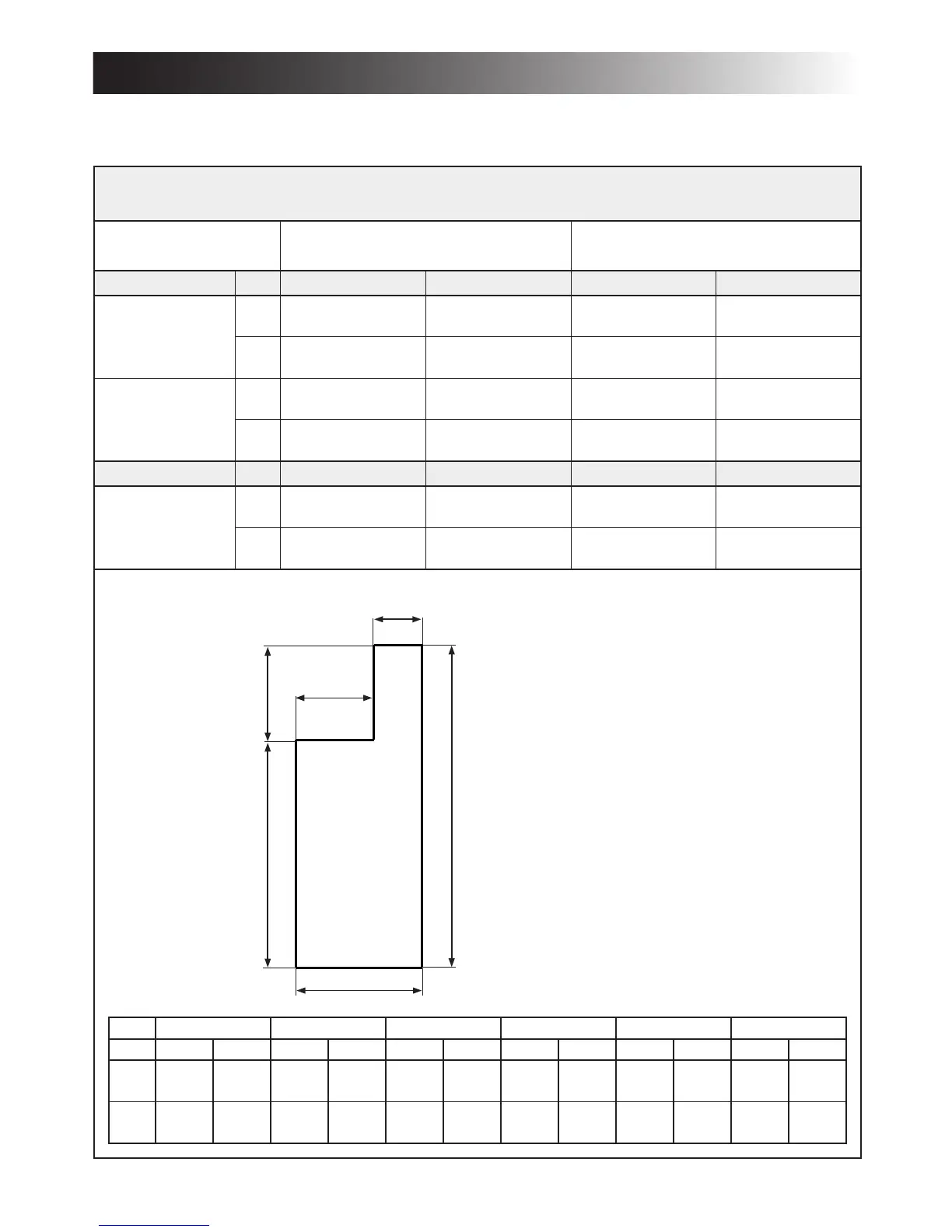

mounting the door panels
panel dimensions






RM1350M
RM1350MIM
RM1350WIM
RM1350WID (left)
inches
19-7/32 19-9/64 15-43/64 15-19/32
mm
488 486 398 396
RM1350WID (right)
inches
9-9/32 9-13/64 15-43/64 15-19/32
mm
236 234 398 396

RM1350M
RM1350MIM
RM1350WIM (right)
RM1350WID
inches
40-1/32 39-31/32 15-43/64 15-19/32
mm
1017 1015 398 396
RM1350WIM (left)
Read the instructions thoroughly and check that the panel dimensions are in compliance with those given in the table below.
f
c
d
b
a
e
a b c d e f
max min max min max min max min max min max min
inches 5-63/64 5-29/32 9-49/64 9-11/16 11-55/64 11-49/64 28-17/64 28-3/16 15-43/64 15-19/32 40-1/32 39-31/32
mm 152 150 248 246 301 299 718 716 398 396 1017 1015
