To define input functions, see Inputs on page 82.

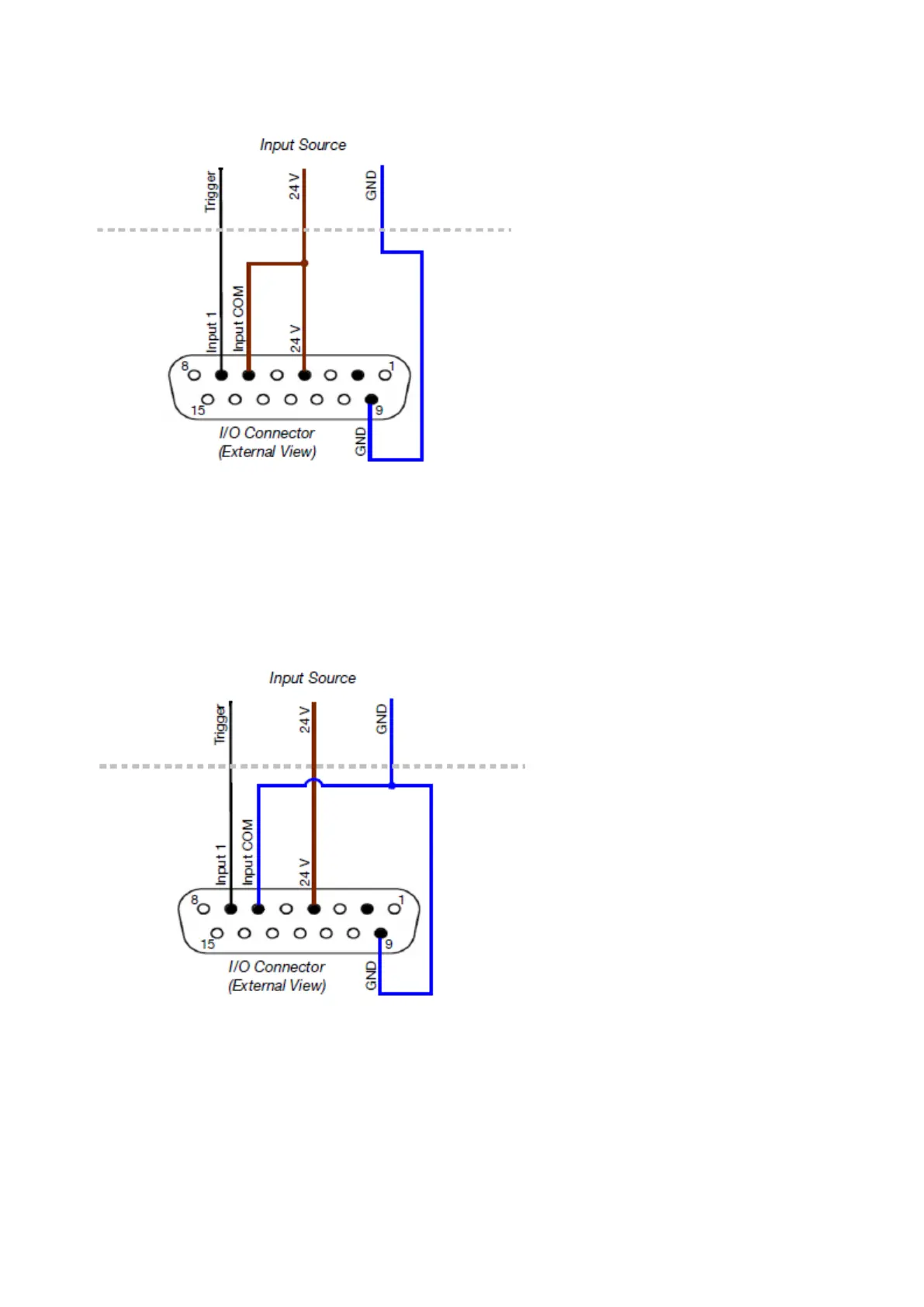

Gx-IC7 NPN Input 0 Connection
PNP Input
2 inputs are available on each of the I/O connectors. The diagram below illustrates the
connection to "Input 1" on one of the I/O connectors. The other inputs are listed see I/O
Connector Layout (Gx-IC7) on page 37.
To define input functions, see Inputs on page 82.
Gx-IC7 PNP Input 0 Connection
External Dry Contact
2 inputs are available on each of the I/O connectors. The diagram below illustrates the
connection to "Input 1" on one of the I/O connectors. The other inputs are listed see I/O
Connector Layout (Gx-IC7) on page 37
INSTALLATION
EPT053091 - Issue 5 - 07 May 2021 40
