Domino Gx150i User Manual

To define input functions, see Inputs on page 82.

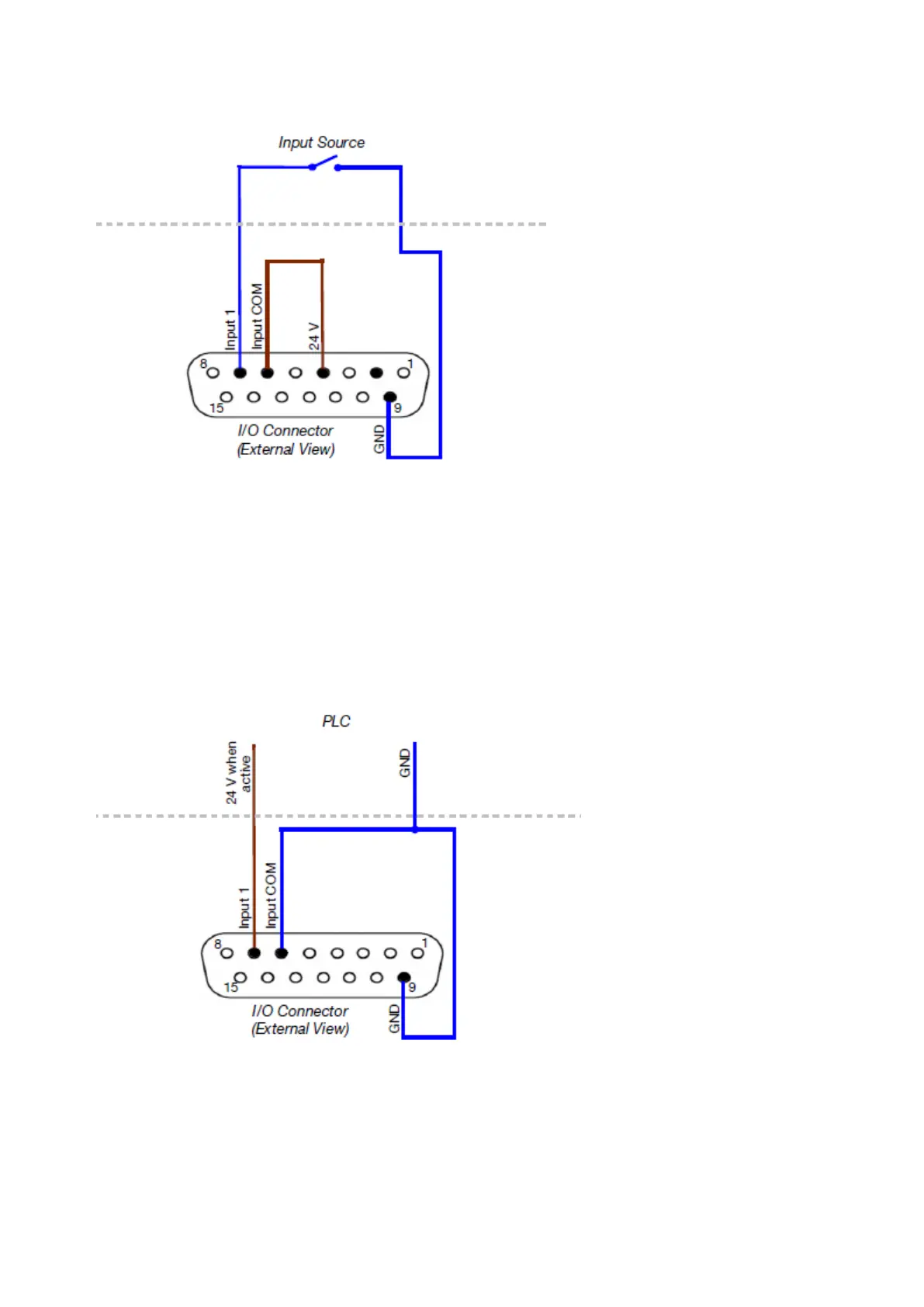

Gx-IC7 External Dry Contact
Input from PLC (24 V from PLC)
2 inputs are available on each of the I/O connectors. The diagram below illustrates the
connection to "Input 1" on one of the I/O connectors. The other inputs are listed see I/O
Connector Layout (Gx-IC7) on page 37.
The connection depends on the PLCs output type. The diagram below illustrates a 24 V input
from the PLC.
To define input functions, see Inputs on page 82.
Gx-IC7 PLC Input (24 V from PLC)
PLC Input (0 V from PLC)
2 inputs are available on each of the I/O connectors. The diagram below illustrates the
connection to "Input 1" on one of the I/O connectors. The other inputs are listed see I/O Function
Assignment on page 82.
INSTALLATION
41 EPT053091 - Issue 5 - 07 May 2021
