Installation, Operation and Maintenance manual
15
Downflo
®
Evolution
1. Place hopper discharge-side up on ground or other
level surface and attach legs to hopper.
2. Assemble leg cross braces.
3. Turn hopper and leg assembly over and lift into
position over anchor bolts.
4. Level hopper.
5. Tighten all fasteners securely, including all anchor
bolts.
Tighten all hardware before removing crane.
6. Apply sealant to hopper flange
7. Lift unit over leg and hopper assembly and lower
slowly.
8. Secure with bolts, washers, and nuts supplied.
9. Apply sealant around inlet opening.
10. Lift inlet onto collector. Secure with bolts, washers,
and nuts supllied.
Tighten all hardware before removing crane.
11. Remove crane.
12. Apply sealant to hopper/cabinet and cabinet/inlet
seam.
STEPS 1-2
STEPS 3-6
STEPS 7-9
STEP 10
Angle not to
exceed 30° from
vertical (min. 60°
from horizontal)
Do not lift with this
orientation
sealant
M8 flat washer
M8 bolt

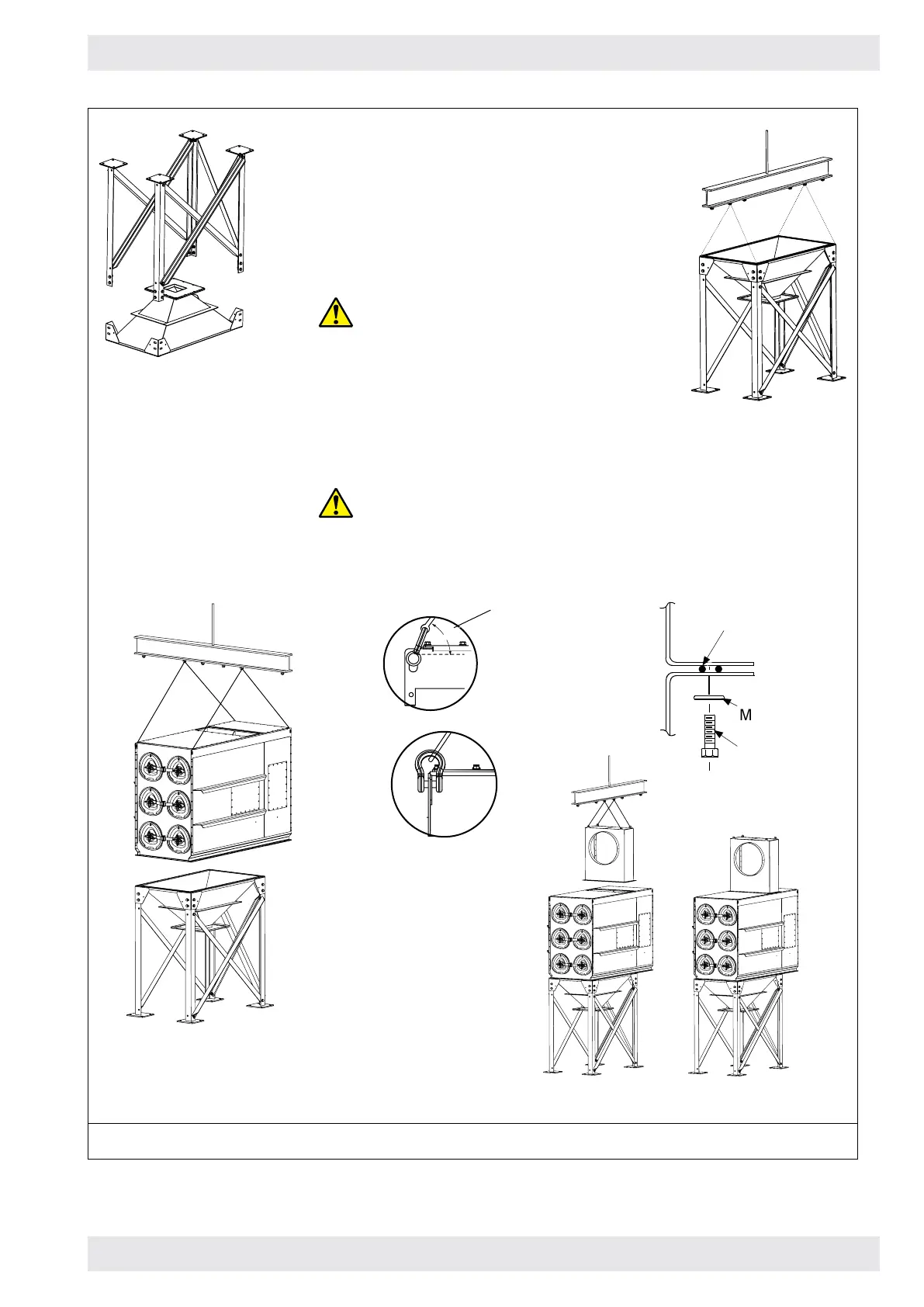

Figure 2: Typical installation
