Installation, Operation and Maintenance manual
19
Downflo
®
Evolution
Anchor should project a
minimum of 45 mm and
account for nut, washer,
base plate and shims/
grout.
Provisional anchor bolt recommendations
9. Consider Hilti HIT-HY 200 Anchor System or equivalent.
Quantity of anchor bolts should match the number of holes
provided in the base plates
10. Anchor diameter is typically 3 mm less than basebplate hole
diameter.
11. Corrosive environment or outdoor installation may require
stainless steel anchors.
Embedment depth

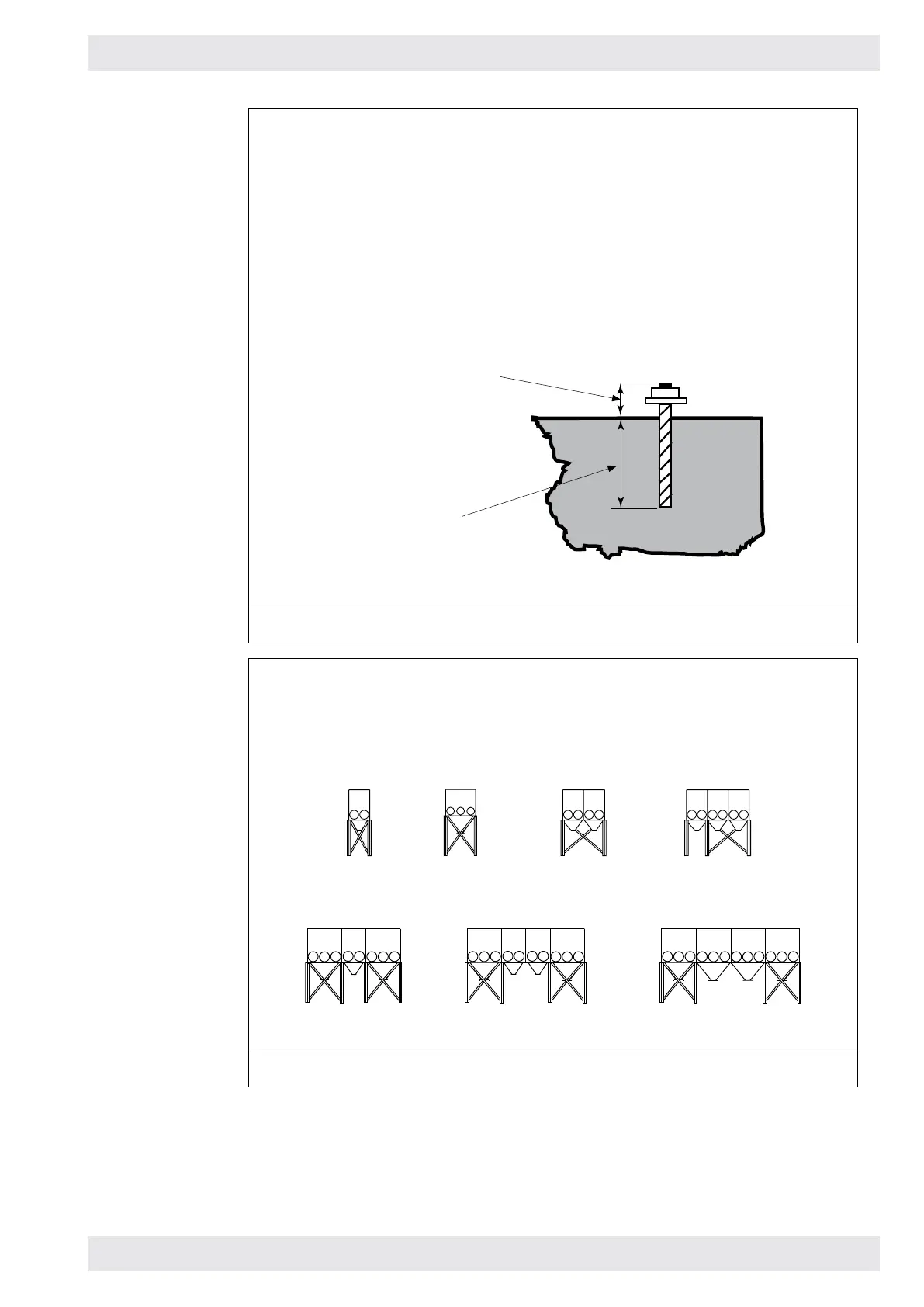

Figure 6: Typical foundation anchor
SINGLE MODULE
DFE 2-8, 3-12,
4-16 and 5-20
DFE 3-48, 4-64
and 5-80
DFE 3-60 and
4-80
DFE 3-72
DFE 2-12, 3-18,
4-24 and 5-30
DFE 3-24, 4-32,
and 5-40
DFE 3-36, 4-48,
and 5-60
DUAL MODULE 3-MODULE
Figure 7: Leg positioning
