Donaldson Downflo Evolution DFE 2-8 - Figure 8: Field Joining Detail a; Figure 9: Field Joining Detail B

Installation, Operation and Maintenance manual
21
Downflo
®
Evolution
yoke,
see Figure 10, Yoke,
venturi and filter
installation
filter access cover,
see Figure 10,
Yoke, venturi and
filter installation
clean-air
plenum

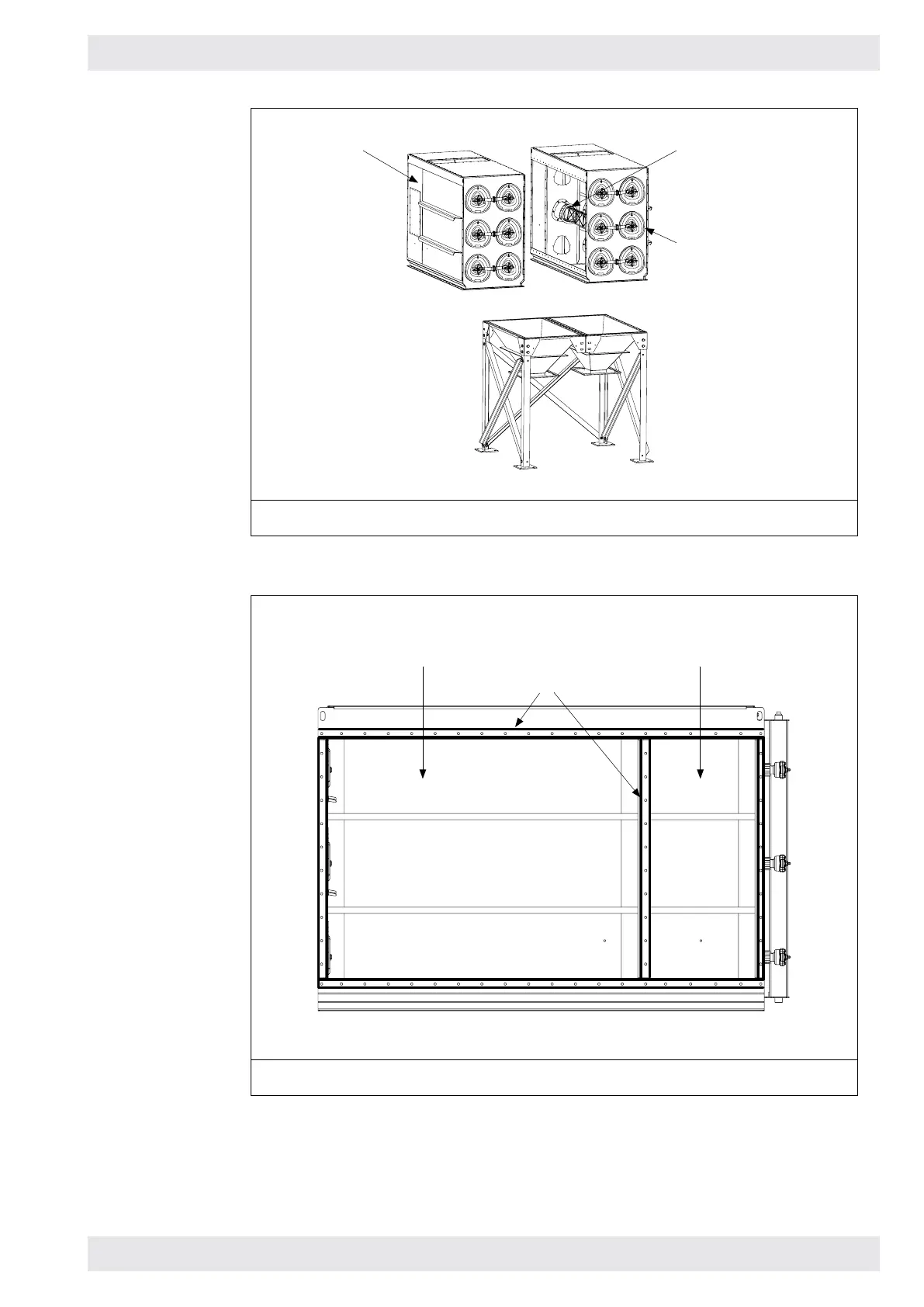

Figure 8: Field joining Detail A
7. Bolt the modules together using bolts, washers and nuts as shown in Details B
and C. Do not tighten hardware at this time.
dirty-air plenum
sealant
clean-air plenum
Figure 9: Field joining Detail B
