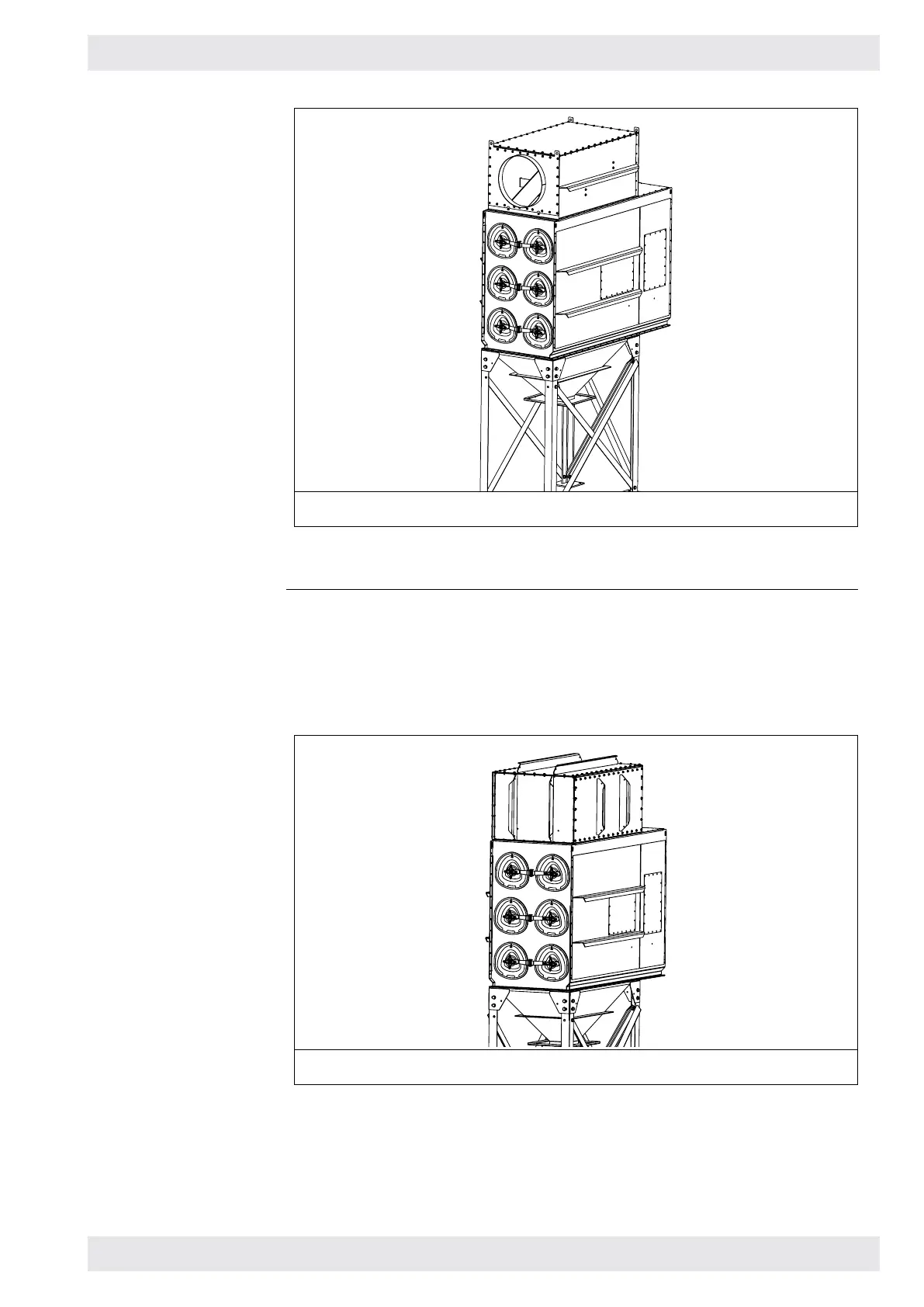

Donaldson Downflo Evolution DFE 2-8 - Extended Dirty-Air Plenum; Figure 15: High Flow Inlet Plenum; Figure 16: Extended Dirty-Air Plenum

Installation, Operation and Maintenance manual
27
Downflo
®
Evolution
Figure 15: High flow inlet plenum
Extended Dirty-Air Plenum
The extended dirty-air plenum is used in applications requiring an air management
module or when a single inlet serves multiple modules.
The extended dirty-air plenum is supplied with standard service access panels on the
sides and top of the plenum.
The top access panel is available with and without an explosion vent.
Figure 16: Extended Dirty-Air plenum
